Horizontal cooling mixer

Ensure consistent batch temperatures and reduce production costs with this robust cooling mixer, designed to optimize heat transfer and streamline post-mixing processes.

Cools and Homogenizes Rubber, Food, Plastics, Chemicals

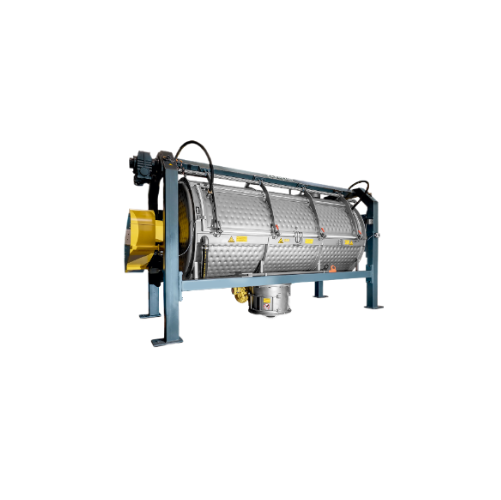

The HC horizontal cooler ZSD from Zeppelin Systems is a stainless steel cooling mixer designed to optimize heat transfer in industries such as rubber and tire, food, plastics, and chemicals. Its double-jacketed mixing bowl with a pillow-plate design ensures efficient cooling by facilitating high material turbulence and excellent heat dissipation. This system ingeniously integrates with production lines, particularly for cooling rubber compounds, PVC compounds, bakery mixes, and confectionery bases, ensuring even dry-blend temperatures for downstream processes.

With its ability to handle batch, high-speed, and continuous operations, the HC horizontal cooler ZSD enhances production capacity by maintaining a consistent and homogeneous temperature throughout the product. The robust two-arm paddle tool minimizes abrasion and lump formation, ensuring product quality is preserved. It features a highly accessible cover for quick cleaning and formulation changes, reducing downtime.

Stainless steel construction and pressure-resistant cooling water circulation bolster its durability while providing process safety, preventing corrosion and ensuring ease of maintenance. The multi-chamber design eliminates the risk of deposits, enhancing system reliability. Smaller frame size reduces investment costs, and a bevel gear drive facilitates long-lasting and quiet operation.

The HC horizontal cooler ZSD is engineered for easy automation and integration, featuring a strong bearing setup and a flexible design that accommodates varying processing needs. Its robust frame relieves pressure on both the vessel and tool shaft, ensuring vibration-free operation, while the high-reliability tool shaft and low-maintenance design offer cost-effective, long-term operation.

Benefits

  • Enhances production efficiency by ensuring uniform product cooling and temperature consistency.
  • Reduces maintenance costs and downtime with easy-to-clean design and low-maintenance components.
  • Supports integration into existing production lines through compact design and automated capabilities.
  • Lowers operational expenses by reducing installation costs and energy consumption.
  • Ensures product quality by eliminating contamination risks and minimizing wear on processing materials.

General


Applications
Chemical industry,Plastics,Food industry,Rubber and tire industry
End products
Pe granules,Confectionery bases,Rubber compounds,Tire treads,Plasticizers,Color masterbatches,Chemical additives,Bakery mixes,Pvc compounds
Steps before
Heating Mixing,Pre-heating,Ingredient Mixing
Steps after
Batch Transferring,Final Cooling,Packaging
Input ingredients
raw materials,heated materials,mixing ingredients
Output ingredients
cooled batch,homogeneous dryblend,cooled materials
Market info
Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.

Technical Specifications


Mixing Bowl Material
Stainless steel
Cooling Performance
Double-jacketed pillow-plate design
Water Supply Lines Material
Stainless steel
Water Pressure
Increased for higher throughput
Frame Size
Smaller for lower investment
Output Capacity
Enhanced by pressure-resistant cooling circulation
Mixing Tool Design
Two-arm paddle for quiet operation
Drive
Bevel gear,strong bearing
Bearing
Optimal arrangement with automatic lubrication
Frame Design
For quiet operation,no vibration
Tool Shaft Material
Stainless steel
Shaft Seal
Split design,low-maintenance
Cover Accessibility
Good,for easy cleaning
Outlet Design
Dead-space-free,low height
Cooling Water Circulation
Pressure-resistant

Operating Characteristics


Cooling mechanism
Pressure-resistant cooling water circulation
Batch vs. continuous operation
Batch
Automation level
Manual / PLC
Cleaning method
Easy cleaning / Manual
Energy efficiency
Optimized for reduced production costs

Material Compatibility


Abrasion resistance
High
Cleanability
Easy cleaning
Corrosive resistance (e.g. acids)
Stainless steel construction
Biological compatibility
Food safe
Density/particle size
Suitable for variable densities

Physical Characteristics


Footprint
Compact
Mixing container material
Stainless steel
Mixing container design
Double-shell jacket in multi-chamber design
Cooling tool design
Two-arm paddle
Cover opening size
Large for easy cleaning
Outlet design
Dead-space-free
Frame design
Smaller for lower investment
Tool shaft material
Stainless steel
Water supply line material
Stainless steel
Seal type
Flexible and tight

Custom Options


Material of Construction
Stainless steel
Cooling Jacket Type
Double-shell jacket in multi-chamber design
Mixing Tool Design
Two-arm paddle cooling tool
Shaft Design
Solidly designed stainless steel shaft
Bevel Gear Drive Design
Robust,flexible design
Pneumatic Cabinet
For controlling vents
