Homogenizer for low to medium viscosity media
Achieve uniform mixing and prevent air entrapment in low to medium viscosity products with an advanced, energy-efficient stirring solution, ensuring optimal product quality and reduced processing times.
Homogenizes and Mixes Viscous Liquids Efficiently

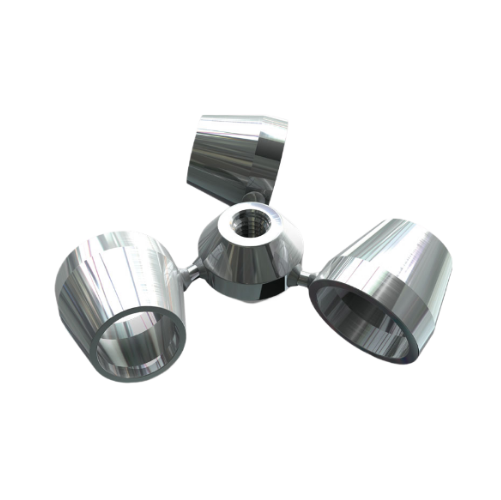

The VISCO JET® CLASSIC from VISCO JET Rührsysteme GmbH is a premier mixer designed for precise homogenization of low to medium-viscosity liquids across various industries, including food and beverage, paints, adhesives, pharmaceuticals, and chemicals. Its hallmark conical stirring element generates dynamic mixing movements, optimizing laminar flow and minimizing air integration and foaming. This ensures high product quality with reduced processing times and energy consumption.
The mixer is adaptable to both batch and continuous operations and integrates effortlessly with existing production lines, incorporating optional automation capabilities, including PLC controls for enhanced process management. Constructed from durable materials, such as stainless steel 1.4301, 1.4404, or 1.4571, it offers corrosion resistance suitable for rigorous industrial environments.
Customization options include multiple stirring configurations and diameters up to 2,000 mm, as well as advanced material choices like Superduplex or Hastelloy for specific chemical requirements. Maintenance is simplified with an integrated CIP system, supporting fast and effective cleaning without downtime. This equipment not only meets the stringent standards of various industries but also provides sustainable operational efficiencies through reduced wear and energy demands.
Benefits
- Enhances product quality by preventing air entrapment and reducing foaming.
- Reduces energy consumption and maintenance costs with optimized stirring dynamics.
- Offers flexibility in processing by integrating with various production line configurations.
- Ensures fast and efficient cleaning, reducing downtime, with an integrated CIP system.
- Customizable materials and designs provide durability in corrosive environments.
- Applications
- Chemicals,Coatings,Food and beverage,Adhesives,Paints,Pharmaceuticals
- End products
- Emulsified beverages,Sauces,Epoxy coatings,Pharmaceutical suspensions,Wall paints,Fruit purees,Detergents,Polymer solutions,Cosmetics emulsions,Dressings,Varnishes,Industrial adhesives
- Steps before
- Mixing preparation,Ingredient loading,Pre-dispersion,Raw material inspection
- Steps after
- Homogenization,Quality control,Filling,Packaging
- Input ingredients
- niedrigviskose Medien,mittelviskose Medien,Lebensmittel,Getränke,Farben,Lacke,Klebstoffe,Pharma,Chemie
- Output ingredients
- homogenisierte Produkte,konstante Produktqualität,produkt- und umweltschonende Lösungen
- Market info
- Visco Jet Ruhrsysteme is known for manufacturing advanced mixing and stirring equipment, particularly industrial agitators, which are engineered-to-order for various industries. Their expertise lies in efficient and tailored mixing solutions with a strong reputation for innovation and quality.
- Viscosity Range
- up to 30,000 mPas
- Rührorgan Diameter
- up to 2,000 mm
- Material
- Stainless Steel 1.4301,1.4404,1.4571
- Special Coating Option
- Available
- Execution Type
- 2-fach or 3-fach
- Cleaning Method
- CIP System
- Working mechanism
- Conical stirring mechanism
- Integrated steps
- Homogenization
- CIP principles
- Integration of CIP system
- Batch vs. continuous operation
- Batch
- Air incorporation control
- Foam prevention
- Energy efficiency
- Low energy requirement
- Abrasion resistance
- Yes
- Cleanability
- CIP / Easy Clean
- Corrosive resistance (e.g. acids)
- Stainless Steel 1.4301,1.4404,1.4571
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Rührorgankonengausführung
- 2-fach oder 3-fach
- Standard Rührorgan Durchmesser
- Bis zu 2,000 mm
- Individuelle Größen
- Auf Anfrage
- Material
- Edelstahl 1.4301,1.4404,1.4571
- Optionale Materialien
- Superduplex,Hastelloy
- Beschichtung
- Individuelle Beschichtungen für lange Lebensdauer
- Oberflächenausführung
- Geschliffen mit Ra < 0.8 µm oder < 0.4 µm
- Version
- Tornado Version für IBC Container
- Rührorgankonfiguration
- 2-fach oder 3-fach
- Rührorgan Durchmesser
- Bis zu 2.000 mm
- Material
- Edelstahl 1.4301 / 1.4404 / 1.4571
- Optionale Lösungen
- Tornado Version,Anpassungen je nach Kundenanforderung (Superduplex,Hastelloy)
- Beschichtung
- Individuell,extrem lange Lebensdauer
- Oberflächenrauhigkeit
- geschliffene Ausführung mit Ra < 0,8 μm oder < 0,4 μm
- Kombinierbarkeit
- Mit allen VISCO JET® Rührwerkslösungen
