High volume dissolution tester for pharmaceutical research
Achieve precise dissolution testing of tablets across two batches simultaneously, ensuring consistent pharmaceutical quality and compliance, with an intuitive system designed for seamless integration into your laboratory operations.
Performs High-Volume Dissolution Testing

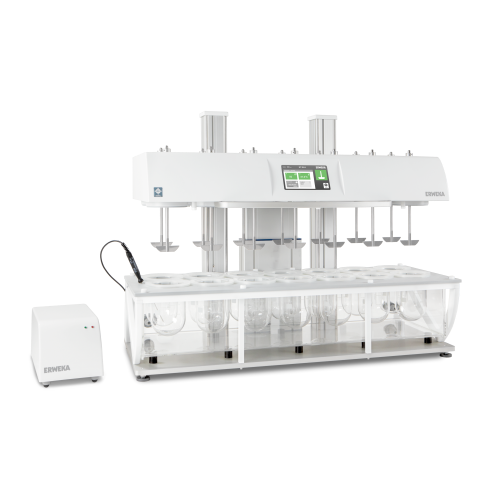

The DT 9510 Series from ERWEKA is a cutting-edge digital dissolution tester designed for high-volume applications in pharmaceutical and biopharmaceutical labs. This series stands out with its capacity to accommodate up to 14 test stations, all driven by a powerful single motor, ensuring consistent and reliable dissolution results. It features an embedded PC for precise control, and a robust water bath for maintaining stable temperatures, crucial for accurate testing and comparison of tablet batches. Applications include testing of pharmaceutical tablets, nutraceuticals, and vitamins, with typical end products like paracetamol and vitamin C tablets. The DT 9510 is fully compliant with USP/EP/JP standards and supports methods 1, 2, 5, and 6. Its intuitive touch interface and TestAssist guide streamline operations, while the AirLift system facilitates safe and easy handling of the dissolution head. Designed to integrate seamlessly into digital, semi-automatic workflows, it offers unlimited upgradeability to adapt to future production demands, enhancing operational efficiency and flexibility.
Benefits
- Enhances testing efficiency with high-capacity, simultaneous multi-station operation.
- Ensures precise and reliable results through stable temperature control.
- Adapts to evolving needs with seamless upgradeability and modular design.
- Minimizes operator risk with intuitive AirLift system and two-hand safety mechanism.
- Guarantees compliance with industry standards, ensuring quality assurance and regulatory acceptance.
- Applications
- Vitamins,Supplements,Pharmaceutical tablets,Nutraceuticals,Biopharmaceuticals
- End products
- Ibuprofen tablets,Omega-3 softgels,Vitamin c tablets,Probiotic capsules,Herbal supplements,Multivitamin tablets,Calcium tablets,Paracetamol tablets
- Steps before
- Media Preparation,Sample Collection,Tablet Formation
- Steps after
- Automatic Sampling,UV-Vis Analysis,HPLC Analysis,Data Evaluation
- Input ingredients
- tablets,samples,dissolution media
- Output ingredients
- dissolved samples,dissolution test results,analyzed data
- Market info
- ERWEKA is renowned for manufacturing high-quality pharmaceutical testing equipment, including dissolution testers, tablet hardness testers, and other analytical instruments, known for their precision and reliability in laboratory testing environments.
- Automation
- Embedded-PC Technology
- User Interface
- 7" Touch Display
- Temperature Stability
- ±0.2° C
- Test Station Capacity
- Up to 14 Stations
- Compliance
- 100% USP/EP/JP compliant
- Automation Features
- Automatic Tablet Drop,Automatic Sampling
- Safety System
- AirLift System with Two-Hand Security
- Printing Capability
- Network and USB Printers
- Evaporation Rate
- Less than 1% during 24h
- Water Bath Capacity
- 37° C,50 rpm,1000 ml
- Heating Range
- 30-45° C
- Wobble
- Less than 0.2 mm
- Upgrade Options
- Up to 14 Test Stations,Tablet Drop,Sampling Station
- Networking
- LAN and USB Printing
- Qualification
- OQ traffic light system
- Automation level
- Manual / PLC control
- Batch vs. continuous operation
- Batch
- CIP/SIP
- CIP 121°C / SIP 135°C
- Energy efficiency
- Optimized energy use
- Cleaning method
- Manual / Easy clean
- Changeover time
- Quick setup
- Parallel testing capability
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- USP Compliance
- USP methods 1,2,5,and 6
- EP Compliance
- 100% EP compliant
- JP Compliance
- 100% JP compliant
- Footprint
- Compact design
- Number of Test Stations
- Up to 14
- Touch Display
- 7-inch large display
- Water Bath
- One-piece moulded PET with outlet valve
- Lifting System
- AirLift System with two-hand security
- Paddle and Basket Availability
- For high-head and low-head mode
- Vessel Material
- Standardized for USP compliance
- Water Bath Heating Range
- 30-45° C (+/- 0.2° C)
- Wobble
- Less than 0.2 mm at delivery (paddles)
- Control panel type
- Intuitive Touch interface
- HMI Type
- 7" Touch display
- Integration possibilities
- Network printing,Upgradeable to Online/Offline Systems
- Automation level
- Upgradeable to semi-automatic system
- Lift mechanism
- AirLift System
- Modularity
- Upgradeable from 12 to 14 test stations
- Sample handling
- Optional automatic tablet drop
