High-speed strip packaging for tablets and capsules
Optimize your high-speed pouching operations with precise four-side sealing, designed to efficiently package solid products like tablets and capsules while maintaining product integrity and synchrony.
Seals and Packages Solid Products

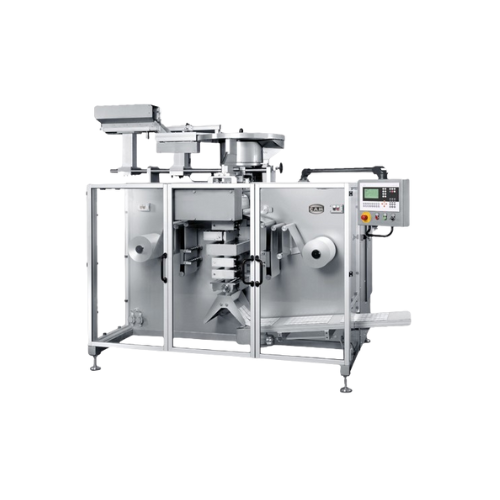

The 5000/360 from Tecnicam is a high-speed strip packaging machine engineered for pharmaceutical and nutraceutical sectors, specializing in packing tablets, capsules, and effervescent tablets. It features a vertical, four-side sealing process using heat-sealable films, enhancing production speed up to 300 cycles per minute, contingent on product size and row configuration. Tailored for diverse solid products like paracetamol and multivitamin tablets, the machine supports continuous operation with seamless integration into existing lines through various optional devices such as coding systems and perforation tools. Compact with a cantilever design, the 5000/360 facilitates easy accessibility for maintenance and cleaning, ensuring compliance with GMP regulations. It incorporates separate temperature controls for precision sealing, contributing to efficient energy use while maintaining product integrity. Customization options are available to meet specific production requirements, backed by robust engineering support.
Benefits
- Enhances production efficiency with speeds up to 300 cycles per minute.
- Streamlines maintenance through easy access provided by the cantilever design.
- Ensures product quality with precise temperature controls for consistent sealing.
- Offers flexibility with customization options for diverse pharmaceutical products.
- Complies with GMP standards, ensuring suitability for regulated industries.
- Applications
- Supplements,Capsules,Pharmaceutical tablets,Effervescent tablets
- End products
- Fish oil supplements,Ibuprofen capsules,Vitamin c effervescent tablets,Calcium supplements,Multivitamin tablets,Paracetamol tablets
- Steps before
- Tablet production,Capsule production,Effervescent tablet production,Film unwinding preparation,Product infeed preparation
- Steps after
- Packing,Product-in-pouch control,Outfeed conveyance,Grouping on outfeed belt,Line integration
- Input ingredients
- tablets,capsules,effervescent tablets,heat-sealable films,cellophane,aluminum,coated paper,laminates
- Output ingredients
- sealed pouches,strip packaging,airtight packets
- Market info
- CAM Packaging is known for its expertise in designing and manufacturing advanced packaging machinery tailored to client specifications, with a strong reputation for reliability and innovation in the engineered-to-order equipment market.
- Machine Speed
- Up to 300 cycles/min
- Number of Product Rows
- Up to 12 rows
- Sealing Type
- Four-side sealing/pouching
- Foil Width Range
- Depends on product and production speed
- Material Compatibility
- All heat-sealable films (excludes pure polyethylene)
- Additional Components
- Longitudinal and cross perforation,coding,etc.
- Surface Finish
- Pharmaceutical requirements compliant
- Temperature Control
- Separate controls for sealing rollers
- Cantilever Structure
- For easy access and maintenance
- Changeover
- Easy and quick changeover
- Guarding
- Complete machine guarding
- Film Unwinding Unit
- With foil tension control
- Product Infeed Unit
- Oriented and synchronized feed
- Integration Capability
- Line integration and interfacing available
- Automation level
- Manual / PLC
- Batch vs. continuous operation
- Batch / Inline Continuous
- Changeover time
- Quick changeover
- CIP/SIP
- Manual cleaning
- Energy efficiency
- Not specified
- Cleaning method
- Manual
- Film unwinding,tension control
- Automatic
- Temperature and pressure setting
- Easy control
- Sealing speed
- Up to 300 cycles/min
- Heat sealable film compatibility
- Yes (excluding pure polyethylene)
- Security,accessibility
- Cantilever structure
- Heat-sealable films
- Cellophane,aluminum,coated paper,laminates
- Exclusion material
- Pure polyethylene
- Seal strength
- Applicable to heat-sealable materials
- Corrosive resistance (e.g. acids)
- Compliance with GMP
- Machine footprint
- Compact design
- Format parts
- Easy and quick changeover
- Structure Type
- Cantilever
- Film Unwinding Unit
- Equipped with foil tension control system
- Control panel type
- Synchronized control
- Integration possibilities
- Line integration with up or downstream machines
- Format parts changeover
- Easy and quick changeover
- Temperature and pressure setting
- Easy adjustment
- Optional devices
- Perforation,opening slot,hole punching,coding
- Product-in-pouch control
- Available
- Film unwinding unit with tension control
- Equipped
- Customization possibilities
- Requirements upon request
