High-speed Map packaging for fresh food products

Ensure product freshness and safety with robust, high-speed packaging that delivers hermetic seals in a modified atmosphere, crucial for maintaining quality and extending shelf life in demanding food production environments.

Wraps and Seals Food Products Airtight

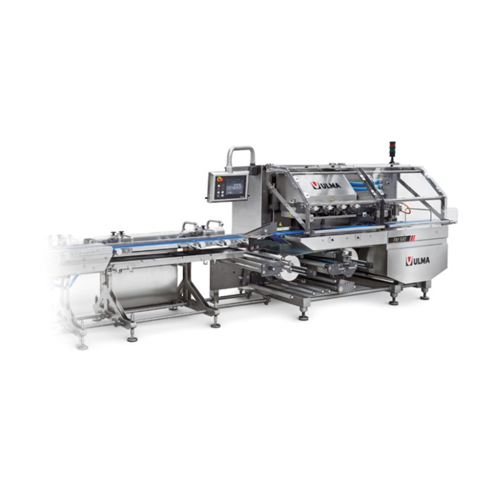

The FM 500 Flow Pack Wrapper from ULMA Packaging specializes in creating hermetically sealed packages for diverse food products like sliced ham, cheddar cheese blocks, and ready meals. Equipped with an LD cross sealing head, the FM 500 ensures airtight seals at high speeds, with capabilities reaching up to 250 products per minute. This horizontal flow wrapper excels in applications requiring Modified Atmosphere Packaging (MAP), crucial for maintaining product freshness in the meat, cheese, and baked goods industries.

The FM 500 operates through an electronically synchronized system featuring independent servomotors, enhancing precision in packaging processes. Its stainless steel frame and open frame infeed system allow for easy cleaning, essential in hygiene-sensitive environments. Integrated with a 10″ HMI touchscreen, the machine facilitates user interaction and seamless integration into automated production lines via Ethernet connectivity for data acquisition and control.

Available configurations include top and bottom reel versions and compatibility with various films, such as laminated barrier and shrink films. Optional features like the inline residual oxygen analyzer and automatic reel change system further boost operational efficiency. Constructed for robustness and reliability, the FM 500 meets the rigorous standards of continuous, high-speed operations demanded by food packaging companies.

Benefits

  • Enhances product freshness and safety with airtight Modified Atmosphere Packaging (MAP).
  • Boosts production efficiency by handling up to 250 products per minute.
  • Minimizes cleaning time with an easy-to-clean, rustproof stainless steel design.
  • Improves operational integration through Ethernet connectivity for data-driven production management.
  • Increases packaging reliability with precise, electronically synchronized servomotor control.

General


Applications
Ready meals,Baked goods,Meat,Confectionery,Cheese
End products
Baguette bread,Chocolate bars,Croissants,Lasagna ready meal,Cheddar cheese blocks,Sliced ham
Steps before
Product handling,Product sorting,Product loading
Steps after
Final packaging,Quality inspection,Distribution
Input ingredients
fresh food,meat,cheese,ready meals,baked goods,packaging film
Output ingredients
hermetic pillow pack,MAP packaging,sealed packaging
Market info
ULMA Packaging Spain is renowned for designing and manufacturing innovative, customized packaging solutions for the food, pharmaceutical, and non-food industries, emphasizing advanced automation technology, sustainability, and high-quality service.

Technical Specifications


Packaging Speed
Up to 250 products/min
Type of Sealing
Hermetic three-seal pillow pack
Control System
Industrial PC with 10" HMI touchscreen
Cross Sealing Head
Long Dwell
Frame Material
Stainless Steel
Film Compatibility
Various films including laminated and barrier shrink films
Infeed System Design
Washable "Open Frame"
Sealing Time
Long (due to Long Dwell head)
Pneumatic Features
Reel fastening system
Data Connectivity
Ethernet connection for data acquisition
Automation
Independent servomotors,PLC-controlled

Operating Characteristics


Automation level
Industrial PC with HMI touchscreen
Sealing method
Long Dwell sealing head
Batch vs. continuous operation
Continuous
Cleaning method
Washable "Open Frame" design
Energy efficiency
Designed for high-efficiency operations
Maximum operating speed
250 products/min
Hygiene design
Rustproof and waterproof construction
Control panel type
10" colour touchscreen
Product compatibility
Meat,cheese,ready meals,baked goods

Material Compatibility


Cleanability
Washable "Open Frame" design
Corrosive resistance (e.g. acids)
Stainless steel frame
Rust resistance
Highly rustproof elements

Physical Characteristics


Machine footprint
Compact and robust design
Frame material
Stainless steel
Control panel type
10" HMI touchscreen
Sealing head type
Long Dwell cross sealing head
Infeed system
Washable "Open Frame" design
Reel holder
Front-loading with pneumatic fastening

Custom Options


Control panel type
10" HMI touchscreen
Reel holder type
Pneumatic reel fastening system
Sealing head type
LD (Long Dwell) cross sealing head
Material Compatibility
Versions for different films (laminated barrier films,BDF barrier shrink films,etc.)
Connectivity
Ethernet connection for data acquisition,VNC,production control systems
Film roll loading
Front-loading reel holder
Reel change system
"Easy-Tape" system for automatic reel change
Infeed system
Washable "Open Frame" design
Machine frame material
Stainless steel
