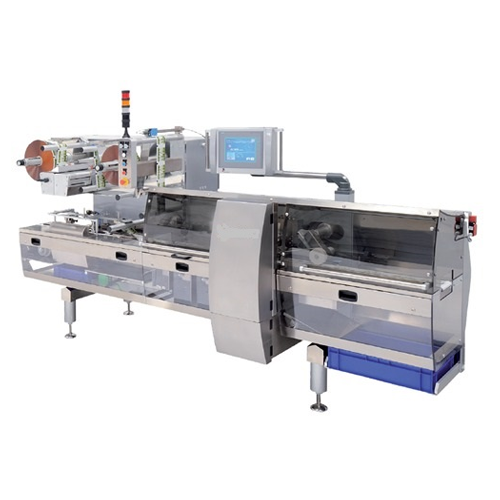

High speed horizontal flow wrapper for food products
Achieve precise, high-speed packaging for snacks with this versatile horizontal flow wrapper, ensuring continuous wrapping operations for efficient production lines.
Efficiently Flow Wraps and Packs Solid Food Products
The CF 1000 from ACMA is a high-speed horizontal flow wrapper designed specifically for the food industry, offering unparalleled efficiency in packaging solid products such as cookies, granola bars, and chocolate biscuits. Operating on a continuous flow principle, it ensures a seamless and consistent packing process, capable of reaching up to 1000 packs per minute. The CF 1000 integrates effortlessly into existing production lines with its PLC-controlled system, allowing for precise control and easy product changeovers in just 5 to 25 minutes. It maximizes throughput while maintaining low energy consumption through optimized motor control. This equipment uses heat seal materials to create secure, pillow-type packs, handling a wide range of product sizes with adjustable parameters for different packaging needs. Its robust construction supports long service life, requiring minimal maintenance, and it is equipped to meet stringent hygiene standards, making it an optimal choice for food manufacturers aiming to enhance their packaging efficiency.
Benefits
- Maximizes production speed with up to 1000 packs per minute.
- Enhances efficiency with quick product changeovers in 5 to 25 minutes.
- Integrates easily into existing lines with a continuous flow operation.
- Lowers energy costs through optimized motor control systems.
- Ensures product safety and hygiene with heat seal packaging materials.
- Applications
- Baked goods,Biscuits,Bars,Crackers,Chocolate
- End products
- Wafer biscuits,Cookies,Energy bars,Granola bars,Shortbread,Milk chocolate bars,Brownies,Saltines,Protein bars,Chocolate biscuits
- Steps before
- Mixing,Batch preparation,Measuring ingredients,Conveying,Forming
- Steps after
- Cartoning,Palletizing,Quality control,Labeling,Storage
- Input ingredients
- baked goods,biscuits,crackers,chocolate,bars
- Output ingredients
- pillow pack
- Market info
- ACMA (Coesia Group) is known for its expertise in designing and manufacturing packaging equipment for consumer goods, focusing on innovative and efficient machinery solutions for markets like confectionery, soap, tea, and coffee, with a strong reputation for reliability and quality.
- Speed
- 1000 ppm
- Film speed
- 100 m/min
- Max speed
- 100 m/min
- Operating mode
- Continuous
- Product changeover time
- 5 - 25 mins
- Size changeover time
- 5 - 25 mins
- Packaging material
- Heat seal materials
- Packaging type
- Pillow pack
- Max product height
- 100 mm
- Min product height
- 5 mm
- Max product length
- 200 mm
- Min product length
- 30 mm
- Max product width
- 170 mm
- Min product width
- 15 mm
- Max reel diameter
- 400 mm
- Max reel core diameter
- 76 mm
- Min reel core diameter
- 70 mm
- Footprint - Machine depth
- 1250 mm
- Footprint - Machine height
- 1700 mm
- Footprint - Machine length
- 3500 mm
- Weight
- 1800 kg
- Automation level
- Continuous
- Changeover time
- 5 - 25 mins
- Batch vs. continuous operation
- Continuous
- Machine depth
- 1250 mm
- Machine height
- 1700 mm
- Machine length
- 3500 mm
- Machine weight
- 1800 kg
- Product range - Max product height
- 100 mm
- Product range - Min product height
- 5 mm
- Product range - Max product length
- 200 mm
- Product range - Min product length
- 30 mm
- Product range - Max product width
- 170 mm
- Product range - Min product width
- 15 mm
- Packaging material width
- 400 mm
- Max reel diameter
- 400 mm
- Max reel core diameter
- 76 mm
- Min reel core diameter
- 70 mm
