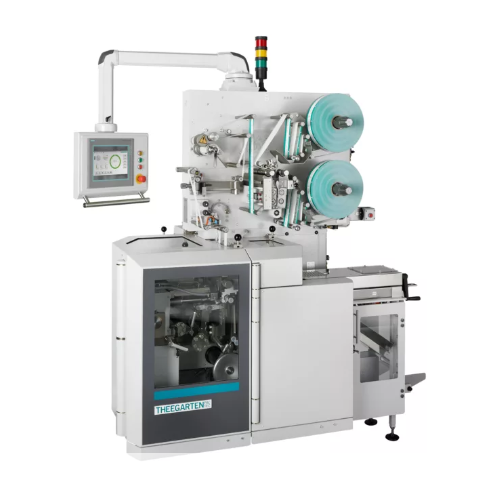

High speed forming, cutting, and wrapping for side fold packaging with comic strip

Maximize your output with high-speed efficiency by seamlessly forming, cutting, and wrapping products in innovative side fold packaging that integrates a dynamic comic strip, enhancing consumer engagement while maintaining product integrity.

Forms, Cuts, and Wraps Confectionery Products

The U1-EFC from Theegarten-Pactec is a high-speed side fold packaging machine designed for the confectionery and food packaging sectors, merging efficiency with versatility. Distinguished by its ability to seamlessly form, cut, and wrap products such as soft caramels, chocolates, and jelly products, it integrates into continuous production lines. With a capacity of 1,000 wrapped products per minute, it ensures reliability for high-volume operations. The U1-EFC accommodates varying product characteristics and packaging requirements, including a unique comic strip inner wrapper feature. Engineered for energy efficiency, it optimizes motor control, reducing consumption while maintaining output. Constructed with robust materials, it offers long-lasting performance and minimized maintenance demands. Furthermore, customizable settings allow adaptation to specific production needs, supported by comprehensive engineering assistance from Theegarten-Pactec.

Benefits

  • Achieves high-volume output with 1,000 wrapped products per minute, boosting production efficiency.
  • Integrates unique packaging features like comic strip inner wrappers, enhancing product differentiation.
  • Reduces energy consumption through optimized motor control, lowering operational costs.
  • Offers customization to adapt to diverse product characteristics and packaging needs, ensuring flexibility.
  • Provides robust construction and minimal maintenance for long-term reliability and reduced downtime.

General


Applications
Chewy sweets,Soft caramels,Bouillon cubes,Hard candies,Chocolates,Toffees,Bubble gum,Cereal bars,Jelly products,Effervescent tablets,Chewing gum
End products
Chicken-flavored bouillon cubes,Gummy bears,Wrapped soft caramels,Assorted bubble gum balls,Chocolate-coated cereal bars,Butter toffees,Lemon-flavored effervescent tablets,Hard peppermint candies,Chewing gum pellets,Fruit-flavored chewy sweets,Wrapped milk chocolates
Steps before
Feeding,Product shaping,Pre-forming
Steps after
Storage,Distribution,Final packing
Input ingredients
packaging materials,comic strips,outer wrappers
Output ingredients
wrapped soft caramels,wrapped toffees,wrapped chewy sweets,wrapped chewing gum,products with comic strip
Market info
Theegarten-Pactec is known for its expertise in manufacturing highly specialized packaging machines for small-sized confectionery products, offering innovative, flexible, and efficient solutions tailored to various customer needs in the industry.

Technical Specifications


Output Rate
1,000 products/min
Packaging Speed
High-speed
Wrapping Style
Side Fold with Comic Strip
Output Rate (Similar Machine)
600–2,000 products/min
Design
Compact
Product Types
Soft Caramels,Toffees,Chewy Sweets,Chewing Gum
Material Feeding
From one reel,separated by fixed knife

Operating Characteristics


Automation level
PLC
Changeover time
Quick changeover
Batch vs. continuous operation
Continuous
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product types
Soft Caramels,Toffees,Chewy Sweets,Chewing Gum

Physical Characteristics


Compact design
Yes
Control panel type
Not specified
Footprint
Small
Feeding method
Reel of packaging material

Custom Options


Control panel type
Touchscreen HMI
Integration possibilities
Integration with ERP/MES systems
Compact design
Yes
Output rate customization
600 to 1000 products/min
