High-speed form and seal machine for retortable food packages

Streamline your production with a machine engineered for high-speed forming and sealing of retortable food packages, ensuring seamless integration with external fillers while minimizing manual labor and operational noise.

Forms and Seals Retortable Carton Packages

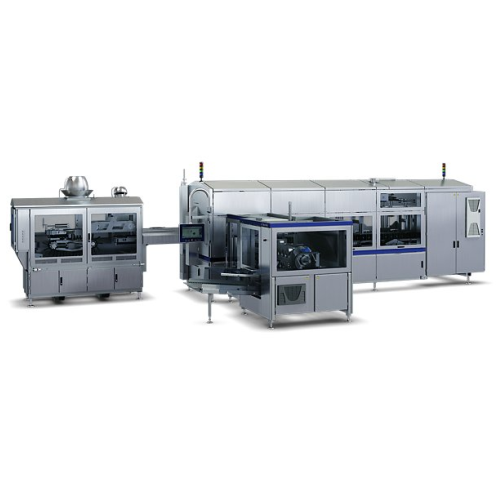

The Tetra Pak® R1, an innovation from Tetra Pak, is a highly automated form and seal machine designed to efficiently produce Tetra Recart® packages for a wide range of applications. This system is ideal for processing liquid and solid food products, such as tomato sauce, cream of mushroom soup, and pet food, into retortable carton packages.

The Tetra Pak® R1 integrates seamlessly into existing production lines, utilizing a unique transport system that ensures safe and continuous movement of packages. With a speed range adjustable between 9,000 and 24,000 packages per hour, it accommodates diverse product categories by aligning with their specific process times.

Key features include an automatic carton loader, minimizing manual intervention and allowing operators to focus on other tasks, while the induction sealing process ensures controlled, reliable sealing. Enclosed working parts reduce operational noise, creating a quieter plant environment.

Equipped with a Packaging Line Monitoring System (PLMS), it offers real-time performance insights, facilitating efficient production data analysis and continuous improvement. Customizable to fit varying operational needs, the Tetra Pak® R1 is designed to grow with your business, allowing you to easily adapt package sizes and line speeds. Constructed with durable materials, it presents a robust, future-proof solution, backed by Tetra Pak’s engineering support.

Benefits

  • Increases production efficiency with speeds of up to 24,000 packages per hour.
  • Minimizes labor costs by reducing the need for manual supervision through high automation.
  • Enhances operational silence with enclosed working parts, maintaining noise levels at 76 dB(A).
  • Improves product quality with controlled induction sealing and optional nitrogen infusion to prevent oxidation.
  • Provides in-depth production analysis and opportunities for optimization using PLMS data monitoring.

General


Applications
Soups,Ready meals,Sauces,Pet food,Vegetables,Pasta bolognese
End products
Salmon cat food,Chicken curry,Beef stew,Cream of mushroom soup,Chicken and rice meal,Fettuccine alfredo,Tomato sauce,Mixed vegetables
Steps before
Filling,Product Preparation,External Filling
Steps after
Sealing,Packaging,Carton Loading
Input ingredients
external fillers,smooth sauces,chunky soups,vegetables,ready meals,pasta bolognese,pet food
Output ingredients
Tetra Recart midi carton packages,340 ml packages,390 ml packages,440 ml packages,500 ml packages,retortable food products
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Speed
9,000 to 24,000 packages per hour
Automation
High level of automation
Noise Level
76dB(A)
Sealing Method
Induction sealing
Packaging Line Monitoring
PLMS data
Operator Interface
Intuitive touch-screen interface
Package Types Supported
Tetra Recart® Midi
Headspace Media
Steam or steam and nitrogen
Capacity
Variable line speed and package size
Carrier System
Use of external fillers

Operating Characteristics


Automation level
High (PLC-controlled)
Batch vs. continuous operation
Inline Continuous
Cleaning method
CIP / Manual
Changeover time
Quick format change capability
Multiple speed operation
Variable speed (9,000 to 24,000 packages per hour)
Smart operations
Operator-friendly setup with intuitive interface

Material Compatibility


Corrosive resistance (e.g. acids)
High resistance to acidic food ingredients
Biological compatibility
Suitable for food-grade materials
Cleanability
Designed for easy cleaning and maintenance
Abrasion resistance
Durable under high-speed operations
Density/particle size
Compatible with smooth sauces and chunky soups

Physical Characteristics


Carton size
340 ml,390 ml,440 ml,500 ml
Discharge method
Automated form and seal
Control panel type
Touch-screen interface
Compact footprint
Yes
Carrier system
External fillers compatible
Encased working parts
Metal casing

Custom Options


Control panel type
Touch-screen interface
Integration possibilities
External fillers integration
Speed variability
9,000 to 24,000 packages per hour
Operator interface
Intuitive touch-screen interface
