High-speed capsule filling system

Maximize production efficiency with high-speed capsule filling designed for precise dosing and seamless integration into your existing lines, ensuring consistent quality and output up to 960 capsules per minute.

Fills and Processes Capsules at High Speed

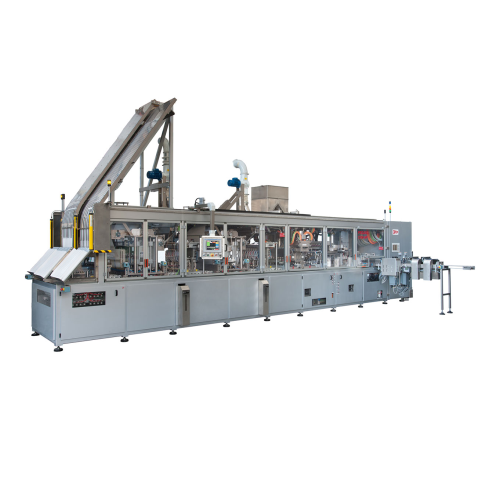

The PEGASO CR-8+8P encapsulator from Opem is designed to meet the high-speed demands of the food and beverage industry, particularly for coffee and nutraceutical capsules. This system is unique due to its lineal configuration with a double index, providing a robust solution for operations requiring continuous and reliable precision filling. The powerful cam shaft mechanics are housed in the lower part of the unit, enhancing stability across multi-shift operations.

With a throughput of up to 960 capsules per minute, it efficiently processes solid, powder, and granular products into various capsule types, including espresso, lungo, decaf coffee, and a range of supplements and vitamins. The machine seamlessly integrates into existing lines, featuring random feeding, denesting, and screw dispensing driven by brushless servo motors. An in-line weight control system ensures filling accuracy within ± 0.2g, with automatic feedback adjustments and rejection of out-of-tolerance capsules.

The system supports PLC-controlled automation for enhanced operational efficiency and offers engineering customization to fit specific production requirements. Its sturdy build delivers long-term durability, making it a cost-effective filling solution for capsule production facilities.

Benefits

  • Increases production efficiency with a high output of up to 960 capsules per minute.
  • Ensures consistent product quality through precise filling and in-line weight control.
  • Minimizes operational downtime with robust mechanics designed for continuous multi-shift use.
  • Supports seamless integration into existing production lines due to customizable configurations.
  • Reduces labor costs with automated, PLC-controlled operations.

General


Applications
Pharmaceutical capsules,Supplements,Vitamins,Nutraceuticals,Coffee capsules,Capsules
End products
Lungo coffee capsules,Omega-3 fish oil capsules,Vitamin d capsules,Herbal extract capsules,Probiotic capsules,Espresso capsules,Multivitamin supplements,Decaf coffee capsules
Steps before
Capsule production,Capsule sorting,Ingredient preparation,Material feeding
Steps after
Capsule packing,Quality control,Batch labeling,Storage
Input ingredients
empty capsules,stacked capsules
Output ingredients
filled capsules,960 capsules/minute
Market info
Opem specializes in designing and manufacturing customized packaging machinery, particularly for the food and beverage industries. They are known for their innovative, high-quality, engineered-to-order systems that emphasize advanced technology and precision.

Technical Specifications


Capsule filling speed
Up to 960 capsules/minute
Filling accuracy
±0.2g
Automation
Brushless servo motor,In-line weight control,Feedback adjustment
Mechanical Construction
Sturdy,Durable
Feeding system
Random feeding,Denester for stacked capsules
Capsule rejection
Out-of-tolerance rejection
Cam shaft
Powerful,located in unit's lower part

Operating Characteristics


Working mechanism
Lineal with double index
Capsule feeding system
Random feeding
Denester
For stacked capsules
Dispenser drive type
Brushless servo motor
Filling precision
± 0.2g
Weight control
In-line with feedback adjustment
Rejection system
Out-of-tolerance capsules

Product type Characteristics


Filling purpose
Capsule filling

Physical Characteristics


Discharge method
Denester for stacked capsules
Feeding system
Random feeding
Precision filling
± 0.2g
Control type
Brushless servo motor

Custom Options


Control panel type
HMI/PLC
Integration possibilities
Stacked capsule denester
Dispenser type
Screw dispensers driven by brushless servo motor
Precision filling
± 0.2g
Feedback adjustment
In-line weight control with feedback adjustment
