High-shear mixer granulator for pharma and nutraceuticals

Optimize your batch and high-speed production with a powerful granulator designed to ensure precise particle size distribution and uniformity, essential for achieving consistent quality in tablet and capsule manufacturing.

Performs High-Speed Granulation and Mixing

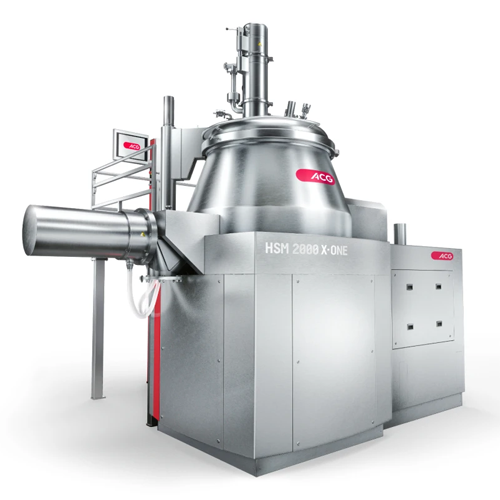

The HSM 2000 X·ONE from ACG is a high-shear mixer granulator engineered for precision and efficiency in large-scale batch processing of pharmaceutical and nutraceutical products. Its unique design features a Z-shaped impeller and multi-blade chopper, optimizing centrifugal force for uniform binder distribution and minimizing dead zones. This equipment excels in wet granulation and mixing, ideal for producing tablet granules, vitamin supplements, and probiotic capsules.

Capable of handling working volumes from 600 to 1,600 liters, it integrates seamlessly into a granulation train or operates as a standalone unit. The system is equipped with the ACG X·ONE command process control system, providing secure, intuitive monitoring compliant with ATEX, GAMP 5, and 21 CFR Part 11 standards. The MOST™ (Maximum Operator Safety Technology) ensures operator safety, while the non-vented, fully contained design enhances the work environment.

It supports applications in processing departments within the pharmaceutical and nutraceutical industries, handling powders and granules with high-speed efficiency. Maintenance is streamlined with wash-in-place (WIP) systems, facilitating easy cleaning and reducing downtime for continuous operation.

Benefits

  • Enhances production efficiency by ensuring uniform particle-size distribution and content uniformity.
  • Minimizes safety risks and production delays with a 12-bar pressure shock-resistant system.
  • Reduces cleaning time and improves productivity with wash-in-place (WIP) capabilities.
  • Offers regulatory compliance and secure process monitoring with integrated ATEX, GAMP 5, and 21 CFR Part 11 systems.
  • Adapts seamlessly to both standalone operations and integrated granulation trains for flexible production setups.

General


Applications
Vitamins,Supplements,Fine chemicals,Nutraceuticals,Pharmaceutical powder,Biopharmaceuticals
End products
Pain relief granules,Probiotic capsules,Collagen peptides,Dietary supplement powders,Herbal supplement granules,Tablet granules,Enzyme supplements,Pharmaceutical excipients,Amino acid supplements,Vitamin granules
Steps before
Weighing,Pre-mixing,Pre-granulation
Steps after
Drying,Mill sieving,Blending
Input ingredients
powdered ingredients,binder
Output ingredients
granules,uniformly mixed dry compositions
Market info
ACG World is known for its expertise in manufacturing pharmaceutical and nutraceutical processing and packaging machinery, offering innovative equipment solutions and maintaining a strong reputation for quality and reliability in the global market.

Technical Specifications


Working Volume Min
600 l
Working Volume Max
1,600 l
Pressure Shock-Resistance
12-bar
Compliance
ATEX (Directive 2014/34/EU),GAMP 5,21 CFR Part 11
Impeller Type
Z-shaped impeller
Discharge and Charging Systems
Multiple systems available
Control System
ACG X•ONE command process control system
Binder Distribution
Uniform binder distribution

Operating Characteristics


Automation level
PLC / SCADA
Batch vs. continuous operation
Batch
CIP/SIP
Wash-in-place (WIP)
Cleaning method
Wash-in-place (WIP)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


ATEX certification
Directive 2014/34/EU
Pressure shock-resistant
12-bar

Physical Characteristics


Bowl geometry
Unique product bowl geometry
Impeller shape
Z-shaped impeller
Chopper type
Multi-blade chopper
Pressure shock resistance
12-bar
Working volume
600 l - 1,600 l
Design type
Non-vented,fully contained design
Safety concept
MOST™ (Maximum Operator Safety Technology)

Custom Options


Control panel type
ACG X•ONE command process control
Integration possibilities
Granulation train or standalone unit
Safety features
MOST™ (Maximum Operator Safety Technology)
Charging and discharging systems
Multiple systems for efficient handling
Cleaning options
Wash-in-place (WIP)
