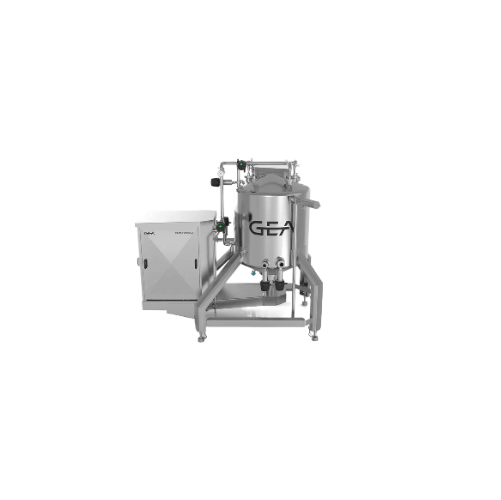

High shear mixer for low viscosity products

Achieve precise mixing and dispersion for diverse liquid applications with a high shear mixer designed for inline processing, ensuring exceptional product consistency and efficiency in your production line.

Mixes, Dispenses, and Recycles Low-Viscosity Liquids

The GEA INLINE FORMULA® SOL High Shear Mixer from GEA offers a versatile mixing solution for food, beverage, and dairy manufacturers. It features a bottom-mounted high shear mixing device with a multirotor system for effective dispersion and a centrifugal pump for continuous in-line processing. With applications ranging from fruit juices to nutritional formulas, this mixer supports a throughput suiting varying production scales. Designed with internal and external recirculation options, it enhances ingredient integration and minimizes product storage time. The closed vacuum system ensures a hygienic operation, while the customizable design supports integration into existing production lines. Constructed from durable materials, it withstands rigorous usage in demanding environments. Manufacturer-supported trials in Germany and Denmark allow for production scaling before full deployment.

Benefits

  • Enhances ingredient efficiency with minimal storage time thanks to its continuous in-line process.
  • Reduces labor and operational costs with automated production and real-time mixing.
  • Maintains a clean environment with a closed vacuum system that minimizes powder waste.
  • Increases product consistency and quality with high shear dispersion technology.
  • Supports diverse production needs with customizable mix and recirculation options.

General


Applications
Beverages,Liquid food,Plant-based beverages,Milk-based beverages,Sauces,Non-alcoholic drinks,Puddings,Liquid thickeners,Recombinant milk products,Nutritional formulas,Juice,Ice cream pre-mixes,Soft drinks,Reconstituted milk,Dairy products
End products
Cornstarch thickener,Vegetable oil,Infant formula,Rehydrated milk powder,Orange juice,Almond milk,Ginger ale,Greek yogurt,Chocolate pudding,Vanilla ice cream base,Cola,Tomato sauce,Iced tea,Chocolate milk,Recombined skimmed milk
Steps before
Raw material collection,Powder weighing,Ingredient selection,Initial blending,Powder handling
Steps after
Filling and packaging,Quality control,Product cooling,Distribution,Labeling
Input ingredients
juice,soft drinks,liquid food,recombined milk products,nutritional formula,sauce pre-mix,plant-based beverages,milk-based beverages,ice cream pre-mix,puddings,reconstituted milk,lactose,protein,powders
Output ingredients
homogeneous mixtures,mixed liquid food,beverages,processed ice cream pre-mix,processed puddings
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Mixing type
High shear
Process type
Continuous and in-line
Recirculation
Internal and external
Powder intake
High volume by vacuum
Powder wetting
Rapid without agglomerates
Hygiene standard
Hygienic as standard
Vacuum system
Closed vacuum system
Automation
Suitable for considerable automation
Application type
Low viscosity applications
Liquid food products
Juice,soft drinks,recombined milk

Operating Characteristics


Working mechanism
High shear mixing
Batch vs. continuous operation
In-line continuous
Internal recirculation
Yes
External recirculation
Yes
Automation level
High,PLC-controlled
Powder suction
Vacuum-assisted
Cleaning method
Hygienically designed for CIP
Inline processing
Direct to downstream process
Just-in-time production
Enabled
Multirotor integration
Yes

Material Compatibility


Cleanability
Hygienic as standard

Product type Characteristics


Viscosity
Low viscosity products
Foaming
Control required for foaming applications
Powder incorporation
High volume powder intake
Agglomeration risk
Low due to high shear mixing

Physical Characteristics


Compact footprint
Customizable
Vessel shape
Tank with bottom-mounted device
Recirculation options
Internal and external
Rotor/Stator Configuration
Multirotor integrated
Discharge method
Continuous process

Custom Options


Control panel type
PLC / HMI
Mixing device
Bottom-mounted / Multirotor
Recirculation type
Internal / External
Integration possibilities
Inline with downstream process
