High-shear granulator for wet granulation

Achieve precise content uniformity with advanced high-shear granulation, designed for optimal batch processing with enhanced operator safety and compliance with stringent safety directives.

Processes Powders into Uniform Granules

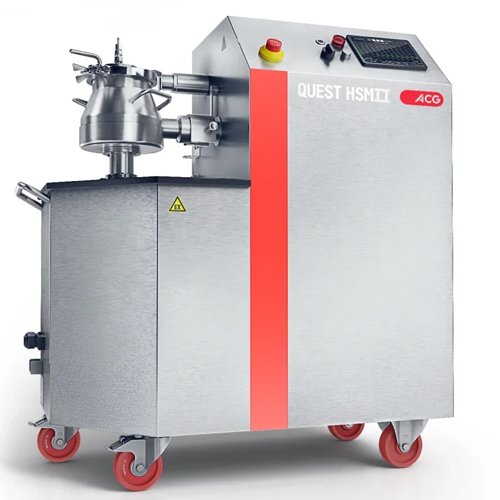

The QUEST HSM II from ACG is a high-shear mixer granulator designed for pharmaceutical and nutraceutical industries, ensuring optimal granulation for products like oral tablets and supplements. It features the ACG X•ONE command process control system and the unique MOST™ concept, enhancing safety with its 12-bar pressure shock-resistant system. This mobile, plug-and-play unit offers flexibility in batch processing with interchangeable bowls of 2, 5, and 10 liters. It processes powders into consistent granules through Z-shaped impeller blades and a laser-cut chopper, optimizing material flow and binder distribution. Meeting cGMP compliance, it offers a fully contained, non-vented design approved by FSA in Germany, and is ATEX compliant. Suitable for R&D and small-scale production, it integrates seamlessly into existing lines, ensuring minimal downtime and a quick return to production following pressure-shock events.

Benefits

  • Enhances operator safety with a fully contained, non-vented design.
  • Minimizes downtime with rapid production resumption after pressure-shock events.
  • Provides flexible batch sizes with interchangeable bowl options.
  • Improves material mixing efficiency, reducing processing time.
  • Ensures consistent granule uniformity, supporting high-quality end-products.

General


Applications
Vitamins,Supplements,Pharmaceutical tablets,Nutraceuticals,Pharmaceuticals
End products
Dietary fiber supplements,Oral solid dosage forms,Probiotic capsules,Fish oil capsules,Herbal supplements,Multivitamin tablets,Calcium tablets,Protein supplements,Cough and cold tablets,Pain relief tablets
Steps before
Weighing,Mixing
Steps after
Granule Drying,Size Reduction,Tablet Compression,Capsule Filling
Input ingredients
dry mix materials,binder
Output ingredients
granules,narrow particle-size distribution
Market info
ACG World is known for its expertise in manufacturing pharmaceutical and nutraceutical processing and packaging machinery, offering innovative equipment solutions and maintaining a strong reputation for quality and reliability in the global market.

Technical Specifications


Bowl size
2 l,5 l,10 l
Working volume
Min 0.6 l,1.5 l,3 l
Max 1.2 l,3 l,6 l
Pressure shock resistance
12-bar
Impeller blade type
Z-shaped
Chopper type
Laser-cut multi-blade straight chopper
Interchangeable bowls
2 l,5 l,10 l

Operating Characteristics


Working mechanism
High-shear mixing
Integrated steps
Wet granulation
Batch vs. continuous operation
Batch
Automation level
PLC / ACG X•ONE command process control
Cleaning method
Manual or CIP

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Interchangeable bowls
2 l,5 l,10 l
Control panel type
ACG X•ONE command process control system
Compact footprint
Standalone mobile plug-and-play system
Chopper design
Laser-cut multi-blade straight chopper
Impeller blades
Z-shaped

Custom Options


Control panel type
ACG X•ONE command process control system
Integration possibilities
Standalone mobile plug-and-play system
Impeller blade type
Z-shaped impeller blades
Chopper type
Laser-cut multi-blade straight chopper
Bowl capacity options
Interchangeable (2 l,5 l,and 10 l)
