High-capacity industrial sifter for chemical and food processing

Achieve unparalleled screening precision and efficiency in continuous operations with this high-capacity sifter, designed to optimize material flow and reduce downtime with rapid screen changes and maintenance-free components.

Screens and Separates Granules and Powders Efficiently

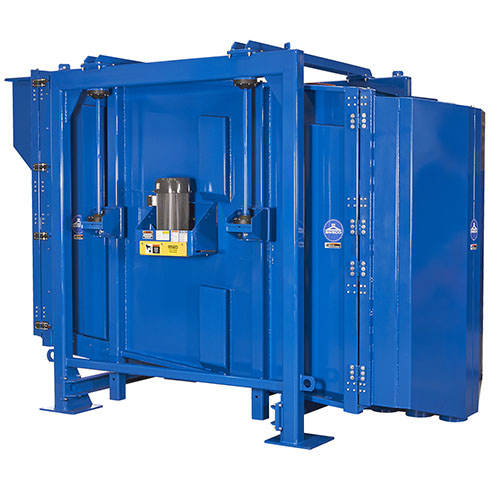

The SWECO ATLAS™ Gyratory Sifter is designed to meet the rigorous demands of industries such as agriculture, food, and pharmaceuticals, providing efficient screening and separation solutions for powders, granules, and solid materials. It operates on a horizontal, uniform gyratory motion, ensuring optimal performance per screen area and facilitating sharp separations and even material distribution. With the ability to accommodate up to 528ft² (49m²) of screening area across 12 screens, the ATLAS efficiently handles high throughput operations. Featuring SWECO’s patented QuickChange™ technology, it allows one-minute screen changes, drastically minimizing downtime and enhancing production capacity. It operates continuously with minimal maintenance requirements, featuring maintenance-free drive and basket hangers. The ATLAS is available in various material choices to ensure compatibility with specific processes and offers significant energy efficiency. Highly suitable for processes like powder coating, mining, and wastewater processing, it can be seamlessly integrated into existing production lines to increase processing efficiency and product quality.

Benefits

  • Enhances production efficiency with rapid one-minute screen changes, reducing downtime significantly.
  • Supports high-capacity operations with extensive screening area options, ensuring consistent material quality.
  • Operates with low maintenance requirements due to maintenance-free designs, lowering operational costs.
  • Provides energy-efficient operation, optimizing resource usage in continuous processes.
  • Easily integrates into diverse industries, boosting flexibility and process adaptability.

General


Applications
Chemicals,Food,Ceramics,Biofuels,Mining products,Recycling materials,Paper products,Agriculture products,Pulp,Plastics,Shot peening materials,Minerals,Laundry products,Wastewater processing,Powder coating,Pharmaceuticals
End products
Corn starch,Polyethylene pellets,Cocoa powder,Pharmaceutical tablets,Plastic resin granules,Metal shot peening spheres,Ceramic powder,Recycled paper pulp,Wheat flour,Biofuel pellets,Pulp slurry,Titanium dioxide pigment,Crushed limestone,Sugar granules,Wastewater sludge cake,Detergent granules,Fertilizer granules,Recycled plastic flakes
Steps before
Grinding,Drying,Pre-mixing,Screening preparation
Steps after
Packing,Further separation,Final product inspection
Input ingredients
chemical materials,food products,plastic particles,agricultural products,mineral ores
Output ingredients
separated chemical components,food fractions,plastic granules,sorted agricultural produce,mineral fractions
Market info
Sweco is known for engineering consulting services, providing expertise in sustainable infrastructure, architecture, and engineering projects, with a strong reputation for delivering comprehensive solutions in urban planning, environmental services, and industrial ETO equipment design and consultancy.

Technical Specifications


Capacity
High capacity
Screening Area
32ft² (3m²) to 528ft² (49m²)
Product Fractions
2-5 product fractions
Screen Configuration
Up to 12 screens
Screen Change Time
One minute
Motion Type
Horizontal gyratory motion
Maintenance Requirements
Maintenance-free,no lubrication required
Screen Change Technology
QuickChange™ technology
Material Spread-ability
Unparalleled
Feed Box Performance
High-performance feed box
Deblinding System
Superior deblinding ball action
Dynamic Force
Low dynamic force

Operating Characteristics


Working mechanism
Horizontal uniform gyratory motion
Screen Change Technology
QuickChange™ technology
Maintenance requirement
Maintenance-free drive and basket hangers
Changeover time
One minute screen changes
Capacity
High-capacity screening
Material spread-ability
Unparalleled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Industries Served
Chemical,food,plastics,agriculture,minerals

Physical Characteristics


Machine footprint
Varies based on configuration
Screen area
32ft² (3m²) to 528ft² (49m²)
Number of screens
Up to 12
Product fractions
2-5
Discharge method
Feed or discharge end of machine

Custom Options


Screen configuration
Up to 12 screens
Screen size
32ft² (3m²) to 528ft² (49m²)
Product fractions
2-5
QuickChange™ technology
One minute screen changes
Drive and basket hangers
Maintenance free
Feed box
High-performance
Discharge door
Superior performance
