High-capacity checkweigher for heavy products

Ensure compliance and precision in weighing large and heavy packaged products, optimizing your production line with reliable 24/7 performance.

Ensures Accurate Weight Compliance

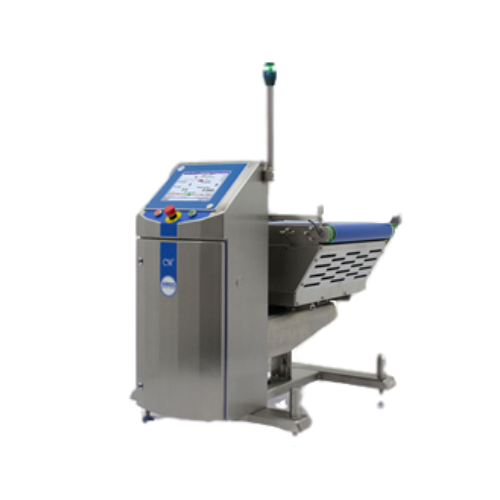

The CW3 Heavy Weight Checkweigher from Loma Systems is engineered to seamlessly integrate into fast-paced production lines, ensuring your products comply with weight regulations and are free from unnecessary giveaways. Utilizing robust loadcell technology, this checkweigher offers precise and reliable measurements for a wide range of applications including frozen meals, packaged poultry, and consumer electronics. With a capacity to handle products up to 60 kg, it’s ideal for continuous operations in sectors such as food processing and general industries. Featuring brushless motors and durable conveyor components, it promises 24/7 operation with minimal maintenance. The CW3 is flexible, offering storage for up to 500 product calibrations for quick switching, and supports compliance with standards like OIML R51 and MID. Material construction from 304 brushed stainless steel ensures durability and corrosion resistance, while an IP65 rating confirms suitability for demanding environments.

Benefits

  • Increases operational efficiency by minimizing product giveaway through precise weight control.
  • Enhances production versatility with rapid product switching via memory storage of up to 500 calibrations.
  • Ensures compliance with industry weight regulations like OIML R51 and MID, mitigating legal risks.
  • Provides reliable 24/7 operation in demanding environments due to rugged stainless steel construction.
  • Facilitates integration into existing lines with scalable, high-speed processing capabilities.

General


Applications
Convenience food,Meat,Other general industries,Egg products,Poultry,Food-to-go,Dairy products,Fish
End products
Frozen meals,Packaged chicken breasts,Consumer electronics,Hard-boiled eggs,Pre-packaged sandwiches,Processed meats like bacon,Milk cartons,Canned tuna,Industrial chemicals,Yogurt containers
Steps before
Packaging,Bagging,Boxing
Steps after
Quality Control,Sorting,Shipping,Labeling
Input ingredients
big bags,boxes,convenience food,food-to-go,dairy products,egg products,meat,poultry,fish,other general industries
Output ingredients
accurate weight measurements,mean weight correction compliance
Market info
Loma is known for manufacturing industrial inspection equipment, specializing in metal detection, checkweighing, and X-ray inspection systems, widely used in the food, pharmaceutical, and packaging industries for quality control and ensuring product safety and compliance.

Technical Specifications


Max Product Weight
Up to 60 kg
Maximum Speeds
54 m/min
Loadcell Technology
Highly reliable
Automation
Automatic Mean Weight Correction
Belt Width
500 mm
Supply Voltages
110 or 230 V,single phase 50/60Hz
Air Supply
5 to 8 bar (10mm Outside Dia) 72-116 Psi
Operating Environment
0-40°C
IP Rating
IP65

Operating Characteristics


Automation level
Automatic Mean Weight Correction
Changeover time
Switch products in seconds
Batch vs. continuous operation
Inline Continuous

Material Compatibility


Corrosive resistance (e.g. acids)
Yes,compatible with 304 stainless steel

Physical Characteristics


Machine Footprint
Not specified
Belt Width
500mm
Line Height Option
750 - 950mm (+/- 50 adjustment)
Operating Environment
0-40°C
IP Rating
IP65
Material of Construction
304 Brushed Stainless Steel
Supply Voltages
110 or 230 V,single phase 50/60Hz,neutral,amp
Earth

Custom Options


Control panel type
Digital interface
Integration possibilities
Automatic Mean Weight Correction
Stored product library
Up to 500 products
Material of Construction
304 Brushed stainless steel
