Heavy duty lump breaker for coarse and pre-grinding

Achieve consistent particle size reduction with this heavy-duty solution, ideal for breaking down large, dense lumps into manageable pieces for further processing in food, pharmaceutical, and chemical production lines.

Reduces and Grinds Large Material Lumps

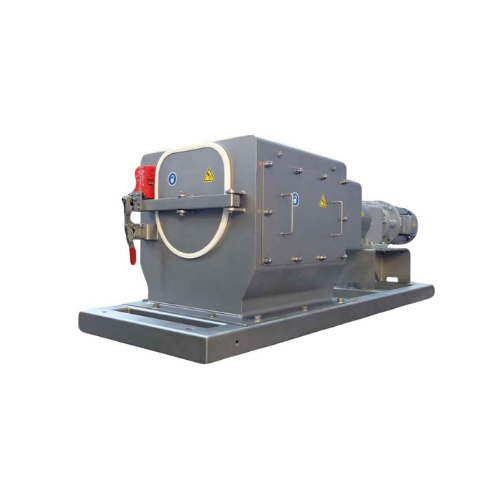

The KEK Kibbler Mill by Kemutec is a versatile machine designed for demanding size reduction tasks, addressing the needs of the food, pharmaceutical, and chemical sectors. Its heavy-duty construction effectively processes and reduces large material lumps using a combination of impact, crushing, cutting, and abrasion. Operating at slow speeds with significant torque, it enables efficient deagglomeration, pre-breaking, and coarse grinding, producing uniform particle sizes ranging from 2-3 mm. Ideal for applications like chocolate shavings, biscuit crumbs, and API processing, this equipment can handle throughputs of up to 90 tonnes per hour. The mill’s cantilever shaft design enhances hygiene and simplifies maintenance, allowing rapid screen changes. Customizable options include cantilever designs, various feed components, and drive configurations to meet specific production requirements. Built with robust materials, it offers low noise operation and minimal heat generation, ensuring compliance with industry standards while maintaining energy efficiency.

Benefits

  • Ensures consistent product quality by achieving uniform particle sizes.
  • Enhances operational efficiency with quick screen changes and easy cleaning access.
  • Reduces processing time with high capacity throughput up to 90 tonnes per hour.
  • Increases hygiene standards through cantilever design with minimal dust contamination.
  • Lowers noise levels and energy consumption during size reduction operations.

General


Applications
Cookies,Biscuits,Fine chemicals,Pet food,Food ingredients,Popcorn,Chocolate,Pharmaceuticals
End products
Detergent powders,Cookie crumbles,Active pharmaceutical ingredients (apis),Pet food kibble,Biscuit crumbs,Spices,Excipients,Popped sorghum,Chocolate shavings
Steps before
Bulk Bag Discharge,Sack-Tip Opening
Steps after
Fine Grinding,Melting,Inclusion in Cereal Bars,Packaging
Input ingredients
large lumps of material,soft to medium-hard agglomerates,medium or hard material,bulk bag discharge,sack-tip opening station,biscuits,cookies,chocolate,popcorn
Output ingredients
milled particle size 2-3mm,deagglomerated material,pre-ground material,smaller gratings of chocolate,popcorn reduced size,biscuit sprinkles
Market info
Kemutec is known for its expertise in manufacturing industrial powder processing equipment, including sifters, mills, and mixers, tailored to meet specific customer needs. They are reputed for delivering high-quality, reliable engineered-to-order solutions.

Technical Specifications


Size Reduction Range
150 mm to 2-3 mm
Grinding screen sizes
30 mm to 3 mm
Speed
Gentle speed
Torque
High torque
Noise Level
Low
Material Classification
Built-in screen
Milled Particle Size
2-3 mm
Design
Cantilever shaft
Non-drive End Access
Easy access door
Customization
Fully customisable
Capacity Range
Pilot plant to 90 tonnes/hour

Operating Characteristics


Working Mechanism
Impact,crushing,cutting,abrasion
Screen Classification
Built-in for consistent particle size
Batch vs Continuous Operation
Standalone or integrated operation
Automation Level
Manual / PLC-controlled
Changeover Time
Quick screen changes
Cleaning Method
Easy access for manual cleaning
Cantilever Beater Design
For maximum hygiene and easy cleaning

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Food-grade materials
Corrosive resistance (e.g. acids)
Stainless steel construction
Cleanability
Easy access doors for cleaning
Density/particle size
0.5–2.5 g/cm³ / 2–3 mm

Physical Characteristics


Discharge method
Built-in screen classification
Feed method
Cantilever grinding beaters

Custom Options


Cantilever shaft design
Available for maximum hygiene
Easy access doors
Hinged for cleaning and maintenance
