Gummy counter for gusseted bags
Optimize your gummy production line with precise counting and packaging into re-sealable gusseted bags, ensuring accuracy and efficiency for high-speed operations.
Counts and Packs Gummies Efficiently

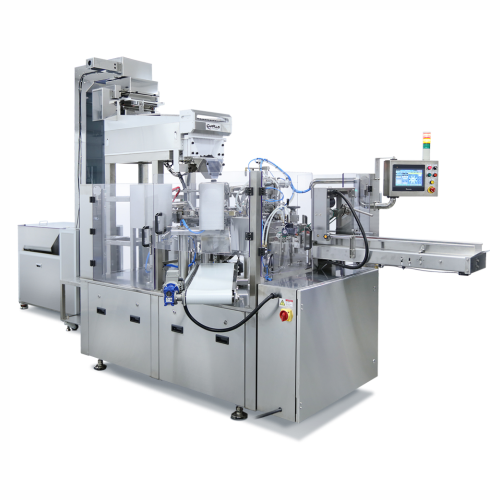

The RC90.18.2G2 Rapid Gummy Channel Counter from Gummy Technologies revolutionizes gummy packaging with its ability to efficiently count and pack gummies into pre-made gusseted, re-sealable bags. This high-speed equipment is crucial for confectionery manufacturers and gummy producers seeking to optimize their operational efficiency. It uses a dual-track system that facilitates continuous processing, achieving output rates of up to 3,600 gummies per minute. With a compact design and dimensions of 3000 W x 1900 H x 1250 D, it easily integrates into existing production lines. The machine operates with air requirements of 6-7 kg/cm² and an electrical setup of 220V / 1ph / 60 Hz, delivering a power rating of 1.2 kW. It is particularly suited for packaging a wide range of gummies, from vitamins to nutritional supplements. Its PLC-controlled operation ensures precision and offers easy maintenance, while the robust construction promises durability and compliance with industry standards. Configurations are available upon request to meet specific production needs.
Benefits
- Achieves high-speed counting to increase overall production efficiency.
- Ensures precise gummy packaging, minimizing product giveaway and waste.
- Seamlessly integrates into existing production lines for streamlined operations.
- Reduces operational costs with energy-efficient power consumption.
- Supports diverse gummy types, enhancing production flexibility.
- Applications
- Sweets,Gummies,Nutraceuticals,Supplements
- End products
- Vitamin d gummies,Gummy bears,Nutritional gummies,Gummy vitamins,Omega-3 gummies,Probiotic gummies,Herbal supplement gummies,Gummy candies,Sour gummies,Energy gummies
- Steps before
- Gummy Preparation,Gummy Molding,Cooling
- Steps after
- Packing,Sealing
- Input ingredients
- gummies
- Output ingredients
- gummies in pre-made gusseted bags,re-sealable bags
- Market info
- Output
- Maximum 3,600 gummies/min
- Machine Weight
- 950 Kg
- Machine Dimensions
- 3000 W x 1900 H x 1250 D
- Air Requirements
- 6-7 kg/cm²
- Electrical
- 220V / 1ph / 60 Hz
- Power Rating
- 1.2 kW
- Number of Tracks
- 18 (2x9)
- Automation Level
- Manual / PLC
- Batch vs. Continuous Operation
- Batch
- Cleaning Method
- Manual
- Container type
- Gusseted bags
- Machine footprint
- 3000 W x 1900 H x 1250 D mm
- Machine weight
- 950 Kg
- Feed method
- Counts Gummies Into Pre-made Gusseted,Re-sealable Bags
- Output capacity
- Maximum 3,600 Gummies/min
- Power requirement
- 220V / 1ph / 60 Hz,1.2 kW
- Air requirements
- 6-7kg / cm²
- Gummy packaging type
- Gusseted,Re-sealable Bags
- Control panel type
- Available upon request
- Integration possibilities
- Compatible with existing systems
- Machine configuration
- 2x9 Tracks
- Output adjustment
- Up to 3,600 Gummies/min
