Gummy candy depositor for precision manufacturing

Achieve consistent gummy size and shape while maintaining precise weight accuracy, ideal for scaling production from experimental batches to larger-scale operations.

Deposits and Forms Consistent Gummies

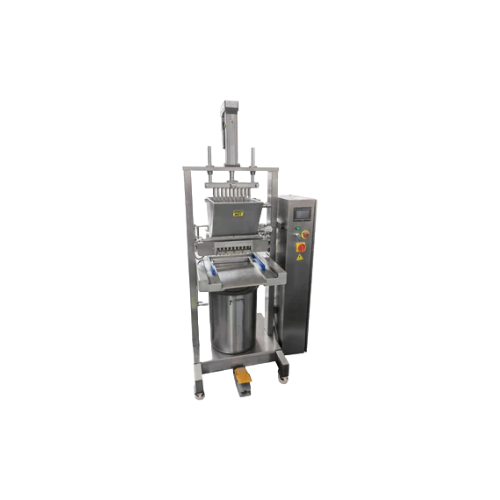

The DM-20 Gummy Depositor from SaintyCo is designed to streamline gummy production across various scales, making it a versatile choice for confectionery producers. This semi-automatic machine deposits and forms gummies with precision, supporting both pectin and gelatin bases. Operating with a throughput of 6,000 to 10,000 gummies per hour, it meets the demands of entry-level to large-scale operations. With its 25L hopper and dimensions of 1252 x 920 x 1937 mm, the DM-20 is compact yet powerful, offering easy integration into existing production lines. Energy-efficient at 5KWH, it runs on 220V 60HZ 3-phase power, balancing performance and cost-effectiveness. Ideal for producing a variety of gummy end-products, including vegan and sugar-free options, this equipment ensures consistent quality and weight accuracy. With customizable configurations and robust engineering support, the DM-20 stands out as a reliable asset in any gummy production facility.

Benefits

  • Enhances efficiency with a production capacity of up to 10,000 gummies per hour.
  • Supports versatile production with compatibility for both pectin and gelatin-based recipes.
  • Reduces labor requirements with semi-automatic operation, demanding only 1-2 operators.
  • Minimizes energy costs through optimized power consumption.
  • Ensures consistent product quality with precision weight accuracy and shaping.

General


Applications
Sweets, Gummies, Snacks
End products
Gummy worms, Pectin-based gummies, Vegan pectin gummies, Colorless gummies, Organic gummy rings, Flavorless gummies, Gelatin-based gummies, Traditional gummy bears, Sugar-free gummies
Steps before
Ingredient Preparation, Mixing, Heating
Steps after
Cooling, Demolding, Quality Inspection, Packaging
Input ingredients
pectin, gelatin
Output ingredients
gummies, gummy candy
Market info

Technical Specifications


Capacity
6, 000-10, 000 gummies/hr
Operators Required
1-2 Operators
Material Compatibility
Pectin and Gelatin
Electric Power Needed
220V 60HZ 3pH
Power Consumption
5KWH
Hopper Size
25L
Dimensions
1252 x 920 x 1937 mm
Output Adjustment
Entry-level to larger-scale productions
Product Quality
Smooth gummies, consistent size and shape
Piece Weight Accuracy
Precise

Operating Characteristics


Working Mechanism
Depositing
Output Capacity
6, 000-10, 000 gummies/hr
Automation Level
Manual / 1-2 operators
Batch vs. Continuous Operation
Batch
Material Compatibility
Pectin and Gelatin

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product type
Gummy candies

Physical Characteristics


Machine Footprint
1252 x 920 x 1937 mm
Hopper Size
25L
Discharge Method
Depositing

Custom Options


Hopper size
25L
Dimensions
1252 x 920 x 1937 mm
