Granola drying solution

Optimize your granola production with modular drying technology that ensures precise moisture control and seamless integration into existing lines.

Dries and Cools Granola and Cereal Products

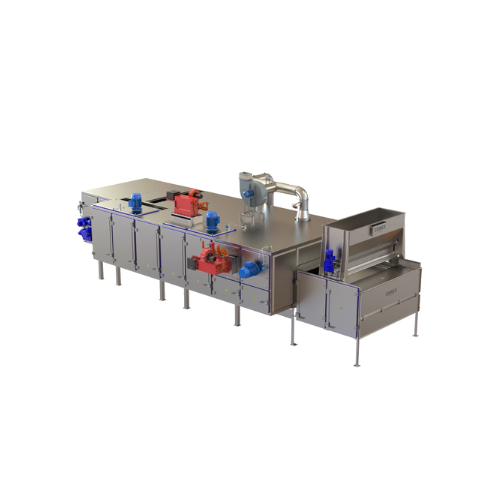

The Granola Dryer CMG 1040 and CMG 2680 from CEREX AG are modular drying systems designed for the precise control of moisture in granola and cereal products. Featuring a unique modular design, these dryers incorporate a conveyor system with customizable widths and perforation types, ensuring optimal drying efficiency. They are ideal for granola clusters, müsli base flakes, and cereal bars, accommodating both continuous and modular operations. With processing capacities available in five standard sizes, they offer scalability for diverse production needs. Automation is enhanced through direct-driven shafts, eliminating belt and chain maintenance, while an integrated wash-down facility ensures hygiene. Stainless steel construction, with options for higher-grade AISI 316, enhances durability and corrosion resistance. The design eliminates horizontal surfaces and exposed bolts in the product zone, promoting cleanliness. CEREX provides engineering support for customization, including contact part polishing and additional spreading and agitating options, ensuring your drying solution meets specific production requirements.

Benefits

  • Enhances production efficiency with modular drying zones tailored to your needs.
  • Reduces maintenance costs with lubrication-free stainless steel chains and direct-driven shafts.
  • Improves hygiene through easy-clean design with no horizontal surfaces or exposed fasteners.
  • Offers energy savings with insulated panels minimizing heat loss during drying.
  • Increases customization capabilities to meet specific production goals with various material and spreading options.

General


Applications
Puffed products,Cereals,Bars,Nuts,Coated products,Granola,Seeds,Breakfast cereals,Müsli
End products
Coated cashews,Puffed rice,Granola clusters,Puffed quinoa,Müsli base flakes,Breakfast cereal bars,Fruit granola mixes,Coated almonds,Seed and nut mix clusters,Honey-coated peanuts
Steps before
Flaking,Puffing,Coating,Mixing
Steps after
Cooling,Packing,Coating,Müsli/Granola/Bars Production
Input ingredients
raw grain products,granola mix,müsli ingredients,nuts,seeds
Output ingredients
dried granola,breakfast cereals,granola bars,müsli
Market info
CEREX is known for specializing in the production of engineered-to-order (ETO) equipment, providing customized industrial solutions with a strong emphasis on innovation, quality, and customer satisfaction in niche market segments.

Technical Specifications


Modular design
Yes
Size Range
CMG 1040 - CMG 2680
Custom Size
Available upon request
Conveyor Widths
1'000 mm,2'000 mm,2'600 mm
Perforations
All types available
Modules Included
Feed End,Air Up,Air Down,Utility Zone,Cooling Zone,Delivery End
Feeding
Incorporated feed hopper
Access
Full access to all units and areas
Floor Support
Two legs per module
Hygiene Design
No horizontal surfaces inside the drying space
Chain Type
Lubrication free stainless steel
Panels
Insulated,with airtight doors and panels
Door Feature
180° opening capability
Drive Type
Direct-driven shafts
Cleaning System
High pressure wash-down facility
Cooling Option
Cooling Zone included
Optional Upgrades
Electropolished contact parts,Higher grade steel,Comb/Finger spreader,etc.

Operating Characteristics


Modular design
Yes
Batch vs. continuous operation
Continuous
Accessibility
Full access to all units and areas
Automation level
Manual / PLC-controlled
Hygienic design
No bolts or nuts above the conveyor
Cleaning method
Hygienic wash-down facility
Energy efficiency
Insulated panels
Integrated components
Feed hopper,cooling zone
Customization options
Custom size machines upon request

Material Compatibility


Corrosive resistance
AISI 316 stainless steel

Product type Characteristics


Material handling
Granola

Physical Characteristics


Machine Footprint
Modular design,5 standard sizes (CMG 1040 - CMG 2680)
Conveyor Width
1'000 mm,2'000 mm,2'600 mm
Feed/Discharge Method
Incorporated feed hopper,Conveyor system
Panel and Door Design
Insulated panels,Doors open to 180°
Construction
Stainless steel,Lubrication-free chain
Module Support
Two legs per module
Interior Design
No horizontal surfaces,No bolts or nuts above conveyor

Custom Options


Conveyor width
1'000 mm,2'000 mm,2'600 mm
Machine size
5 standard sizes (CMG 1040 - CMG 2680),custom size upon request
Material grade
AISI 316,AISI 304
Contact parts surface finish
Electropolished
Additional options
Comb/Finger spreader,Agitating rake,Rotating pin roll,Oscillating rake,Dry brush/Dry wiper
