Glass-lined mixing systems for pharmaceutical industry

Achieve consistent mixing and thorough agitation for complex formulations, enhancing yields and process efficiency in dynamic and high-speed industrial operations.

Facilitates Mixing and Agitation for Various Industries

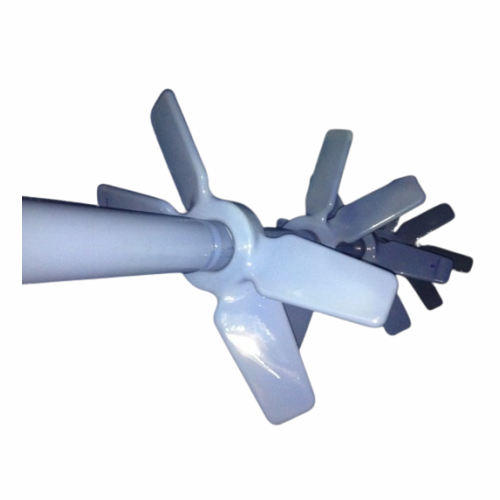

The Glass-Lined Mixing and Agitation Systems from GMM Pfaudler are designed for the rigorous demands of chemical, pharmaceutical, and food manufacturing. These systems excel due to their glass-lining technology, providing corrosion resistance and durability in handling aggressive and volatile materials. Operating on a top entry configuration, these systems efficiently facilitate mixing and agitation with reduced vibrations and enhanced operational stability. They are well-suited for producing active pharmaceutical ingredients, specialty chemicals, and biofuels, accommodating both batch and continuous processes. With key features such as a balanced shaft design, motor-driven gear boxes, and absence of bottom bearings, these systems integrate seamlessly into existing production lines. They offer energy-efficient operation with minimal maintenance requirements, and are adaptable to various media and process needs. Additionally, compliance with European Directive 2014/34/EU ensures safe operation in hazardous environments, while the compact design prioritizes ease of maintenance and accessibility for field service teams.

Benefits

  • Ensures product quality and consistency in demanding environments with reliable agitation.
  • Minimizes operational costs through efficient agitation and low-maintenance design.
  • Enhances safety in hazardous conditions with compliance to European safety directives.
  • Adapts easily to diverse production requirements in batch and continuous operations.
  • Extends equipment lifespan with superior corrosion resistance from glass-lining technology.

General


Applications
Chemicals,Food,Fine chemicals,Energy,Nutraceuticals,Biopharmaceuticals,Pharmaceuticals
End products
Biofuels,Liquid vitamins,Vaccines,Specialty chemicals,Food additives,Active pharmaceutical ingredients (apis),Chemical intermediates,Essential oils,Pharmaceutical excipients
Steps before
Reaction Preparation,Solution Mixing,Chemical Loading
Steps after
Reaction Monitoring,Temperature Control,Product Sampling
Input ingredients
liquids,solids,gaseous elements
Output ingredients
chemical reactions,increased yield,corrosion-resistant solutions
Market info
GMM Pfaudler is known for manufacturing glass-lined equipment, reactors, and engineered-to-order (ETO) solutions for the chemical, pharmaceutical, and allied industries, recognized for their innovation, quality, and global presence.

Technical Specifications


Drive Compliance
European Directive 2014/34/EU
Operation
Smooth,minimized vibrations
Speed Adaptation
Gear box to process requirements
Agitator Type
Glass-lined
Entry Type
Top entry
Monitoring Devices
Case-by-case
Operation Safety
Hazardous areas
Load Changes
Full operation under sudden load changes

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
Energy efficiency
Low energy consumption
CIP/SIP
Not specified
Changeover time
Optimized for quick changeover
Cleaning method
CIP compatible

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Agitator Type
Glass-lined
Entry Type
Top entry
Support Flange Type
Agitator support flange
Shaft Type
Balanced shafts
Baffle Type
Glass-lined baffles
Probe Mounting
On reactor nozzles
Drive System Location
Pedestal to support
Sealing System
Sealing system for shaft passage
Coupling Type
Between shaft and gearbox
Gearbox Function
Adapts rotating speed
Motor Type
Generally electrical
Bottom Bearing
None

Custom Options


Control panel type
PLC,HMI
Integration possibilities
SCADA,Remote Monitoring
Customization of agitator design
Yes,Customizable
Motor type and specification
Electrical,Variable Speed
Baffle configuration
Customizable
