Gas pycnometer for true density measurement of solids and powders

Achieve highly precise density measurements of solid materials and powders using gas displacement, ensuring reliable data for quality control and research in various applications.

Measures True Density Using Gas Displacement

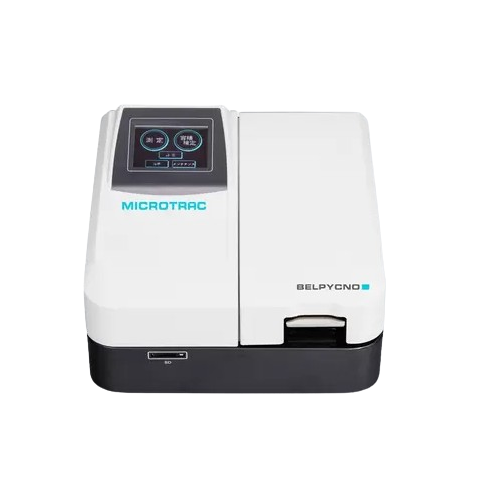

The BELPYCNO from Microtrac Retsch GmbH is a precise gas pycnometer designed for accurate density measurement of solids and powders through a gas displacement method. It features high-resolution pressure measurement and variable cell volumes, which allow for flexible testing across a range of materials including battery components, catalysts, and polymers. The equipment offers user-friendly operation with a greaseless, one-touch sample cell cap, and a convenient touchscreen interface for efficient data handling. With an accuracy of 0.03% and repeatability of 0.02%, the BELPYCNO ensures reliable performance in R&D and laboratory settings. It’s compatible with gases such as helium and nitrogen and operates within temperatures ranging from 15 to 35°C, with optional enhancements like thermostatic water baths. Designed for ease of integration, it includes automatic calibration features and RS232C interface for seamless communication with printers and electronic balances. This pycnometer meets CE certification standards, ensuring compliance and safety in your laboratory operations.

Benefits

  • Ensures precise material formulation with high accuracy density measurement.
  • Facilitates quick and efficient testing with variable cell volumes and one-touch operation.
  • Reduces operational complexity through a user-friendly touchscreen interface.
  • Enhances measurement reliability with repeatability of 0.02%.
  • Increases versatility for different materials, compatible with helium, nitrogen, and inert gases.

General


Applications
Chemicals,Battery materials,Ceramics,Magnetic material,Fibers,Cosmetics,Fuel cells,Separation membranes,Polymer materials,Semi-conductors,Pigments,Catalysts,Cement
End products
Reverse osmosis membranes,Polyethylene plastic products,Automotive catalytic converters,Lithium-ion battery components,Neodymium magnets,Microprocessor chips,Porcelain tiles,Carbon fibers,Portland cement,Industrial solvents,Hydrogen fuel cells,Titanium dioxide pigments,Lipsticks
Steps before
Purging,Flow adjustment,Vacuum preparation,Sample weighing,Sample preparation
Steps after
Data analysis,Result printing,Sample removal,Sample storage
Input ingredients
solid materials,powders,battery materials,catalysts,fibers,polymer materials,chemicals,cosmetics,fuel cells,cement,pigments,ceramics,magnetic material,semiconductors,separation membranes
Output ingredients
true density measurement
Market info
Microtrac is known for its expertise in particle size and shape analysis, providing innovative measurement solutions used in various industries to ensure product quality and consistency. Their equipment is recognized for precision and reliability in laboratory and industrial settings.

Technical Specifications


Measurement principle
Gas displacement method
Sample cell volume
10 cm³,3.5 cm³,1 cm³
Measurement accuracy
0.03% of F.S. +0.03% of reading
Repeatability
0.02% of F.S.
Pretreatment
Gas purge,flow,vacuum (option)
Pretreatment pressure
0-145kPa (Gauge)
Applicable gas
He,N2,inert gas
Measurement pressure
145kPa (Gauge)
Repetition times of measurement
Maximum 100 times
Mean number of measurement
Maximum 10 times
Measurement temperature range
15-35°C,water bath
Calibration method
Automatic calibration with calibration sphere
Interface Input
RS232C (communication with printer)
Interface Output
RS232C (communication with electric balance)
Dimensions (W x H x D)
270 x 170 x 300 mm
Weight
8 kg
Utility - Gas
He,N2,inert gases
Utility - Joint
1/8" Swagelok connection
Utility - Power
AC100~120V/200-240 V / 200 W,50 / 60 Hz
Options
Label printer for result output,Sample weight acquisition from electronic balance,Thermostatic water bath to maintain the sample temperature

Operating Characteristics


Working Mechanism
Gas Displacement Method
Integrated Steps
Automatic Calibration
Sample Handling
One-touch Sample Cell Cap
User Interface
Touch Screen Operation
Capacity Adaptability
Variable Cell Volumes
Pressure Control
High-resolution Pressure Measurement


CE marking
yes
CE certified
yes

Physical Characteristics


Weight
8 kg
Gas types used
He,N₂,inert gases

Custom Options


Control panel type
Touch screen
