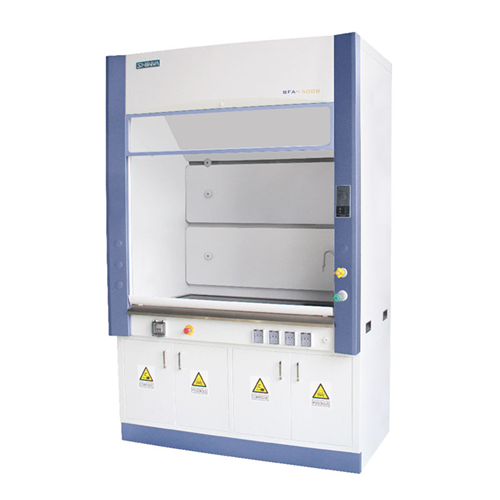

Fume hood with pipes for chemical laboratories

Ensure maximum safety and efficiency in your laboratory by effectively exhausting hazardous chemical fumes and toxic gases with this innovative fume hood solution.

Exhausts and Suppresses Chemical Fumes

The Fume Hood with Integrated Exhaust Pipes from Shinva Medical is a crucial safety device designed for chemical laboratories. It excels in exhausting and suppressing harmful chemical fumes, ensuring both operator safety and a clean laboratory environment. The hood features an intelligent constant air velocity technology that automatically adjusts the exhaust air rate based on the front window’s open height, maintaining a consistent face velocity. Its LCD screen facilitates the monitoring of critical parameters like air velocity and PM2.5 levels.

Ideal for handling chemical reagents, volatile solvents, and toxic gases, it serves industries including chemical, pharmaceutical, and biotechnology. The physiochemical working table resists heat, corrosion, and wear, enhancing durability and ease of cleaning. Energy efficiency is boosted by a body-induction function that lowers air velocity when not in use, reducing power consumption. Additionally, the Fume Hood’s robust construction, featuring acid-and-alkali-resistant epoxy resin, ensures longevity and aesthetic appeal. Customizable options like water and gas valves further tailor the equipment to specific laboratory needs.

Benefits

  • Enhances laboratory safety by effectively eliminating toxic fumes and gases.
  • Optimizes energy use with automatic air velocity adjustment and presence detection.
  • Provides easy maintenance with accessible overhaul window and durable construction.
  • Ensures operational consistency with intelligent air flow control.
  • Customizable to specific laboratory needs with optional accessory integration.

General


Applications
Laboratory safety equipment,Chemical fumes exhaust,Chemistry laboratories,Hazardous chemical handling,Toxic gas suppression
End products
Flammable gases,Toxic fumes,Chemical reagents,Corrosive acids,Laboratory solutions,Chemical samples,Volatile solvents,Hazardous organic compounds
Steps before
Installation,Calibration,Connection of water,power,and gas pipes
Steps after
Exhaust air rate adjustment,Repair,maintenance,Cleaning
Input ingredients
hazardous chemical fumes,toxic gases,irritating gases,inflammable gases,chemical fumes,steam,dust
Output ingredients
exhausted air,filtered air,clean air
Market info
Shinva is known for manufacturing medical equipment, including sterilization and disinfection devices, radiotherapy products, and diagnostic imaging systems, demonstrating expertise in healthcare solutions and a strong reputation for quality in the medical industry.

Technical Specifications


Air velocity
Adjustable as per open height of front window
Body material
Acid-and-alkali-resistant epoxy resin
Display type
LCD screen
Energy Efficiency
Body-induction function to lower air velocity when unattended
Face velocity
Constant via intelligent adjustment
Work surface material
Physiochemical plate,compact-grade laminate plate,ceramic plate
Overhaul window size
340*480 mm
Inner spatial distance
120 mm

Operating Characteristics


Air velocity control
Intelligent constant air velocity technology
Energy savings mode
Body-induction function
Continuous operation
Automatic adjustment of exhaust air rate
Operator presence detection
Yes
Safety features
Air-channel structure for gas prevention

Physical Characteristics


Control panel type
LCD screen
Discharge method
Exhaust air rate adjustment
Ventilation method
Intelligent constant air velocity
Material of construction
Acid-and-alkali-resistant epoxy resin powder
Working table material
Physiochemical plate,compact-grade laminate plate,ceramic plate
Overhaul-purpose window size
340*480mm
Pipes connection
120mm inner spatial distance

Custom Options


Control panel type
LCD screen
Air velocity adjustment
Intelligent constant air velocity technology
Energy saving function
Body-induction for automatic lowering of air velocity
Working table material
Physiochemical plate / Compact-grade laminate plate / Ceramic plate
Fume hood body coating
Acid-and-alkali-resistant epoxy resin powder
Window type
Overhaul-purpose window,disassemblable
Optional accessories
Water valve,gas valve,water nozzle,gas nozzle,tap
