Full case check for beverage production lines

Ensure complete packaging integrity by detecting and removing cases with missing contents from your production line, enhancing quality control and preventing costly distribution errors.

Identifies and Rejects Incomplete Cases

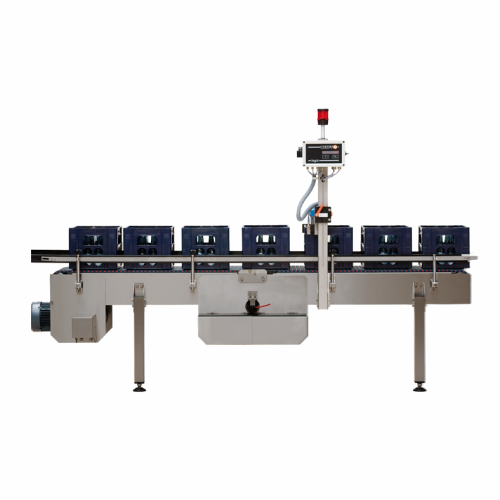

The HEUFT Logic from HEUFT SYSTEMTECHNIK is a precise and reliable full case checker designed for beverage, food, and pharmaceutical production lines. Utilizing a combination of optical and electromagnetic sensor systems, it identifies incomplete cases promptly after packing, ensuring only fully packed cases proceed. Ideal for products like bottled water, glass soda bottles, and pharmaceutical pill bottles, this equipment seamlessly integrates into high-speed production lines. With a false rejection rate of less than 0.5%, it minimizes waste while maintaining operational efficiency. Equipped with user-friendly controls and an adaptable sensor carrier, the HEUFT Logic is engineered for ease of operation and maintenance, supporting continuous, automatic monitoring. Highly configurable, it meets diverse packaging demands, and its compact design facilitates straightforward integration into existing systems, helping to streamline your quality assurance processes.

Benefits

  • Enhances production line efficiency by removing incomplete cases.
  • Reduces the risk of recalls with precise fault detection.
  • Protects data integrity with secure, code-protected user access.
  • Streamlines integration with compact, adaptable design.
  • Minimizes waste with a low false rejection rate under 0.5%.

General


Applications
Food,Pharma,Beverage,Full containers
End products
Cardboard packaged food products,Bottled water,Pharmaceutical pill bottles,Glass soda bottles,Cardboard packaged snacks,Jarred sauces,Canned beverages,Vitamin supplement containers
Steps before
Filling,Packing
Steps after
Sterilization,Labelling,Packing,Distribution
Input ingredients
full cases,cases,cardboard boxes,trays,bottles,jars,cans
Output ingredients
faulty full cases,incomplete cases,faulty crates,faulty cardboard boxes,faulty trays,faulty shrink wrap packages
Market info
HEUFT is known for its expertise in inline quality inspection systems and automation solutions for the food, beverage, and pharmaceutical industries, with a reputation for innovation and reliability in ensuring product safety and integrity.

Technical Specifications


Detection type
Optical / Electromagnetic
Automation
Fully Automatic
Rejection System
HEUFTxcase
Adjustment Capability
Height adjustable sensor carrier
Content Verification
Continuous Check
Rejection Rate
False rejection rate < 0.5%
User Interface
Multi-segment LED display
Capacity
Adaptable to varied case sizes
Integration
Compact,space-saving construction
Maximum integration density
High degree of reliability

Operating Characteristics


Working mechanism
Optical or electromagnetic procedure
Integrated steps
Continuous check after packer
Automation level
Automated tracking and rejection
Changeover time
Adjustable height and sensor system
Fault rejection method
Conveyor stop or rejection system
Cross-language operation
Multi-segment display

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Bottles,jars,cans

Physical Characteristics


Footprint
Compact,space-saving construction
Adjustable Height
Vertically adjustable detection units
Integration
Simple integration into existing lines
Control Panel Type
Multi-segment display
Sensor Carrier Position
Above the conveyor

Custom Options


Sensor system adaptability
Height adjustable
Integration flexibility
Conveyor integration
Control panel type
Multi-segment LED display
Display language
Multi-language support
Rejector type
Customizable for cases,trays,boxes
User access control
Special access codes
