Fruit and vegetable drying equipment

Achieve optimal moisture control for your fruits, vegetables, and herbs with versatile drying solutions that enhance shelf life and preserve flavor, essential for seamless integration in any dehydration process.

Dehydrates and Cures Fruits and Vegetables

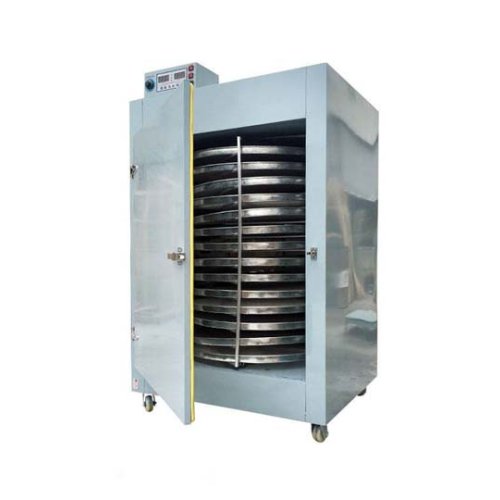

The Small Stainless Steel Fruit Drying Oven from Taizy Food Machine is a robust dehydrator engineered for diverse applications across the food, pharmaceutical, and agricultural sectors. Utilizing a hot air circulation system, it efficiently dehydrates fruits, vegetables, herbs, and more, translating high moisture content into shelf-stable dried goods. The oven’s stainless steel construction offers superior corrosion resistance, crucial for handling various ingredients. This equipment supports energy-efficient operations through electric or steam heating options, catering to operational preferences. Its design includes multiple tray configurations, providing flexibility for batch processing, while automated controls ensure consistent drying conditions, safeguarding product quality. Ideal for industries demanding reliable moisture control, this oven enhances processing throughput without compromising energy use.

Benefits

  • Enhances product shelf-life by efficiently reducing moisture content in various materials.
  • Lowers operational costs through energy-efficient heating methods and automated temperature control.
  • Minimizes spoilage risks with consistent, uniform drying and reduced temperature variation.
  • Customizable tray configurations improve processing flexibility for diverse batch sizes.
  • Durable stainless steel construction ensures longevity and minimal maintenance expenses.

General


Applications
Food,Medicine,Fruits,Agricultural products,Herbs,Spices,Vegetables,Aquatic products,Light industry products
End products
Dehydrated corn kernels,Dehydrated carrot chips,Dried basil leaves,Dried seaweed sheets,Dried fish snack strips,Herbal supplements,Sun-dried tomatoes,Dried apple slices,Ground black pepper
Steps before
Washing,Sorting,Peeling,Cutting,Pre-treatment
Steps after
Packing,Storage,Transportation
Input ingredients
fresh fruits,fresh vegetables,medicine,herbs,spices,high-humidity materials
Output ingredients
dehydrated fruits,dehydrated vegetables,dried herbs,dried spices
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Capacity
60–6000 kg/time
Power
6–96 kW
Fan power
0.45–1.8 kW
Tray size
640*640*45 mm
Cart size
940*700*1420 mm
Machine size
1410*1200*2140 mm to 4360*2160*2270 mm
Drying temperature
50-120°C
Water evaporation rate
100-550 kg/h
Automation
High degree,fully automated feeding and discharge
Operating temperature
50-120℃
Belt width
1.2–2 m
Drying section length
8–10 m
Volume (㎡)
1.3–10.3 ㎡
Mesh belt
Automatic feed and discharge
Total power
21.2–27.7 kW
Weight
3800–6800 kg

Operating Characteristics


Working Mechanism
Hot air circulation
Drying Method
Dehydration using hot air
Batch vs Continuous Operation
Batch / Continuous
Automation Level
High degree of automation
Temperature Control
Automatic temperature sensing
Humidity Control
Automatic humidity control
Energy Efficiency
High thermal efficiency
Material Handling
Automatic feeding and discharging
Maintenance and Cleaning
Low maintenance,cleanable

Material Compatibility


Corrosion resistance
High-quality stainless steel
Heat resistance
Up to 120°C
Biological compatibility
Suitable for food processing
Cleanability
Easy to clean surface
Abrasion resistance
Durable quartz infrared heating tube

Physical Characteristics


Machine footprint
1410*1200*2140 mm to 4360*2160*2270 mm
Tray size
640*640*45 mm
Cart size
940*700*1420 mm
Mesh Belt Width
1.2–2 m
Length of drying section
8–10 m

Custom Options


Control panel type
Manual / Digital / Touch screen
Material
Stainless steel
Tray or belt configuration
Fixed / Removable
Size configuration
Customizable to capacity
Exit method
Automatic discharge / Manual
Design type
Compact / Modular
