Form, fill, and seal system for single-use pouches
Achieve precise portion control and secure sealing with an integrated system designed for the fast-paced needs of liquid and powder pouch packaging, ensuring efficiency and reliability in your production line.
Forms, Fills, and Seals Single-Use Pouches

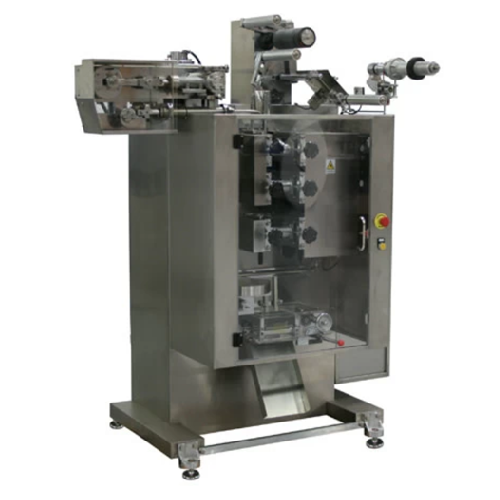

The Accu-Pack Series from Accutek Packaging is engineered to meet your single-use pouch packaging needs in food, personal care, and cosmetic industries. This robust machine excels in forming, filling, and sealing pouches with precision and speed. With a PLC control system and color touch screen interface, setup and operation are streamlined, ensuring minimal downtime. The Accu-Pack processes up to 110 pouches per minute, accommodating fill volumes of 8-60 mL within pouch dimensions of 30-180 mm in length and 30-90 mm in width.
Equipped with a stainless steel construction, the system provides durability and corrosion resistance essential for diverse applications, including ketchup, lotions, shampoos, and powdered mixes like spices and protein shakes. It features a volumetric filling module and optional auger filling for powders, offering versatility for various product types. Seamlessly integrate this machine into your production line, benefiting from efficient resource use and continuous operation. Additional options like date coding and easy-rip opening tabs enhance the functionality. The Accu-Pack Series supports customization to suit specific production demands, backed by engineering expertise.
Benefits
- Enhances production efficiency with continuous high-speed operation up to 110 pouches per minute.
- Minimizes downtime through intuitive PLC-controlled interface for quick setup and adjustments.
- Ensures precise product portioning with volumetric and optional auger filling capabilities.
- Provides durable performance with stainless steel construction, suitable for various product formulations.
- Offers flexible packaging solutions with customizable pouch sizes and features like easy-rip tabs.
- Applications
- Ketchup,Chili powder,Shampoos,Soy sauce,Spices,Powdered drink mixes,Lotions
- End products
- Chocolate protein shake mix,Reduced sodium soy sauce,Anti-dandruff shampoo,Tomato ketchup,Moisturizing lotion,Smoked paprika powder,Curry powder
- Steps before
- Film Loading,Product Preparation,Auger Filling Setup
- Steps after
- Packing,Date/Lot Code Embossing,Product Separation
- Input ingredients
- heat sealable film,powdered products,ketchup,lotions,shampoo,soy sauce,chili powder,spices,powdered drink mixes
- Output ingredients
- sealed plastic pouch packages,single use packets,ketchup packets,lotion packets,shampoo packets,soy sauce packets,powdered product packets
- Market info
- Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.
- Automation
- PLC-controlled
- Filling speed
- Up to 110 PPM
- Filling volume
- 8-60 mL
- Film Width
- 20 – 90 mm
- Film Thickness
- 0.4 mm / 110 micron
- Packet Length
- 30-180 mm
- Packet Width
- 30-90 mm
- Material
- Stainless Steel
- Power Requirements
- 220V – 20 amp single phase
- Weight
- 450 kg / 990 lbs
- Dimensions
- 57” L x 33.5” D x 98.5” H
- Automation level
- PLC-controlled
- Batch vs. continuous operation
- Batch
- Changeover time
- Minimal due to touch screen controls
- Cleaning method
- Sanitary stainless steel construction
- Energy efficiency
- Efficient operation with minimal wastage
- Filling speed
- Up to 110 PPM
- Corrosive resistance (e.g. acids)
- Stainless steel
- Cleanability
- Easy to clean surfaces
- Density/particle size
- Suitable for powders and granules
- Product Form
- Powder / Liquid
- Packaging Type
- Pouch / Sachet
- Viscosity
- Low to high viscosity
- Temperature Sensitivity
- Heat sensitive materials
- Product Sensitivity
- Abrasion / Corrosive materials
- Package Size
- Small single-use
- FDA compliance
- Yes
- GMP compliance
- Yes
- CE marking
- Yes
- 3A Sanitary Standards
- Applies due to stainless steel construction
- EHEDG certification
- Likely,for sanitary equipment
- ATEX certification
- Not applicable
- Machine Footprint
- 57” x 33.5”
- Machine Height
- 98.5”
- Weight
- 450 kg / 990 lbs
- Discharge Method
- Packet separation
- Film Width
- 20 – 90 mm
- Film Thickness
- 0.4 mm / 110 micron
- Control panel type
- Advanced touch screen controls
- Module options
- Auger filling module
- Sealing module configuration
- Adjustable from 30 to 90 mm
- Hopper size
- Extended hoppers available
