Food spraying solution for various products

Streamline your food processing with a versatile sprayer that handles everything from sauces to fillings, ensuring precise application and reducing reliance on single-use aerosol canisters.

Applies Liquids and Flock Coatings

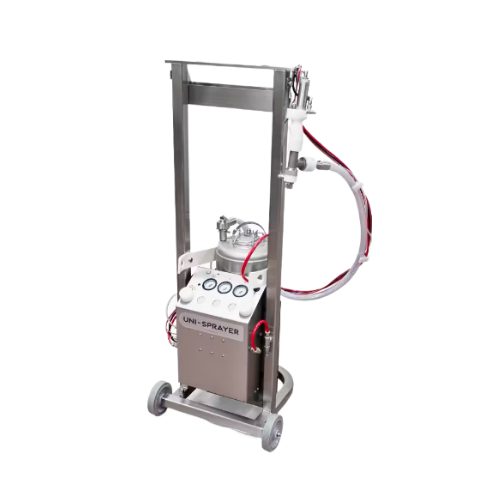

The Uni-Sprayer from Unifiller Systems is a versatile and portable solution tailored for food and bakery manufacturers needing precise liquid applications. This machine effectively sprays and flocks a variety of liquids, from sauces and oils to toppings and fillings, ensuring consistent coverage and reducing manual intervention. Its operator-dependent design includes a food-grade, light, and flexible braided hose system with interchangeable tips, accommodating different spray patterns and product viscosities. The 5-gallon pressurized tank supports varied liquids, while the mobile frame allows for convenient movement within production spaces. With air power up to 100 psi, it handles particulates up to 1mm with an optional flocker nozzle. Cleaning and maintenance are streamlined thanks to its easy washdown capability and tool-free design, making it a practical addition to your line. Ideal for enhancing efficiency in food processing and bakery operations, the Uni-Sprayer can be integrated into existing production lines, providing significant savings over single-use aerosol systems.

Benefits

  • Enhances product consistency by ensuring uniform application across diverse liquids.
  • Lowers operational costs by eliminating the need for disposable aerosol canisters.
  • Increases flexibility with interchangeable spray tips for various patterns and viscosities.
  • Supports easy relocation and setup due to its compact, portable design.
  • Simplifies maintenance and reduces cleaning time with a tool-free, easy-washdown design.

General


Applications
Sauces,Wrap toppings,Bakery applications,Pet food,Cheese,Condiments,Pizza toppings,Pan release oil,Fillings,Food spraying
End products
Mustard dosing,Butter coating,Chicken,Cream cheese filling,Rice pet meal,Mozzarella sprinkle,Salmon feline entrée,Pan spray coating,Tuna,Nacho cheese topping,Marinara sauce layer,Bbq sauce spread
Steps before
Preparation,Mixing,Loading Ingredients
Steps after
Coating,Packaging,Labeling
Input ingredients
pan release oil,cheese,fillings,sauces,condiments,mustard,tomato sauce,BBQ sauce,butter
Output ingredients
sprayed pan release oil,sprayed cheese,sprayed fillings,sprayed sauces,sprayed condiments,flocked pizzas with condiments,flocked wraps with sauces
Market info
Unifiller Systems is known for manufacturing innovative and precise food processing and bakery equipment, specializing in automated portioning and depositing solutions that enhance efficiency and consistency for bakeries and food production lines globally.

Technical Specifications


Air Power
100 psi (6.9 Bar)
Particle Size with Flocker Nozzle
Up to 1mm
Tank Capacity
5 US Gallon (19 L)
Washdown Capability
Easy Washdown
Speed
Operator Dependent
Deposit Range
Dependent on Tank Pressure and Product's Viscosity

Operating Characteristics


Automation level
Manual / Operator Dependent
Batch vs. continuous operation
Batch
Cleaning method
Easy Washdown
Changeover time
No tools required
Energy efficiency
Use with or without atomizing air

Material Compatibility


Cleanability
Easy Washdown
Density/particle size
Handles particulates up to 1mm

Physical Characteristics


Tank size
5 US Gallon (19 L) pressurized tank
Machine footprint
Compact,portable

Custom Options


Interchangeable tips
Different products and patterns
Tank capacity
5 US Gallon (19 L) pressurized
Mobile frame
Enclosed pneumatics
