Fluidizing bed blending silo for powder mixing

Optimize your batch mixing process with a fluidizing bed blending silo, designed to enhance homogenization and degassing of fluidizable bulk materials with exceptional energy efficiency.

Homogenizes and Degasses Fluidizable Powder Materials

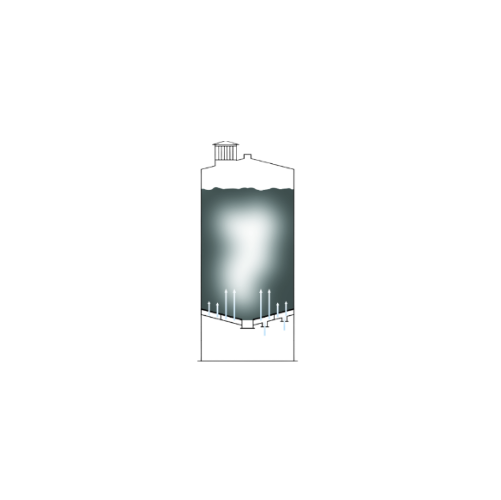

The Fluidizing Bed Blending Silo ZSD from Zeppelin Systems is specifically designed for the efficient mixing and homogenization of fluidizable bulk materials, ranging from flour to elastomer composites. Utilizing a fluidizing gas flow, usually air, it allows for gentle mixing through random relative movements of particles, making it ideal for powders prone to breakage. Its design optimizes aeration across different inflow zones to enhance mixing efficiency and reduce processing times, effectively handling large batch operations with minimal energy use. The system is suitable for various industries, including rubber and tire, food, and plastics, capable of processing substantial quantities of materials under batch operations. Integrated automation support allows seamless integration into existing control systems, with the opportunity for further customization tailored to specific operational needs. The ZSD model is built with durable materials to ensure reliability and longevity, adhering to industry standards and offering easy maintenance for continuous operational readiness.

Benefits

  • Provides efficient mixing with minimal energy consumption, saving operational costs.
  • Protects delicate powders and bulk materials from wear due to gentle fluidization.
  • Enhances product quality through thorough homogenization and effective degassing.
  • Integrates seamlessly into existing production lines, streamlining operations.
  • Accommodates large batch sizes, increasing production capacity.

General


Applications
Food industry,Fluidizable bulk materials,Chemical industry,Plastics,Rubber and tire industry,Powders
End products
Cornstarch,Powdered sugar,Polypropylene powder,Elastomer composites,Flour,Polycarbonate granules,Tire compound batches,Carbon black,Talcum powder,Pvc powder
Steps before
Grinding,Drying,Particle Size Reduction
Steps after
Degassing,Packing,Blending
Input ingredients
fluidizable bulk materials,particle sizes less than 500 μm,powder,fluidizing gas,air
Output ingredients
homogenized bulk material,degassed product,large quantities of mixed powder
Market info
Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.

Technical Specifications


Particle size
≤ 500 μm
Batch operation
Yes
Aeration variability
Different inflow zones
Energy consumption
Minimal

Operating Characteristics


Batch vs. continuous operation
Batch
Fluidizing gas type
Air
Mixing method
Fluidization
Aeration control
Variable
Energy efficiency
Minimal energy consumption
Product compatibility
Fluidizable powders
Degassing capability
Yes

Material Compatibility


Density/particle size
< 500 μm

Product type Characteristics


Agglomeration Risk
Low

Physical Characteristics


Tank shape and size
Fluidizing bed design
Feed/discharge method
Aeration for fluidization
Basin or cone design
Fluidizing bed
Particle size compatibility
Less than 500 μm

Custom Options


Control panel type
PLC / HMI / Touchscreen
Integration possibilities
SCADA / MES / ERP systems
Discharge method
Gravity / Pneumatic
Footprint size
Compact / Modular
