Fluid bed system for granulation and coating

Optimize your production with a multi-purpose fluid bed system designed for efficient granulation, coating, and drying processes, enhancing product quality and process scalability.

Processes Granules and Powders Through Fluid Bed Coating

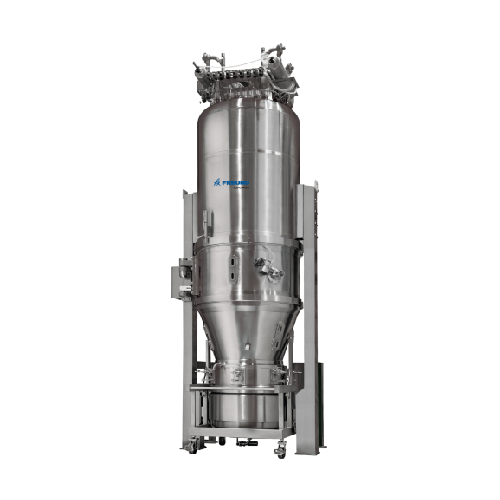

The FC-MX FLO-COATER® from FREUND is a dynamic fluid bed system engineered to excel in granulation and coating applications. Designed specifically for the pharmaceutical, nutraceutical, and chemical industries, it optimizes fluid bed processing with its multi-purpose capabilities. The system’s scalability from 20L to 1900L suits both pilot and full-production environments, making it ideal for handling a wide range of products, including tablets, capsules, and coated pellets. Equipped with advanced features like the patented Wurster Accelerator System, it reduces process times while ensuring efficient product movement through its tapered expansion chamber. Integration is streamlined through automated control options like the COMPU™ system, and the EcoClean™ technology enhances energy efficiency. Constructed with 12-bar pressure-tested durability, it complies with strict industry standards, including GMP, and offers various material options for chemical resistance. The FC-MX FLO-COATER® provides comprehensive cleaning solutions through self-cleaning filters and inline PAT monitoring, supported by FREUND’s extensive process development and engineering services.

Benefits

  • Accelerates processing time with the patented Wurster Accelerator System.
  • Enhances energy efficiency through EcoClean™ technology.
  • Simplifies cleaning and maintenance with self-cleaning and removable filters.
  • Ensures compliance with GMP and FDA standards for safe pharmaceutical production.
  • Accommodates diverse product types with scalable capacities and flexible configuration options.

General


Applications
Vitamins,Supplements,Fine chemicals,Detergents,Nutraceuticals,Coating materials,Biofuel,Pharmaceuticals
End products
Coated detergent powder,Granules,Vitamin supplements,Fine powder chemicals,Coated pellets,Tablets,Biofuel granules,Capsules,Dietary supplements
Steps before
Emulsification,Grinding
Steps after
Sterilization,Packing,Tablet Pressing
Input ingredients
solution coating,suspension coating,dry polymer layering,powder layering
Output ingredients
granulated materials,coated particles,spherical granules
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


System Capacity
20L to 1900L
Top Spray Granulation
Yes
Bottom Spray
Solution/Powder Coating
Wurster Accelerator System
Patented
GRANUREX® Rotor Technology
Patented
Pressure Tested Construction
12 Bar
Airflow and Spray Rates
Increased Product-To-Filter Distance
EcoClean™ Technology
High Pressure – Low Volume Systems
Filter Design Options
Polyester,Stainless Steel,Bag (Single/Double),Cartridge
Cartridge Filters
Particle Retention up to 2 Micron
Containment Options
Smart-Safe™ Optional
Control System
Color Touch Screen,Automatic (Recipe Driven) and Manual Mode,Optional COMPUTM
Automated Control System
21 CFR Part 11 Data and Recipe Handling System
Product Handling
Mechanical,Vacuum,or Gravity
Real-Time Monitoring
Optional Inline PAT Monitoring
Moisture and Drying Analysis
Real-Time Optional

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Manual / Automatic (Recipe Driven)
Cleaning method
EcoClean™ Technology / Removable Cartridge Filters
CIP/SIP
Single Point Connection For Cleaning Solutions
Changeover time
Reduced Process Times
Energy efficiency
High Pressure – Low Volume Systems

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Pharmaceutical/food grade
Cleanability
Easy CIP/SIP
Corrosive resistance (e.g. acids)
Stainless steel 316L
Density/particle size
Suitable for various densities

Product type Characteristics


Flexibility in product size
20L to 1900L
Coating options
Top spray,Bottom spray,Wurster coating
Drying capability
Yes
Granulation capability
Spherical granulation,Solution/suspension coating
Process integration
Yes,GRANUREX® technology
Cleaning efficiency
EcoClean™ Technology,Self cleaning/removable cartridge filters
Pressure resistance
12 Bar Pressure Tested Construction


ISO Certification
ISO 9001
Pressure Tested
12 Bar Pressure Tested Construction

Physical Characteristics


Machine footprint
In-Wall Design
Construction
3-Piece Construction
Tapered Expansion Chamber
Improved Product Movement
Scalable Capacities
20L to 1900L
Product Containers Size Range
20L to 1570L
Construction Pressure Rating
12 Bar Pressure Tested

Custom Options


Control panel type
Color Touch Screen Control System
Automation system
Automatic (Recipe Driven) and Manual Mode
Automated Control System
21 CFR Part 11 Data and Recipe Handling System
System Configuration
Scalable Capacities from 20L to 1900L
Filter Design Options
Polyester,Stainless Steel,Bag (Single/Double),Cartridge Filters
Cleaning Solutions
EcoClean™ Technology,Self Cleaning/Removable Cartridge Filters
Containment Options
Smart-Safe™ Containment Optional
Real Time Analysis
Optional Inline PAT Monitoring,Real Time Moisture and Drying Analysis
System Integration
Single Point Connection For Cleaning Solutions
