Fluid bed combo for granulation and coating

Achieve seamless granulation and coating with batch and high-speed operations, ensuring efficient moisture control and precise layering for diverse pharmaceutical and nutraceutical applications.

Processes and Coats Pharmaceutical and Nutraceutical Products

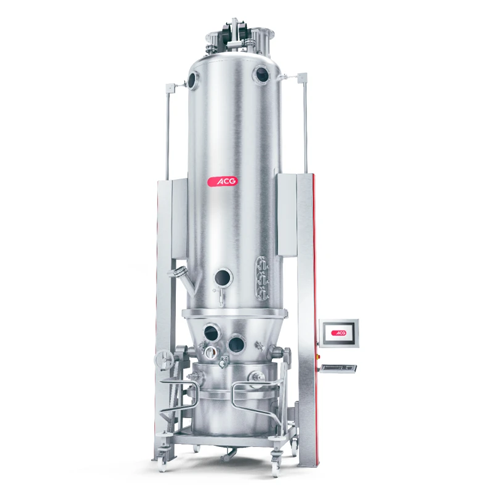

The FBC 1800 X•ONE from ACG is a versatile fluid bed combo designed to optimize pharmaceutical and nutraceutical production. This machine specializes in drying, granulation, and coating, employing advanced Wurster and tangential spray processes for precision. It serves manufacturers of tablets, capsules, and powders, processing up to 1800 liters, and integrates seamlessly into batch or pilot operations. With its 12-bar pressure shock-resistant system and safety features like QASV and inflatable seals, it ensures high safety standards and complies with ATEX and GAMP 5. Its energy-efficient design and exclusive command process control system enhance productivity and ease of use, while the patented Düsen-Schlick GmbH nozzles ensure uniform results. Cleaning is simplified with its wash-in-place systems, making it an ideal choice for demanding production environments.

Benefits

  • Ensures operator safety with rapid pressure containment and shock-resistant design.
  • Facilitates faster product changeovers, enhancing production efficiency.
  • Complies with stringent pharmaceutical regulations for reliable and safe operations.
  • Enhances process control, ensuring consistent product quality.
  • Streamlines cleaning processes, reducing downtime between production runs.

General


Applications
Vitamins,Supplements,Nutraceuticals,Pharmaceutical powders,Pharmaceuticals
End products
Ibuprofen tablets,Multivitamin capsules,Fish oil softgels,Vitamin c tablets,Antioxidant powders,Herbal extract capsules,Probiotic supplements,Calcium tablets,Protein supplements,Paracetamol tablets
Steps before
Material Loading,Solution Preparation,Wet Granulation Preparation
Steps after
Drying,Wurster Coating,Granule and Pellet Processing,Final Product Inspection
Input ingredients
bulk materials,wet mass,granules
Output ingredients
dry granules,coated particles,granulated products
Market info
ACG World is known for manufacturing capsules and capsule filling machines, providing integrated pharmaceutical solutions with a strong reputation for innovation, quality, and comprehensive service offerings in the pharmaceutical manufacturing industry.

Technical Specifications


Working volume
525–1956 l (top-spray granulation),180–1185 l (Wurster coating)
Batch size
up to 1800 l
Pressure shock resistance
12-bar
Explosion containment time
20 milliseconds
Low-pressure safety
4.5 bar
Compliance
ATEX,GAMP 5,21 CFR Part 11

Operating Characteristics


Operating Mechanism
Fluid bed technology
Batch vs. continuous operation
Batch
Automation level
Intuitive,secure monitoring and control
Cleaning process
Wash-in-place (WIP)
Pressure resistance
12-bar pressure shock-resistant
Explosion containment
Within 20 milliseconds
Applications
Drying,granulation,coating
Customization
Charging,discharging systems available
Safety technology
Maximum Operator Safety Technology (MOST™)
Compliance
Compliant with ATEX,GAMP 5,21 CFR Part 11
Inflatable seals
Safety at low pressure (4.5 bar)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Batch Size
Up to 1800 liters


ATEX certification
Directive 2014/34/EU
GAMP compliance
GAMP 5
FDA compliance
21 CFR Part 11

Physical Characteristics


Working volume
180 l – 1956 l
Pressure system
12-bar shock-resistant
Size/Capacity
1,800 l
Batch size
Up to 1800 l
Design
Non-vented,fully contained design
Inflatable seals
X•ONE inflatable seals
Customisation options
Charging,discharging,WIP systems
Rotor attachments
Available (R series)
C-flanges
Unique design to prevent explosion pressure transfer
