Flexible bag case packer with integrated case erector

Streamline your secondary packaging process with an efficient solution that integrates top and side loading of flexible bags with a robotic case erecting system, optimizing floor space and boosting throughput.

Packs and Erects Cases for Solid Products

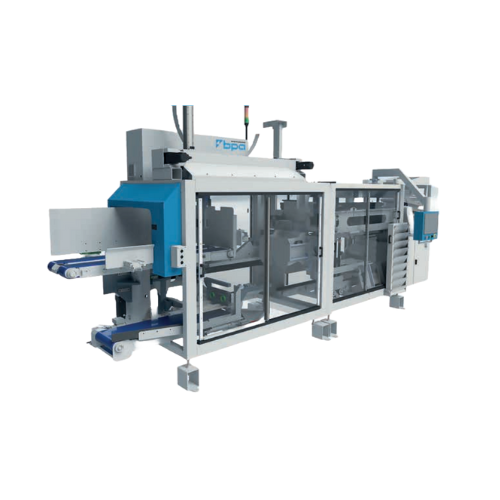

The CubeMaster 300i from Blueprint Automation harmonizes gravity-based case packing and robotic case erecting to optimize packaging operations across bakery, dairy, and frozen produce sectors. This equipment features a unique integration of a BPA robotic case erector, which reduces the need for mezzanines and maximizes floor space. It handles various solid product types seamlessly, from bread rolls and chocolate bars to frozen peas and protein bars, ensuring high-speed, continuous automated operations. Offering flexibility in horizontal pack patterns, it accommodates your production line’s specific needs. The system is crafted to enhance throughput with its ability to automatically load and square case blanks, maintaining efficiency even with imperfect stacks. The CubeMaster 300i is ideal for environments requiring robust, high-speed secondary packaging solutions with minimal maintenance requirements.

Benefits

  • Enhances operational efficiency by combining case packing and erecting in one compact system.
  • Saves floor space and construction costs with integrated robotic case erector, eliminating mezzanine requirements.
  • Increases productivity with seamless continuous operation and high-speed throughput.
  • Reduces maintenance time due to fewer mechanical, electrical, and pneumatic components in its gravity-driven system.
  • Accommodates various solid product types and packaging configurations, providing flexible production solutions.

General


Applications
Seafood,Frozen fruit,Snacks,Pet food,Protein,Bakery,Confectionery,Fresh produce,Frozen vegetables,Dry food,Iqf chicken,Beef,Dairy products,Dairy
End products
Bread rolls,Cheese slices,Pasta boxes,Shrimp trays,Protein bars,Yogurt cups,Frozen peas,Potato chips,Chocolate bars,Iqf chicken thighs,Dry cat food,Frozen berry mix,Ground beef packs,Lettuce bags
Steps before
Product Packaging,Individual Item Grouping,Product Preparation
Steps after
Shipping Container Loading,Case Erecting,Case Packing
Input ingredients
flexible packages,fresh vegetables,frozen vegetables,fruit,IQF chicken,beef,seafood,dairy products
Output ingredients
packed cases,secondary containers,shipping containers
Market info
BluePrint Automation is known for designing and manufacturing innovative packaging automation systems, specializing in end-of-line robotic case packing solutions for various industries, enhancing operational efficiency and product handling with a strong reputation for quality and innovation.

Technical Specifications


Pack pattern versatility
Virtually any horizontal
Packing speed
High throughput
Automation
Integrated robotic case erector
Case loading
Automatic
Floor space utilization
Optimized
Case forming orientation
Short or long side leading

Operating Characteristics


Working mechanism
Gravity system
Integrated steps
Case erecting and packing
Automation level
Automatic case erector
Space utilization
Optimized floor space
Operation flow
Inline continuous
Types of loading
Top and side loading

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product form
Flexible bags
Product state
Fresh / Frozen
Product type
Vegetables / Fruit / IQF chicken / Beef / Seafood / Dairy
Packaging orientation
Horizontal / Vertical
Case loading method
Top and side loading
Case type
Blank cases

Physical Characteristics


Machine footprint
Compact
Integration type
Top and Side Loading
Discharge method
Conveyor
Case erector type
Robotic
Stacking system
Automatic

Custom Options


Integration possibilities
Robotic case erector integration
Compact footprint
Optimized floor space utilization
