Flat-forming blister packager for small production batches

Ideal for pharmaceutical and nutraceutical firms seeking efficient packaging, this machine enhances your blister pack production with precise forming and sealing capabilities, handling sensitive solid dosage forms seamlessly in short-run batches.

Forms and Seals Blister Packs Intermittently

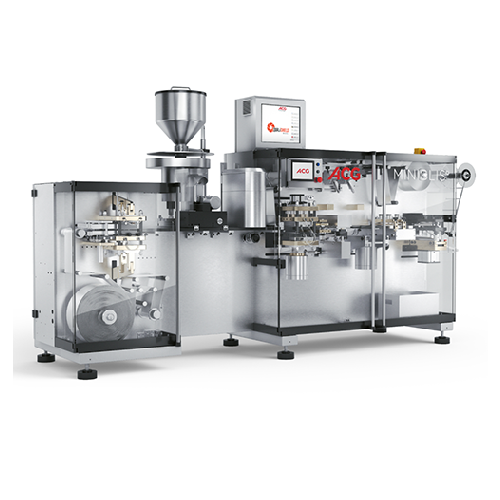

ACG’s MINIBLIS PLUS is a versatile flat-forming, flat-sealing intermittent-motion blister packaging machine designed for packaging sensitive solid dosage products. This equipment excels in creating blister packs for tablets and capsules like aspirin, Vitamin D, and probiotic supplements. With support for both thermoforming and cold-form foil applications, it suits a wide range of pharmaceutical and nutraceutical demands, accommodating short production runs and R&D settings.

The MINIBLIS PLUS operates with a forming cycle of up to 25 cycles/min for thermoforming and 20 cycles/min for cold-forming, featuring forming depths of up to 12 mm and 9 mm respectively. Its compact design integrates seamlessly with production lines, featuring an interactive human-machine interface for ease of use and low power consumption, ensuring a reduced total cost of ownership.

Material options include PVC, PVC/PVdC, and cold-form aluminum foils, providing versatility in production. Its nitrogen-purging capability is ideal for handling moisture-sensitive products. The MINIBLIS PLUS complies with industry standards, ensuring it meets stringent pharmaceutical regulatory requirements, making it a robust solution for modern packaging needs.

Benefits

  • Enhances production versatility with the ability to handle multiple blister configurations.
  • Protects moisture-sensitive products via nitrogen-purging capabilities.
  • Increases space efficiency by delivering higher output per square meter.
  • Lowers operating costs through its low power consumption and reduced total cost of ownership.
  • Ensures seamless integration with existing production lines for streamlined operations.

General


Applications
Hard capsules,Soft gelatin capsules,Solid dosage products,Pharmaceutical tablets
End products
Ibuprofen tablets,Omega-3 softgels,Vitamin d capsules,Digestive enzyme capsules,Fish oil softgels,Probiotic capsules,Multivitamin tablets,Antihistamine capsules,Aspirin tablets,Paracetamol tablets
Steps before
Formulation,Mixing,Granulation
Steps after
Cartoning,Labeling,Vision Inspection
Input ingredients
thermoforming films,cold-form foils,sensitive products,solid dosage products,tablets,hard capsules,soft gelatin capsules,PVC,PVC/PVdC,Triplex (PVC/PE/PVdC),Aclar,cold-form foil (Alu)
Output ingredients
blister packs,packaged tablets,packaged hard capsules,packaged soft gelatin capsules
Market info
ACG World is known for manufacturing capsules and capsule filling machines, providing integrated pharmaceutical solutions with a strong reputation for innovation, quality, and comprehensive service offerings in the pharmaceutical manufacturing industry.

Technical Specifications


Forming cycle (Thermoforming)
Up to 25 cycles/min
Forming cycle (Cold-forming)
Up to 20 cycles/min
Forming depth (Thermoforming)
Up to 12 mm
Forming depth (Cold-forming)
Up to 9 mm
Maximum forming area
156 mm x 96 mm
Forming materials
PVC,PVC/PVdC,Triplex (PVC/PE/PVdC),cold-form foil (Alu)
Lidding materials
Push-through foil,child-resistant foil,peelable (paper)
Nitrogen-purging capability
Yes
Power consumption
Low
Compact footprint
Yes

Operating Characteristics


Forming Cycle
Thermoforming up to 25 cycles/min
Forming Cycle
Cold-forming up to 20 cycles/min
Forming Depth
Thermoforming up to 12 mm
Forming Depth
Cold-forming up to 9 mm
Batch vs. Continuous Operation
Intermittent Motion
Nitrogen-purging Capability
For handling moisture-sensitive products
Multi-feeding Capability
For different products
Integration Capability
With cartoning machines
Hassle-free Integration
With packaging line

Material Compatibility


Thermoforming films
PVC,PVC/PVdC,Triplex (PVC/PE/PVdC)
Cold-form foils
Alu
Lidding materials
Push-through foil,child-resistant foil,peelable (paper)
Specialty films
Aclar (with plug assist)

Product type Characteristics


Packaging film type
Thermoform,cold-form

Physical Characteristics


Machine Footprint
Compact footprint
Maximum Forming Area
156 mm x 96 mm
Forming Depth
Thermoforming

Custom Options


Control panel type
Interactive human-machine interface (HMI) and IPC
Integration possibilities
Capable of integrating with cartoning machines,hassle-free integration with packaging line
Footprint
Compact
