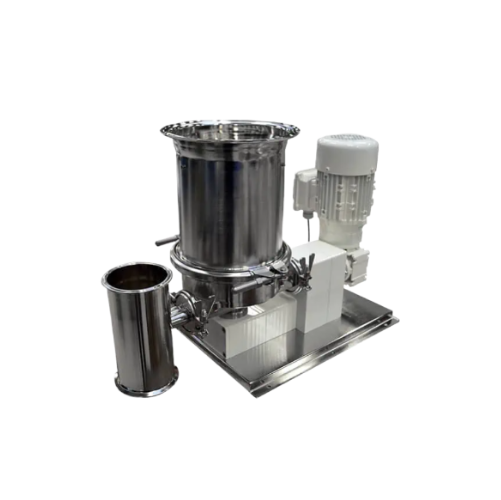

Flat-bottom twin-screw feeder for precise powder feeding

Achieve precise control in powder dispensing with this flat-bottom twin-screw feeder, designed to handle both poorly flowing and free-flowing materials, ensuring consistent feed rates and accuracy critical for quality production processes.

Precisely Feeds Powders in Production Lines

The ZD 22 FB from Three-Tec GmbH is a flat-bottom twin-screw feeder designed to address precise volumetric or gravimetric feeding requirements for poorly flowing and free-flowing powders in pharmaceutical, chemical, and food industries. With its full stainless steel construction, featuring a polished finish down to Ra 0.8/Ra 0.4 µm, it ensures optimal hygiene and corrosion resistance. The feeder integrates effortlessly into your production line, whether for continuous or manual operations, and accommodates a feeding rate of 2.1-420 l/h using 22 mm metering tools. Equipped with a bottom scraper and mesh guard, the ZD 22 FB offers precise feeding essential for producing APIs, vitamin supplements, and enzyme formulations. The unit operates at speeds ranging from 1-500 min-1, supported by load cells of 60/100 kg capacity for stable operation. Certified for pharmaceutical applications, this feeder aligns with stringent GMP standards, and the modular design allows adaptation to specific process requirements.

Benefits

  • Enhances dosing precision, ensuring consistent product quality in sensitive processes.
  • Reduces production downtime with a robust design suited for high-volume applications.
  • Supports GMP compliance, essential for pharmaceutical manufacturing environments.
  • Ensures operational flexibility, suitable for both continuous and manual feeding processes.
  • Optimizes cleaning and maintenance with corrosion-resistant stainless steel construction.

General


Applications
Nutraceuticals,Pharmaceutical powder,Biopharmaceuticals,Fine chemicals
End products
Protein powders,Active pharmaceutical ingredients (apis),Biologic drug substances,Vitamin supplements,Enzyme formulations,Nutrient blends,Fine chemical intermediates
Steps before
Powder preparation,Material batching,Blending,Mixing
Steps after
Quality control,Packaging,Transport to production line,Inventory management
Input ingredients
poorly flowing powder,free-flowing powder
Output ingredients
precisely volumetric feeding,precisely gravimetric feeding
Market info
Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.

Technical Specifications


Feed rate
2.1-420 l/h
Ø Metering tools
22 mm
Voltage | Frequency
110-240 V | 50-60 Hz
Weight
DN200
DN300
≈ 24 kg
Speed
1-500 min-1
Hopper volume
5 l
Load cells
60/100 kg (analog)

Operating Characteristics


Working mechanism
Twin-screw feeding
Integrated steps
Volumetric or gravimetric feeding
Flow type
Precise feeding of poorly flowing and free-flowing powder
Batch vs. continuous operation
Batch / Inline Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Corrosive resistance (e.g. acids)
Full stainless steel

Product type Characteristics


Feeding system type
Twin screw feeders
Feeding system type
Flat-tray feeders
Powder flowability
Poorly flowing and free-flowing powder

Physical Characteristics


Material
Stainless Steel,Ra 0.8/Ra 0.4 µm
Wall thickness
3 mm radius
Hopper volume
5 L
Discharge method
Bottom scraper,mesh guard
Screw diameter
22 mm
Weight
DN200
DN300
≈ 24 kg

Custom Options


Control Panel Type
Available
HMI Type
Available
Integration Possibilities
PLC-compatible
Pharmaceutical Version
Available
Stainless Steel Specification
Ra 0.8/Ra 0.4 µm
Scraper and Mesh Guard
Included
