Filling and sealing solution for pre-formed cups

Optimize your liquid and solid product filling with a continuous-motion system designed for high-speed, hygienic operations. Enhance flexibility with multi-layer presentations and simultaneous format handling, ensuring precision and minimal product loss for a wide range of dairy and food products.

Fills and Seals Multi-Layer Food Products

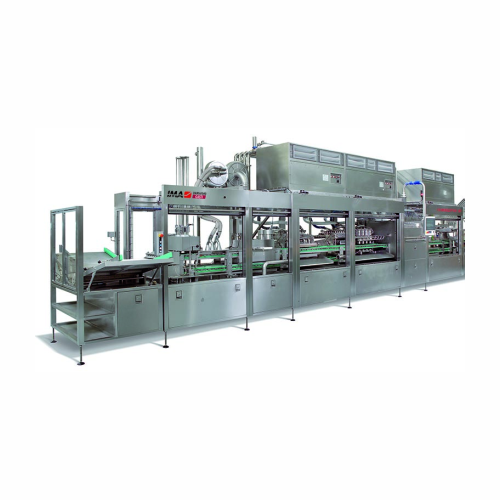

The DOGATHERM COMBISEPTIC from IMA Group specializes in filling and sealing a variety of dairy and food products using a continuous-motion approach. Its modular design supports flexible configurations, accommodating multiple formats and hygiene levels, from ‘clean’ to ‘ultra-clean,’ which are critical for sensitive products like yoghurts and desserts. Capable of handling liquid to pasty products with or without particulates, it manages volumes from 25 to 550 ml and reaches outputs of 9,000 to 18,000 cups per hour.

This machine excels in integrating smoothly into existing lines, handling everything from pre-formed cup dispensing to the application of pre-cut lids. The advanced control system ensures precise dosing, which minimizes product waste and optimizes productivity. With options for varying lid materials, hygiene configurations, and simultaneous multi-format processing, it is adept for industries including dairy, beverage, and confectionery. Built with CIP (Clean-In-Place) systems for efficient maintenance and minimal downtime, it supports high-speed, continuous operations with unyielding reliability and precision.

Benefits

  • Enhances production flexibility by accommodating various cup sizes and product formats.
  • Minimizes product loss with accurate and controlled dosing systems.
  • Streamlines operation with high-speed processing, reaching up to 18,000 cups per hour.
  • Ensures product safety with customizable hygiene levels to meet 'clean' and 'ultra-clean' standards.
  • Reduces maintenance time through integrated Clean-In-Place (CIP) systems.

General


Applications
Sauces,Single-layer desserts,Aerated products,Rice puddings,Custard,Dips,Processed cheese,Cereals,Quark,Desserts,Fermented milk products,Fruit preparations,Multi-layer desserts,Crème fraîche,Soft drinks,Yoghurts,Instant soups,Mousse
End products
Hummus,Kefir,Cornflakes,Cheddar cheese slices,Vanilla custard,Raspberry quark,Panna cotta,Sour cream,Chocolate mousse,Tiramisu,Lemon-lime soda,Vanilla rice pudding,Greek yogurt,Layered fruit parfait,Mango puree,Marinara sauce,Whipped cream toppings,Chicken noodle soup
Steps before
Cup destacking,Particle removal,Dust exhaust
Steps after
Heat sealing,Lid application,Leakage testing,Snap-on lid application,Packing
Input ingredients
pre-formed cups,plain yoghurt,fruited yoghurt,quark,crème fraîche,mousse,custard,dips,processed cheese,plain aluminum foil lids,embossed aluminum foil lids,PET composite film lids,paper composite film lids
Output ingredients
filled cups,sealed cups,processed yoghurt,processed quark,processed crème fraîche,processed mousse,processed custard,processed dips,processed cheese
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Filling volume
25 – 250 ml or 50 – 550 ml
Min./Max. cup height
130 mm
Filling volume pre-/post filler
10- 60 ml or 10 -160 ml or 25 – 280 ml
Nominal output
9,000 – 16,200 cups/h
Round cup Ø
max. 97 mm
Automation
PLC-controlled

Operating Characteristics


Working mechanism
Continuous-motion
Integrated steps
Filling and sealing
Batch vs. continuous operation
Continuous
CIP/SIP
CIP integration
Changeover time
Format-flexible design
Cleaning method
CIP integration
Automation level
PLC-controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Pre-formed cups

Physical Characteristics


Round cup diameter
Max 97 mm
Min./Max. cup height
130 mm

Custom Options


Format flexibility
Multi-layer presentations
Simultaneous filling capability
2 different formats
Clean and ultra-clean execution
Hygienic standards
