Fermentation monitor for alcohol production

Optimize anaerobic yeast fermentations with precise monitoring of carbon conversion rates, enhancing efficiency in ethanol and bioethanol production while facilitating advanced research applications.

Monitors and Analyzes Anaerobic Fermentation Processes

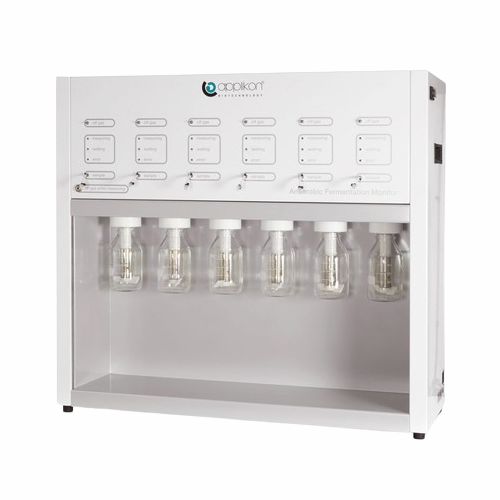

The Applikon Alcohol Fermentation Monitor from Applikon Biotechnology is a robust laboratory system engineered for simultaneous anaerobic fermentations. It uniquely allows precise monitoring and analysis of carbon conversion and gas evolution in up to six parallel fermentations, utilizing magnetically coupled stirrers and Pt-100 sensors for accurate temperature control. Designed for yeast research and alcohol production, this system ensures reliable data for ethanol, bioethanol, and biofuel production. The monitor supports integration with existing laboratory systems, offering user-friendly control and data analysis software that automates report generation. Constructed to handle viscous media, it provides consistent performance in demanding laboratory environments.

Benefits

  • Enhances research efficiency with simultaneous multi-sample fermentation.
  • Provides precise data analysis with automated report generation, facilitating informed decision-making.
  • Reduces operational costs with user-friendly and low-maintenance design.
  • Ensures consistent quality control for alcohol and biofuel production.
  • Offers flexible fermentation with individually controlled parameters for each vessel.

General


Applications
Academic research,Yeast research,Beer production,Potable alcohol production,Bioethanol production,Alcoholic beverages,Biofuel conversion,Wine production,Bio-butanol production,Industrial fermentation,Quality control,Alcohol production
End products
Ethanol,Biofuels,Distilled spirits,Wine,Bioethanol,Whiskey,Lignocellulosic biofuels,Rum,Yeast cultures,Bioplastic precursors,Beer,Vodka
Steps before
Preparation of yeast cultures,Selection of carbon source,Nutrient preparation,Adjusting pH levels,Temperature setting
Steps after
Data analysis,Report generation,Quality control,Product sampling,Fermentation broth disposal
Input ingredients
yeast,carbon source,nutrients,molasses,wort,grape juice,lignocellulose hydrolysates,feedstock substrates
Output ingredients
alcohol,(bio)ethanol,bio-butanol,carbon dioxide,beer,wine,biofuels
Market info
Getinge is known for providing innovative healthcare and life sciences products, specializing in medical technology, infection control, surgical workflows, and critical care solutions. They maintain a strong reputation for quality and technological advancement in these sectors.

Technical Specifications


Total volume (liter)
6 reactors of 500 mL
Minimum working volume (liter)
400 mL
Drive system
Magnetically coupled stirrer
Maximum stirrer speed (rpm)
50 - 1450
Impellers
Marine type
Temperature Measurement
Pt-100 sensor in central stirrer bar
Temperature Control
Heating via central stirrer bar
Temperature range
+5 ˚C (ambient) to 75 ˚C
Dimensions (DxWxH)
330 x 920 x 825 (mm)
Empty Weight (kg)
75 kg

Operating Characteristics


Automation level
PLC / User-friendly control software
Parallel fermentation capacity
Six simultaneous anaerobic fermentations
Batch vs. continuous operation
Batch
Cleaning method
Manual
Individually controlled settings
Stirrer speed and temperature
Report generation
Automatic data analysis and report generation
Magnetic stirrer strength
Strong for handling viscous media
Temperature control
+ 5 ˚C (ambient) to 75 ˚C

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Parallel fermentation capacity
6 simultaneous

Custom Options


Control panel type
User-friendly control software
Integration possibilities
Parallel fermentation system
Stirrer speed customization
Individually controlled
Temperature control
Individually settable
