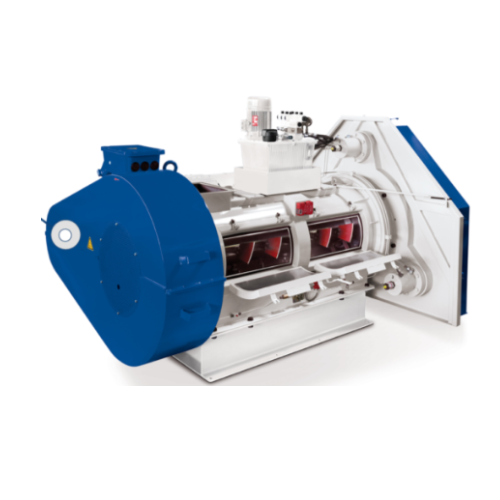

Feed mill compactor for improved pellet quality

Optimize your feed production with a compactor designed to enhance pellet quality by effectively managing steam and liquid absorption, ensuring homogeneity and boosting overall pelleting capacity.

Compacts and Mixes Feed and Food Ingredients

The BOA Compactors from Ottevanger Milling Engineers are designed to enhance your feed and food production line by efficiently compacting and mixing a variety of raw materials. This equipment excels with its patented pre-compacting technology, providing an innovative solution compared to traditional pelleting or expanding processes. With a double-walled mixing chamber, the system precisely introduces steam and liquids, ensuring uniform mixing and superior pellet quality. Its robust construction and adjustable paddles facilitate a hygienic and flexible process across applications that include compound feed, pet food, and soybean processing. Capable of handling continuous and high-speed operations, the compactors integrate seamlessly with existing automation systems, reducing energy consumption and maintenance costs. Available in durable materials like AISI 316, the equipment also features hydraulic controls and V-belt transmission to guarantee precise compaction. Whether producing poultry feed pellets or vitamin and mineral premixes, the BOA Compactors are engineered to meet the diverse needs of animal feed manufacturers, aquafeed producers, and agro-industrial companies.

Benefits

  • Enhances production efficiency with a 10% increase in liquid dosing.
  • Ensures superior pellet quality and consistency through optimal steam and liquid absorption.
  • Reduces energy costs by operating at lower energy consumption compared to traditional pelleting.
  • Offers flexibility in raw material use, supporting a broad range of feed and food applications.
  • Minimizes maintenance efforts and downtime with robust construction and easy-to-clean design.

General


Applications
Pet food,Oilseed processing,Soybean processing,Aqua feed,Concentrates,Premix,Compound feed
End products
Dog kibble,Protein concentrates,Poultry feed pellets,Edible oil cake,Vitamin and mineral premixes,Fish feed pellets,Soy meal pellets
Steps before
Grinding,Mixing,Dosing,Weighing
Steps after
Pelleting,Drying,Cooling,Crumbling,Coating
Input ingredients
steam,liquids,raw materials
Output ingredients
homogeneous mixture,compacted pellets
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Compaction level
3-45 mm adjustable
Capacity
12-25 t/h
Drive
Up to 250 kW
Weight
2450-6000 kg
Temperature
Up to 110° Celsius
Steam inlet size
3"
Liquid inlets size
1½”
Motor power
Electric motor with V-belts
Mixing chamber construction
Double walled,inner AISI 316,outer mild steel

Operating Characteristics


Working mechanism
Hydraulically operated compacting chamber
Integrated steps
Mixing,steam/liquid introduction,compacting
Batch vs. continuous operation
Batch
Automation level
PLC
CIP/SIP
Easy to clean
Cleaning method
Manual
Energy efficiency
Less kWh/Ton
Changeover time
Minimal due to simple design

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Custom Options


Compact footprint
Yes
Control panel type
Available
Discharge method
Hydraulic
Integration possibilities
Existing automation systems
