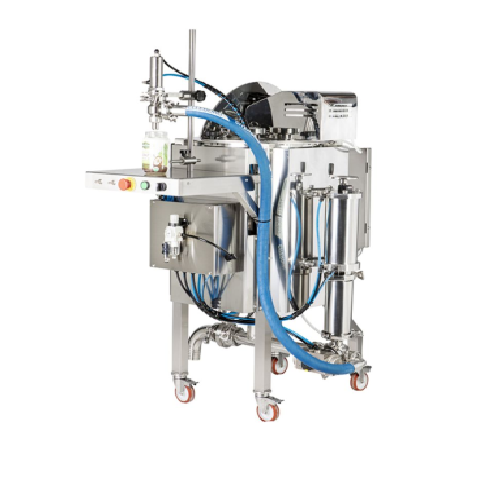

Feed hopper for volumetric feeders

Optimize product consistency while handling a variety of viscosities with this feed hopper, designed to integrate seamlessly with dosing systems, maintaining product integrity during the packaging process.

Mixes, Heats, and Doses Viscous Products

The product loading hopper from Tenco is a custom-built, stainless steel solution designed for seamless integration with piston filling machines. Specializing in handling viscous products like foundations, depilatory waxes, and zinc creams, these hoppers feature a heating system and rotating blade mixer to maintain product consistency. Ideal for cosmetics, food, chemical, and pharmaceutical applications, the hoppers showcase a robust AISI 316L stainless steel construction for excellent corrosion resistance. Available in benchtop or mobile configurations, they support precise dosing requirements. The double-walled design with insulation ensures energy efficiency and maintains dosing temperatures. Configurable options accommodate varied production volumes, while compliance with industry standards ensures safe, hygienic operations.

Benefits

  • Ensures consistent product quality with temperature-controlled mixing and dosing.
  • Enhances versatility by accommodating a wide range of viscosities, from gels to slurries.
  • Minimizes contamination risks with stainless steel construction for hygienic operations.
  • Increases operational efficiency with mobile and benchtop configurations.
  • Supports tailored production needs with customizable volume and configuration options.

General


Applications
Food,Beverage,Cosmetic,Chemical,Pharmaceutical
End products
Gels,Foundations,Liquid glycerine,Depilatory waxes,Masks,Pastes,Lotions,Zinc creams
Steps before
Purification,Pre-mixing,Emulsification
Steps after
Packing,Labeling,Sterilization
Input ingredients
foundations,depilatory waxes,zinc creams,pastes,masks,gels,lotions,glycerine
Output ingredients
packaged products,mixed and heated products,products with pieces in suspension
Market info

Technical Specifications


Material of Construction
AISI 316L stainless steel
Tank Type
Double-walled
Mobility
Benchtop / Wheels
Mixing System
Rotating blades / Pressers
Heating System
Heating band / Double wall with insulation
Volume Customization
Various volumes available

Operating Characteristics


Working mechanism
Double-walled tanks with mixer
Automation level
Manual / PLC options
Batch vs. continuous operation
Batch
Cleaning method
CIP / Manual
Integrated steps
Heating and mixing
CIP/SIP
CIP available

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
High

Product type Characteristics


Mixing capability
Rotating blades / Pressers
Suction facilitation
Integrated with dosers

Physical Characteristics


Tank Material
Mirror polished AISI 316L stainless steel
Tank Type
Double-walled,with heating and mixing system
Mobility
Benchtop or on wheels
Mixing Mechanism
Rotating blades or pressers
Volume Options
Customizable
Discharge Method
Integrated with dosing units
Heating Mechanism
Heating band
Double wall with insulation

Custom Options


Material
Mirror polished AISI 316L stainless steel
Mobility
Benchtop or on wheels
Volume,Shape
Customizable according to customer needs
Mixing System
Rotating blade mixers,pressers
Heating System
Heating band,double wall with insulation
Integration
With volumetric feeders and dosers
Maintenance System
Product maintenance at dosing temperature
