Extruders for animal feed production

Optimize nutritional value and ensure efficient processing of animal and aqua feeds with high-performance extruders, ideal for transforming raw ingredients into uniform products through precise kneading, cooking, and extrusion.

Processes and Densifies Feed Ingredients Efficiently

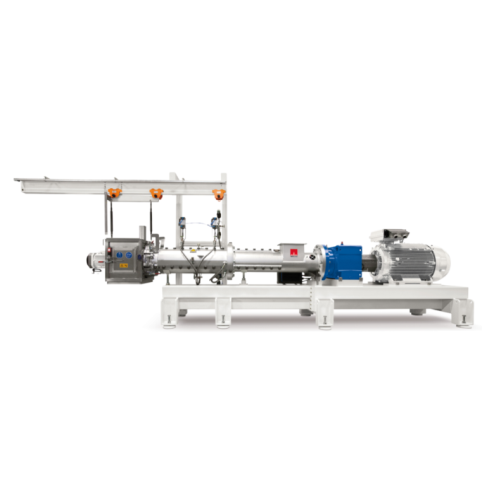

The AL Series from Ottevanger Milling Engineers are robust single-screw extruders designed for processing and densifying feed ingredients. These extruders knead and cook ingredients like pet food, aqua feed, and animal feed, delivering consistent texture and enhanced nutritional value. With processing capacities ranging from 0.5 to 9 tons per hour, they ensure flexibility for various production scales.

The extruders feature direct or V-belt drives for efficient energy use and minimal wear. Easily integrated into existing production lines, these machines facilitate continuous operation through pre-conditioning and extrusion phases. Constructed with durable materials, they offer low maintenance requirements and easy cleaning, fitting seamlessly into demanding industrial environments. Optional customizations and engineering support are available to meet specific processing needs.

Benefits

  • Enhances feed quality by optimizing nutritional value during processing.
  • Minimizes operational costs with low maintenance and easy cleaning features.
  • Increases production efficiency with capacities up to 9 tons per hour.
  • Integrates seamlessly into existing production lines for continuous operation.
  • Customizable configurations to meet specific feed production requirements.

General


Applications
Animal feed,Cereal processing,Pet food,Oil seed processing,Aqua feed
End products
Cereal flakes,Kibble,Cornmeal,Fish pellets,Poultry feed,Soybean meal
Steps before
Grinding,Dosing,Weighing,Pre-conditioning
Steps after
Drying,Cooling,Pelleting,Coating,Sieving
Input ingredients
starchy ingredients,protein-based ingredients
Output ingredients
animal feed,pet food,aqua feed,oil seed processing,cereal processing
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Capacity
0.5–9.0 t/h
Main motor drive
45–400 kW
Cutter drive
1.5–11 kW
Barrel diameter
150–350 mm
Operation type
Continuous
Drive type
V-belt or direct drive
Automation
Easy to control
Space requirements
Minimum
Wear parts cost
Low

Operating Characteristics


Working mechanism
Single screw extrusion
Batch vs. continuous operation
Continuous
Automation level
Easy to control
Cleaning method
Easy cleaning
Space requirements
Minimum space requirements

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Suitable for animal feed
Corrosive resistance (e.g. acids)
High
Cleanability
Easy to clean
Density/particle size
Accommodates various sizes

Physical Characteristics


Machine footprint
Compact
Drive type
V-belt or direct drive
Barrel diameter
150-350 mm
Capacity range
0.5-9.0 t/h
Construction type
Rigid

Custom Options


Drive type
V-belt or direct drive
Space requirements
Minimum
Maintenance
Less downtime
Cleaning
Easy cleaning
