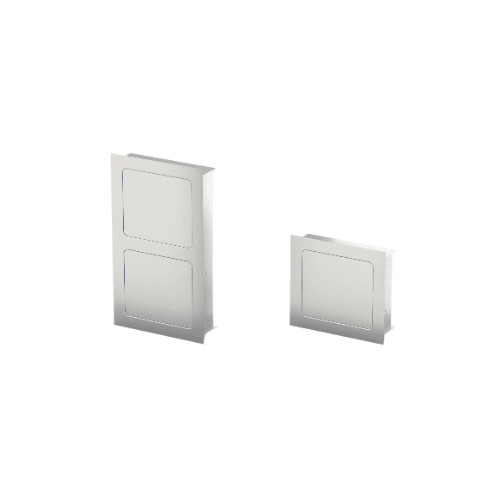

Explosion protection vents for spray dryers

Optimize safety and hygiene in your spray drying operations with advanced explosion protection vents, designed for easy installation and minimal maintenance, reducing downtime and ensuring compliance with stringent industry standards.

Provides Explosion Protection for Spray Dryers

The DRIVENT 2.0 from GEA offers engineered explosion protection for spray dryers, ideal for food, dairy, chemical, and pharmaceutical industries. This system features EHEDG certification, ensuring compliance with hygiene and safety regulations. With an increased vent area and a Viton® gasket for improved chemical resistance, it provides efficient sealing and easy detection. Designed for continuous operation, it fits seamlessly into new installations or retrofits with existing dryers. Its lightweight construction allows risk-free handling, and maintenance is minimized with a recommended five-year service interval. The DRIVENT 2.0 also supports high-temperature applications, reaching up to 200 °C, making it a versatile choice for a wide array of powder production processes. Available in stock to support cost-effective engineering and urgent requirements.

Benefits

  • Enhances production safety by providing EHEDG-certified explosion protection.
  • Lowers total cost of ownership with extended service life and minimal maintenance.
  • Increases efficiency with a 4% larger vent area for optimal operation.
  • Simplifies inspections and replacements, reducing labor and downtime.
  • Ensures product integrity with easy-to-detect, blue-colored gaskets resistant to CIP chemicals.

General


Applications
Food,Chemicals,Agglomerated powders,Uniform powder,Free-flowing powders,Whey powder,Nutritional formula,Milk powder,Dustless powders,Fine particles,Coarse powders,Dairy
End products
Gum arabic,Coffee creamer,Adhesive powders,Baking powder,Infant formula,Spray-dried flavorings,Calcium phosphate,Synthetic resins,Industrial detergents,Chemical catalysts,Powdered drink mixes,Protein supplements,Baked goods ingredients,Whey protein isolate,Cheese powder,Citric acid
Steps before
Purification,Preliminary drying,Mixing ingredients,Formulation preparation
Steps after
Sterilization,Packing,Quality control,Storage
Input ingredients
food ingredients,dairy ingredients,chemical ingredients,whey,milk
Output ingredients
spray dried powders,whey powder,milk powder,nutritional formula,free-flowing powders,agglomerated powders,dustless powders
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Explosion Protection Certification
EHEDG,ATEX,3-A (pending)
Replacement Service Life
5 years
Vent Area Increase
4%
Operating Temperature
Up to 200°C
Gasket Material
Viton®,blue color
Installation Options
Single/Double Module Frame
Integration Type
New or Retrofit Installations

Operating Characteristics


Compression Vent Mechanism
Explosion venting
Installation Flexibility
On-site or workshop
Maintenance Requirement
Minimal,inspected every 5 years
Automation Level
Manual / PLC integration possible
Batch vs. Continuous Operation
Inline Continuous
Cleaning Method
Easy to clean
Retrofit Capability
Compatible with existing and new installations

Material Compatibility


Corrosive resistance (e.g. acids)
Viton® gasket resistance
Cleanability
EHEDG-certified
Density/particle size
Suitable for spray dryers
Biological compatibility
Food and dairy industries

Product type Characteristics


New build or retrofit
Both


EHEDG certification
Certified
ATEX certification
Certified
3-A Sanitary Standards
Pending

Physical Characteristics


Explosion vent type
Single or double module frame
Gasket type
Viton® gasket,blue color
Vent area size
Increased by 4% compared to previous models
Installation position
Wide,high,or upright positions
Material handling
Lightweight design for risk-free handling

Custom Options


Control panel type
PLC / HMI
Module configuration
Single / Double frame
Gasket type
Viton® Blue
Insulation option
Standard / Removable
Installation type
Workshop / On-site
Retrofit compatibility
GEA spray dryers
Operating temperature
Up to 200°C
