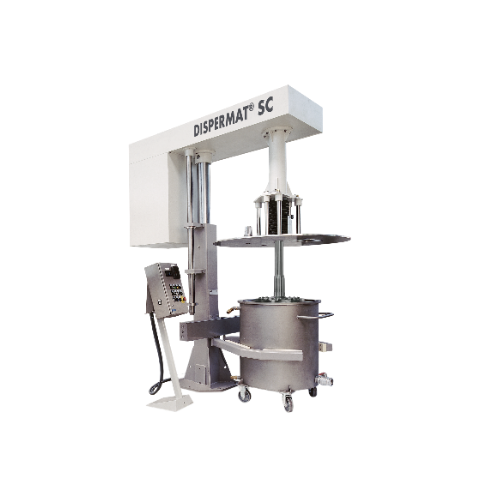

Explosion-proof dissolver for chemical processing

Ensure safe and efficient dispersion in volatile environments with this advanced solution designed to handle large batch sizes and high-viscosity materials under stringent operational conditions.

Safely Dispenses and Mixes Large-Volume Batches

The DISPERMAT® SC6-EX from VMA-GETZMANN is engineered for high-stakes industrial environments, offering robust, explosion-proof capabilities. Utilizing a powerful hydraulic system, it dispenses and mixes large-scale liquid and slurry batches up to 2,000 liters. Ideal for sectors like agrochemicals, automotive coatings, and pharmaceuticals, it ensures precise and repeatable dispersion processes. Integration is seamless with PLC control, allowing for customizable parameters and remote operation. The stainless-steel construction offers excellent corrosion resistance, while options like LED lighting and temperature sensors enhance operational oversight. Certified under ATEX Directive 2014/34/EU, it maintains high safety standards for processing volatile substances. Maintenance is streamlined with accessible components and optional cleaning systems.

Benefits

  • Ensures safe operation in explosive environments with ATEX certification.
  • Enhances product consistency through precise, repeatable dispersion methods.
  • Integrates seamlessly into production lines with advanced PLC control.
  • Supports large-scale batch processing, maximizing production efficiency.
  • Reduces operational costs with robust, corrosion-resistant materials for longevity.

General


Applications
Ceramics,Spice pastes,Printing inks,Food additives,Agrochemicals,Polishing agents,Liquid crystal displays,Construction chemistry,Carbon materials,Cosmetics,Fuel cells,Coatings,Artists' colors,Adhesives and sealants,Automotive paints,Batteries,Pharmaceuticals
End products
Oil paints,Lithium-ion battery electrodes,Recovered carbon black powder,Pesticides,Glazed ceramic tiles,Anti-corrosion paints,Diamond polish,Flavor enhancers,Photopolymer inks,Concrete admixtures,Oled display layers,Automotive base coats,Automotive clear coats,Pem fuel cell membranes,Curry paste,Tablet coatings,Silicone sealants,Herbicides,Epoxy adhesives,Lipsticks
Steps before
Mixing,Grinding,Heating,Pre-dispersion,Material Preparation
Steps after
Coating,Packaging,Quality Control,Final Inspection,Cooling
Input ingredients
paints and varnishes,pigments and additives,printing inks,chemicals,plastics,construction chemicals,electronics materials,adhesives,coatings,pharmaceutical ingredients,cosmetic ingredients,agrochemicals,ceramic materials
Output ingredients
homogeneous dispersion,finely dispersed pigments,finished coatings,processed printing inks,mixed agrochemical solutions,prepared pharmaceutical mixtures,cosmetic formulations,refined ceramic products
Market info
VMA-Getzmann (Dispermat) is known for manufacturing high-quality dispersing, mixing, and milling equipment for laboratories and industrial settings, specializing in engineered-to-order (ETO) solutions with a reputation for innovation and precision.

Technical Specifications


Power
15 – 55 kW
Product Capacity
30 – 2000 litres
Speed
100 – 985 rpm
Torque
876 – 1069 Nm
Container Capacity
500 – 2500 litres
Container Clamping Range
Ø 80 – 150 cm
Container Height
85 – 176 cm
ATEX Protection Class
II 2G Ex h IIB T3 Gb
Height Adjustment
Hydraulic
Control
CN / C / SC / PLC
Weight
4300 kg

Operating Characteristics


Automation level
Manual / PLC / SCADA / C / SC / PLC
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Height adjustment
Hydraulic
ATEX compliance
ZONE 0/1/2 explosion protection

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Agglomeration Risk
Low/Medium/High
Container Shape
Standard/Custom


ATEX certification
Directive 2014/34/EU (ATEX 100a),II 2G Ex h IIB T3 Gb
TÜV certification
EN ISO 13849-1

Physical Characteristics


Machine footprint
140 x 400 x 310 cm
Container capacity
500 ‒ 2500 litres
Container clamping range
Ø 80 ‒ 150 cm
Container height
85 ‒ 176 cm
Weight
4300 kg
Height adjustment
Hydraulic

Custom Options


Control panel type
CN / C / SC / PLC
Speed adjustment
Infinitely variable
Height adjustment
Hydraulic
Software
WINDISP© 7
Safety module
DISPERSAFE® TÜV Certified
Process control
Repeatable dispersion results
Speed adjustment mechanism
Rotary pulse encoder
Documentation
QA via WINDISP© 7 software
