Dynamic high-speed railway weighing system
Railway operations face challenges with overloaded or imbalanced wagons, leading to damage and safety hazards. Ensuring precise load management can mitigate these risks significantly.
Monitor and manage wagon loads accurately at high speeds.

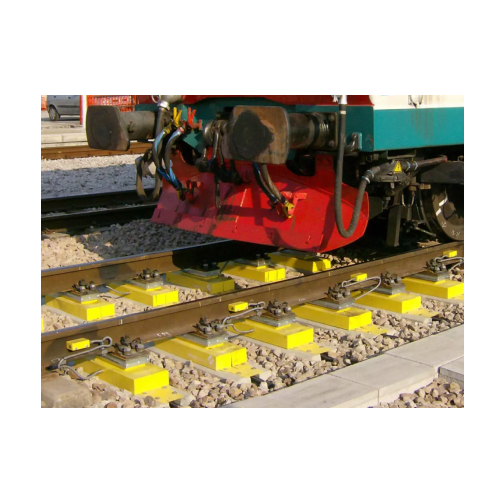

The MULTIRAIL SpeedWeight from Schenck Process is a dynamic high-speed weighing system designed to measure wheel, axle, and wagon weights across a range of speeds from 10 to 250 km/h. It features high-precision weighing sensors embedded in specially developed concrete sleepers, ensuring accurate force and torque measurements. The system identifies vehicles with critical load statuses, such as overloading or tilted loads, and provides detailed diagnostics for each wheel or wagon. Load distribution is recorded, saved, and visually displayed, facilitating better load management and reducing maintenance needs. Integrated seamlessly into the track, it processes weighing data via PC, offering real-time monitoring without interrupting train operations.
Benefits
- Prevents track damage through accurate load management
- Operates efficiently at speeds between 10 and 250 km/h
- Provides detailed diagnostics for each wheel, axle, and wagon
- Simplifies load distribution monitoring and management
- Integrates into existing railway infrastructure without gaps
