Dual shaft mixer for high viscosity products

Achieve uniform dispersions in high-viscosity processes with a dual-shaft mixer that combines precise blending, heat transfer, and shearing capabilities essential for developing consistent product textures.

Mixes and Disperses High-Viscosity Materials

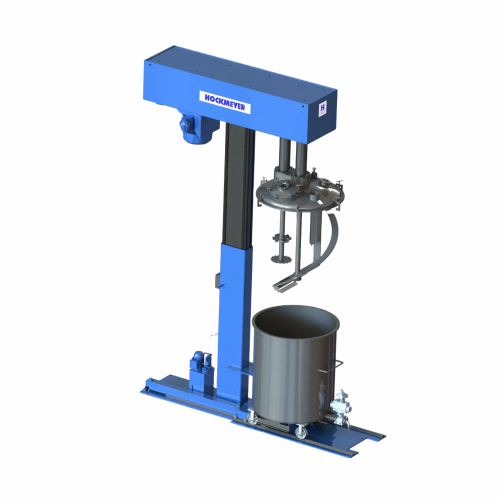

The HHL-II Dual Shaft Mixer/Disperser from Hockmeyer Equipment Corporation is engineered to tackle the challenges of mixing high-viscosity materials with precision. Featuring a dual-shaft design, it combines a center-mounted low-speed helical or anchor blade with a high-speed dispersion shaft. This setup ensures efficient blending and shearing, crucial for uniformity in products like hot melt adhesives and moisturizing creams. Ideal for operations from batch to pilot scale, it seamlessly integrates into production lines with its inverter-driven motors and options for vacuum, pressure, or atmospheric conditions.

Made from either stainless steel or carbon steel, this mixer prioritizes durability and resistance to corrosive materials. The system’s innovative scrapers enhance heat transfer while aiding in powder incorporation, contributing to energy-efficient operations. With sizes accommodating up to 3500 gallons and adaptability for hazardous environments, the HHL-II supports diverse industrial needs, including printing, sealants, and cosmetics sectors. Maintenance is straightforward, thanks to the separate shafts and robust blade design, ensuring long-term reliability and reduced downtime.

Benefits

  • Enhances product uniformity with dual-shaft mixing, crucial for high-viscosity applications.
  • Improves heat transfer and energy efficiency through patented scraper technology.
  • Facilitates maintenance with separate shafts and durable blade design, minimizing downtime.
  • Offers flexibility with customizable configurations for various operational conditions.
  • Supports safe operation in hazardous environments with compliant electrical components.

General


Applications
Sealants,Hot melt adhesives,Printing inks,Caulks,Toothpastes,Magnetic media slurry,Lotions,Creams
End products
Moisturizing creams,Anti-aging lotions,Ferrite slurry,Flexographic inks,Silicone caulks,Fluoride toothpaste,Eva hot melt adhesives,Epoxy sealants
Steps before
Ingredient Preparation,Measurement,Premixing,Component Weighing
Steps after
Quality Control,Product Packing,Storage,Labeling
Input ingredients
high viscosity ingredients,medium viscosity ingredients,powder ingredients,sealant components,ink ingredients,caulk materials,adhesive components,magnetic media slurry,cream ingredients,lotion ingredients,toothpaste ingredients
Output ingredients
homogeneous mixtures,dispersed sealants,dispersed inks,dispersed caulks,mixed adhesives,processed slurries,finished creams,blended lotions,combined toothpastes
Market info
Hockmeyer Equipment is known for manufacturing high-quality industrial mixing and dispersion equipment. They specialize in ETO solutions for industries like paints, inks, and chemicals, renowned for innovation, reliability, and superior engineering.

Technical Specifications


Mixing capacity
Laboratory units to 3500 gallons
Motor type
Inverter driven motors
Material of construction
Stainless steel or carbon steel
Blade configuration
Helical or anchor sweep low-speed blade
Operation environment
Vacuum,pressure,or atmospheric
Electrical components
Suitable for hazardous environments
Sweep blade tip speed
Varies per model
High-speed blade tip speed
4500 FPM
Model capacity (Working Gal.)
19.25 to 850-1000 gallons
Model capacity (Holding Gal.)
2 to 3190 gallons
Tank size
19.25 x 17 inches to 72 x 62 inches

Operating Characteristics


Working mechanism
Dual-shaft mixing with high-speed dispersion and low-speed blending
Integrated steps
Mixing,dispersing,and heat transfer
Batch vs. continuous operation
Batch
Heat transfer efficiency
Enhanced by patented scrapers
Powder incorporation
Assisted by low-speed helical or anchor blade
Automation level
Inverter driven motors
Configuration
Hoist or tank mounted
Operating environment
Vacuum,pressure,atmospheric,hazardous environment capable
Cleaning method
Customized based on use and configuration

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Yes (stainless steel)
Cleanability
Yes

Product type Characteristics


Heat sensitivity
Managed with scrapers

Physical Characteristics


Tank size
Laboratory units to 3500 gallons
Mounting configuration
Hoist or tank mounted
Sweep blade type
Helical or anchor
Material of construction
Stainless steel or carbon steel
Blade configuration
Dual shaft with low-speed and high-speed blades
Scraper material
Patented design

Custom Options


Blade type
Helical or anchor sweep low-speed blade,various high-speed blades available
Material of construction
Stainless steel or carbon steel
Configuration
Hoist or tank mounted
Operation type
Vacuum,pressure,or atmospheric
Motor type
Inverter driven motors
Electrical components
For hazardous environments
