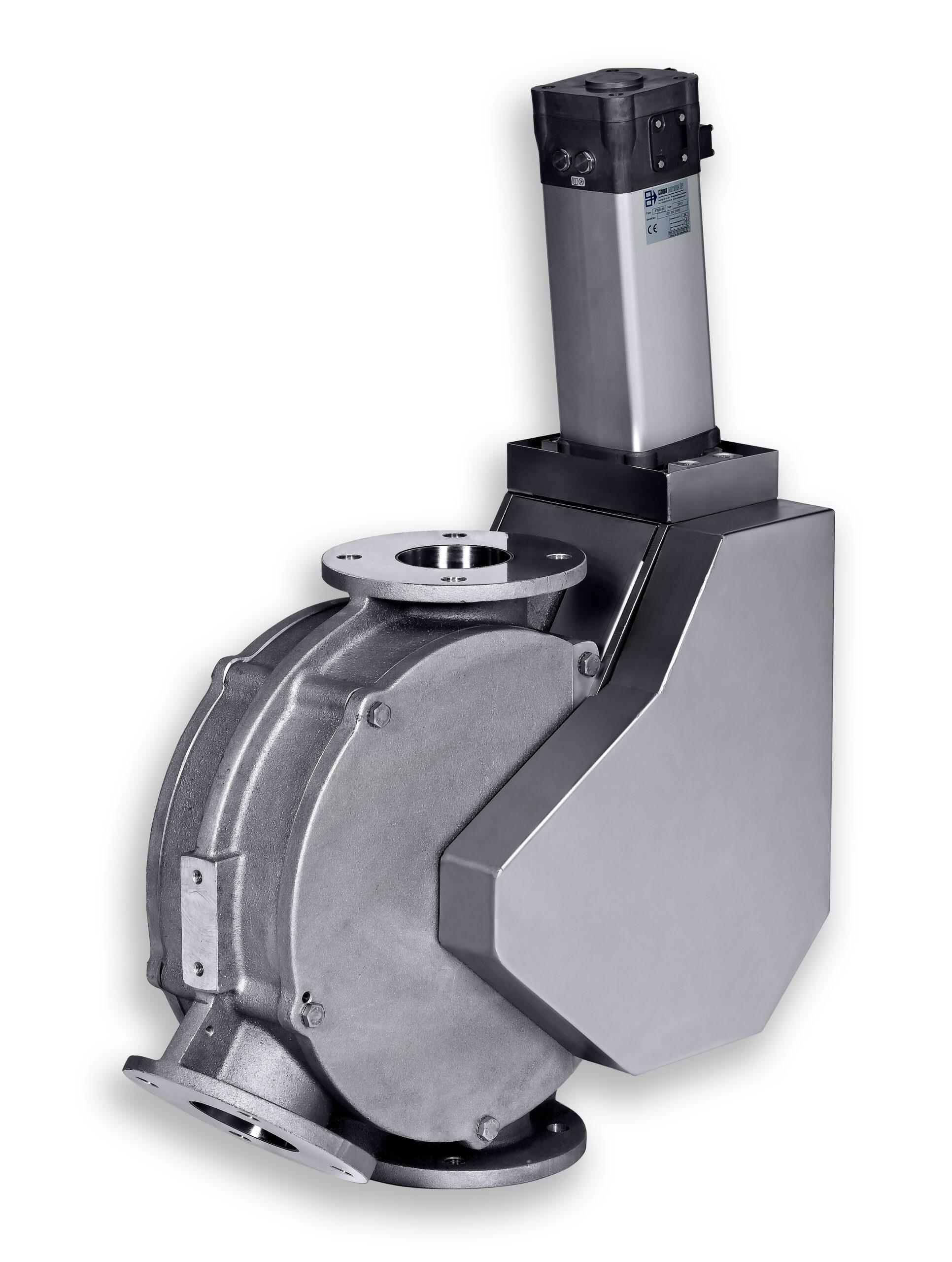

Dual channel plug diverter valve

Short switching times are often required when diverting or combining powder or granular solids in conveying handling systems.

Switch channels quickly in pneumatic and vacuum conveying lines

The dual channel diverter valve type TWD from TBMA is designed to provide the shortest possible switch over time for a maximum system pressure of 2 bar. Handling temperatures up to 120°C, the powerful pneumatic actuator is connected to plug by means of lever in this totally self-contained switching valve. With diverting angles of 35°, these valves are available in five sizes ranging from DIN50 up to DIN125.

Benefits

  • fast switching valve
  • suitable for heavy duty applications
  • divert without stopping gas stream
  • possible to use during product conveying
  • ultra safe and quick cleaning
