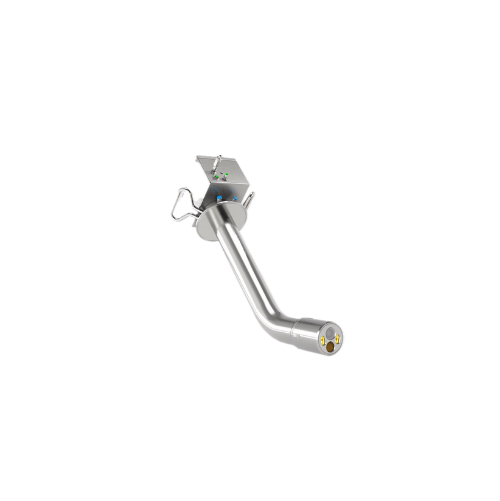

Dual camera system for spray dryer monitoring

Enhance safety and operational efficiency in your drying process by combining visual and thermal monitoring to detect potential hazards such as nozzle blockages and temperature anomalies before they escalate.

Monitors and Detects Thermal Anomalies in Spray Nozzles

The SPRAYEYE® Dual Camera by GEA integrates visual and infrared surveillance to offer comprehensive monitoring for critical drying applications such as pharmaceuticals, food, and chemicals. It utilizes a dual-camera system that combines conventional video with patented IR technology, providing detailed surveillance of spray nozzle operations. This system excels in preventing fires by detecting and highlighting temperature variations that indicate product build-up or smoldering, triggering alarms for timely intervention. Ideal for continuous and automatic operations, SPRAYEYE® enhances safety by logging data and interfacing with SCADA systems for integrated management. The equipment is designed for high temperature settings and offers reliable, low-maintenance operation, ensuring reduced operator intervention and heightened risk management. Optional configurations enable tailoring to specific process requirements, supporting a range of industries from dairy to marine additives, while meeting rigorous environmental and operational standards.

Benefits

  • Enhances operational safety by detecting hazardous temperature increases before they develop into fires.
  • Reduces operator workload with automatic and reliable thermal and visual monitoring.
  • Minimizes maintenance with a robust design ensuring long-term performance in high-temperature environments.
  • Integrates seamlessly into existing control systems for effective risk management and response.
  • Supports high-temperature operations, allowing the use of more flammable recipes with reduced risk.

General


Applications
Food,Chemicals,Personal care,Marine,Gas,Energy,Beverage,Oil,Environment,Home,Dairy,Pharmaceuticals
End products
Spray-dried milk powder,Biomass pellets,Personal care powders,Marine fuel additives,Spray-dried enzymes,Powdered pharmaceuticals,Encapsulated flavors,Dairy-based nutritional supplements,Instant coffee,Chemical granules
Steps before
Drying,Spray dispersal adjustment
Steps after
Inspection,Alarm verification
Input ingredients
Output ingredients
Market info
GEA is known for manufacturing industrial engineered-to-order equipment, specializing in technology for food processing, dairy, beverages, and pharmaceuticals, with a reputation for quality, innovation, and sustainable solutions in complex engineering projects.

Technical Specifications


Camera type
Dual (Visual + Infrared)
Heat monitoring
Continuous temperature monitoring
Alarm system
Automatic prewarning alarm for high temperatures
Automation
Automatic detection and logging of events
Monitoring technology
Patented infrared thermal surveillance
Visual monitoring
Digital visual spray nozzle monitoring
Temperature detection
Automatic detection of smoldering product build-ups
System integration
Integration with SCADA systems
Prewarning system
Highlights problems before visual detection

Operating Characteristics


Integration
Visual and thermal monitoring
Automation level
SCADA integrated
Monitoring capability
Continuous temperature and heat variation
Prewarning system
Early warning for temperature increase
Temperature detection
Automatic detection and highlighting of high temperatures
Alarm functionality
Visual and SCADA alarms for temperature thresholds

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Camera type
Dual (Visual + IR)
Integration
Conventional video + IR thermal
Sensor type
Visual and Infrared (IR)

Custom Options


Control panel type
Integrated with SCADA
Integration possibilities
GEA IR technology,SCADA systems
Visual camera integration
Conventional video stream
Thermal camera integration
Infrared (IR) camera technology
