Drum blender for closed barrels
Efficiently mix liquids and slurries inside closed drums with a specialized agitator designed for minimal opening access.
Mixes and Agitates Liquids in Sealed Barrels

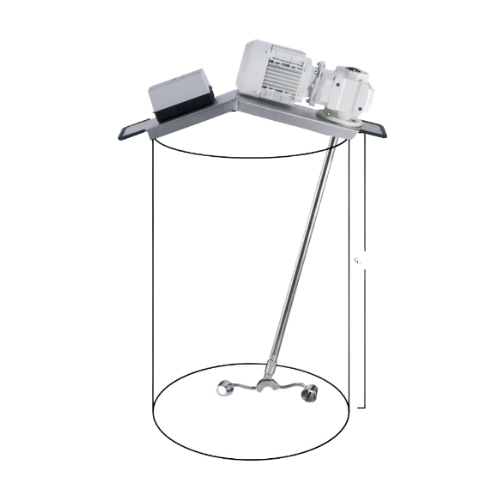

The VISCO JET VJ370 from VISCO JET Rührsysteme is a folding barrel mixer designed to tackle mixing challenges in industries like chemicals, cosmetics, and food processing. Featuring the robust MISTRAL agitator, it unfolds through a 2-inch bung opening, expanding to a 300 mm diameter for efficient and thorough agitation within sealed 200-liter barrels. Designed for versatility, it supports batch operations in ATEX Zone 1, offering commendable energy efficiency with a 0.37 kW motor. The stainless steel construction ensures corrosion resistance, and electropolished options facilitate easy cleaning. With low rotational speeds, it minimizes wear, promising long-term durability. Optional frequency inverters and ATEX configurations enhance its adaptability to individual production needs.
Benefits
- Ensures complete mixing within sealed containers, preventing quality loss from sedimentation.
- Enhances safety and compliance in hazardous environments with ATEX Zone 1 compatibility.
- Lowers operational costs through efficient energy usage and durable, low-wear components.
- Simplifies cleaning and maintenance with a corrosion-resistant stainless steel design.
- Adapts to specific production demands with customizable speed controls and configurations.
- Applications
- Chemicals,Dairy products,Coatings,Cosmetics,Food and beverages,Sweets,Paints,Petrochemicals,Soaps,Mining,Industrial production,Paper manufacturing,Pharmaceuticals
- End products
- Steps before
- Filling,Storage,Mixing Preparation
- Steps after
- Quality Control,Decanting,Transfer,Packaging
- Input ingredients
- flüssige Produkte,pastöse Produkte,flüssige Medien,pastöse Medien,chemische Produkte,industrielle Produkte
- Output ingredients
- homogenisierte Produkte,aufgerührte Produkte,verhinderter Qualitätsverlust,reduzierte Sedimentation
- Market info
- Visco Jet Ruhrsysteme is known for manufacturing advanced mixing and stirring equipment, particularly industrial agitators, which are engineered-to-order for various industries. Their expertise lies in efficient and tailored mixing solutions with a strong reputation for innovation and quality.
- Drum Volume
- 200 Liters
- Rührorgan Diameter
- 300 mm
- Antriebsleistung
- 0.37 kW
- Spannungsversorgung
- 400 V / 50 Hz
- ATEX Zone Compatibility
- Zone 1
- Rühröffnung Size
- 2-Inch
- Material
- Edelstahl 1.4301 / 1.4571 / 1.4404
- Optional Frequenzumformer
- Yes
- Optional Pressure Air Drive
- Yes
- Rührgeschwindigkeit
- Adjustable
- Automation level
- manual to semi-automated
- Batch vs. continuous operation
- Batch
- Energy efficiency
- Low due to 0.37 kW motor
- Cleaning method
- Manual
- Changeover time
- Minimal due to simple assembly
- Air incorporation control
- Achieved through gentle stirring
- Automation level
- Optional frequency converter for speed control
- Corrosive resistance (e.g. acids)
- Stainless Steel 1.4571 / 1.4404
- Cleanability
- Stainless steel finish,Ra<0.8 µm
- Density/particle size
- Applicable for liquids to pastes
- ATEX certification
- Zone 1
- EU Directives
- 2006/42/EU,2014/30/EU,2014/35/EU
- Optional ATEX certification
- RL2014/34/EU
- Machine footprint
- Compact design for drum mounting
- Container size
- 200 liters
- Entry opening size
- 2-inch bung hole
- Mixing diameter
- 300 mm
- Material
- Stainless Steel
- Traverse Design
- Angled Stainless Steel Traverse
- Control Panel Type
- VJ805 with Under-voltage Release
- Finish
- Ground or Electropolished
