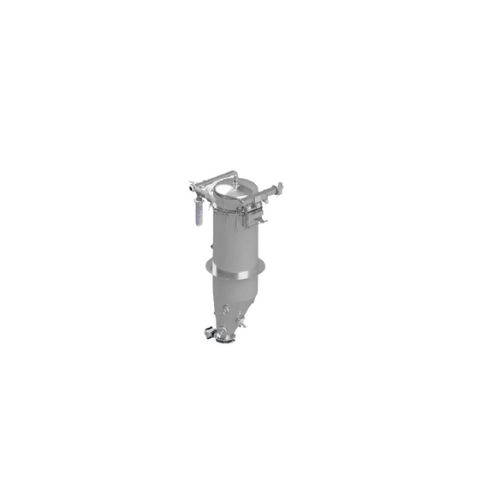

Dense phase vacuum conveying system for powder handling

Effortlessly transport delicate powders and fragile granules with precision and minimal degradation using our dense phase vacuum conveying system, ensuring seamless integration into your production line while maintaining product integrity.

Transports and Separates Powders and Granules

The Dense Phase Vacuum Conveying System from GEA efficiently handles the transportation of powders and granules for food, dairy, and pharmaceutical sectors. Utilizing high-capacity vacuum pumps, it gently conveys material at controlled low velocities to maintain the integrity of fragile and friable products, such as infant formula, protein powders, and pharmaceutical tablets. Operating in batch mode, the system adapts to medium-distance transfers, ensuring minimal degradation through feedback velocity control systems and pulsed air injection. Designed for hygienic applications, it offers stainless steel construction options for enhanced sanitation and meets industry standards for ease of cleaning, making it a versatile and reliable choice for sensitive production needs.

Benefits

  • Preserves product quality by transporting at low velocities to minimize degradation.
  • Enhances operational efficiency with batch mode processing for high-capacity material flows.
  • Supports hygiene standards with stainless steel construction options for easy cleaning.
  • Versatile application across multiple industries, including food, dairy, and pharmaceutical sectors.
  • Flexible integration with existing systems through configurable inlet and outlet networks.

General


Applications
Food,Friable aggregates,Fragile agglomerates,Dairy,Pharmaceutical
End products
Powdered milk,Protein powders,Freeze-dried fruits,Pharmaceutical tablets,Infant formula,Granular supplements,Flavored drink powders,Encapsulated food additives,Powdered pharmaceuticals,Baking mix powders,Instant coffee
Steps before
Purification,Drying,Grinding
Steps after
Packing,Sterilization
Input ingredients
powder,fragile agglomerates,friable materials
Output ingredients
conveyed product,vacuum hopper discharge
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Convey Rates
< 20 tonnes/h
Convey Distances
up to 100 m
Operating Pressure
<99% vacuum
Air mover type
vacuum pump (dry vane,oil or water sealed)
Batch operation
Yes
Air Ratios
medium
Product discharge
Controlled low velocity
System type
Dense phase vacuum conveying
Material handling
Fluidized state
Additional options
Feedback velocity control,pulsed air injection,twin receiving vessels
Construction material
Stainless steel for sanitation/corrosion resistance
Demountable designs
Polished designs to USDA 3A standards
Multiple networks
Inlet/outlet for maximum flexibility

Operating Characteristics


Working mechanism
Dense phase vacuum
Integrated steps
Conveying,separation,discharge
Batch vs. continuous operation
Batch
Vacuum isolation
Yes
Product fluidization
Controlled low velocity,fluidized state
Automation level
PLC,valves and sensors controlled
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Compatibility
Food,dairy,pharmaceutical

Physical Characteristics


Discharge method
Vacuum isolation valve
Feed method
From feed hopper or silo
Material of construction
Stainless steel
Shape
Pipeline system

Custom Options


Construction Material
Stainless steel
Design Standards
USDA 3A Standards
Receiving Vessel Type
Twin vessels for continuous conveying
Discharge Method
Vacuum hopper with discharge valve
Air Injection Method
Pulsed air for product flow control
Feedback Control System
Velocity and product degradation control
Inlet/Outlet Network Configuration
Multiple for flexibility
