Customizable self-stacking solution for spiral freezers

Enhance your freezing process with a customizable self-stacking solution designed to increase productivity and minimize downtime in your spiral freezers, offering long-term durability and flexibility without system overhauls.

Enhances Freezing and Stacking Efficiency

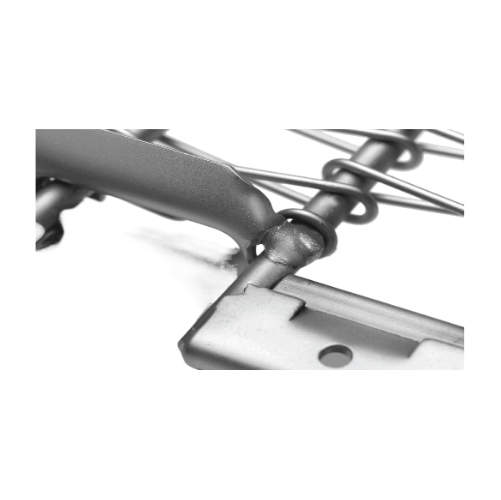

The GEA Q-belt from GEA is a robust and reliable self-stacking freezer belt system designed to enhance freezing and stacking efficiency across food processing lines. Its unique interlocking design minimizes friction and wear, significantly extending belt life and reducing maintenance costs. Ideal for applications involving frozen pizzas, ice cream, or chicken nuggets, this system provides flexible solutions compatible with all existing self-stacking freezers and OEM drive systems. Suitable for handling a variety of solid products, the Q-belt integrates seamless automation with a tensionless return design, reducing unplanned stoppages and improving overall production flow. Backed by GEA’s turnkey service, it includes on-site inspections, installation, commissioning support, and ongoing maintenance, ensuring optimal performance from day one, while its hygienic design facilitates easy cleaning, boosting productivity in compliant environments.

Benefits

  • Extends operational lifespan, reducing replacement frequency and maintenance costs.
  • Enhances productivity by minimizing friction and wear through stable interlocking.
  • Facilitates seamless integration with existing systems, ensuring uninterrupted workflow.
  • Lowers downtime due to advanced belt return design and reduced stoppage.
  • Supports comprehensive service solutions, ensuring ongoing optimal performance.

General


Applications
Meat products,Seafood,Frozen foods,Packaged foods,Bakery products,Dairy products
End products
Chicken nuggets,Canned soups,Bread rolls,Frozen fish fillets,Frozen pizzas,Ice cream
Steps before
Freezer Performance Pre-Inspection,Baseline Performance Analysis
Steps after
Installation and Commissioning,Regular Maintenance Services,Ongoing Customer Support
Input ingredients
Output ingredients
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Self-Stacking Capability
Yes
Belt Stability
High
Durability
Long-term
Belt Widths
Customizable
Tier Heights
Customizable
Mesh Patterns
Customizable
Compatible with OEM Systems
Yes
Collapsing Belt Take-up Design
Yes
Belt Return System
Tensionless
De-stack Risk
Reduced
Friction and Wear-and-Tear
Minimized
Service Concept
Turnkey
Cleaning Design
Hygienic
Belt Life
Extended
Maintenance Costs
Low
Installation and Commissioning
Available

Operating Characteristics


Self-stacking mechanism
Interlocking design
Customization options
Widths,tier heights,mesh patterns
Belt return system
Collapsing belt take-up (CBTU)
Automation level
Turnkey service concept
Cleaning method
Hygienic and easy-clean design
Operation compatibility
Compatible with all OEM drive systems
Service concept
Installation and commissioning services
Flexibility
Compatible with all existing self-stacking freezers
Maintenance characteristics
Low maintenance costs
Performance analysis
Baseline performance analysis offered

Material Compatibility


Abrasion resistance
High abrasion resistance reduces friction and wear-and-tear
Cleanability
Hygienic and easy-clean design
Corrosive resistance (e.g. acids)
Durable against corrosive environments
Density/particle size
Compatible with varying density materials

Physical Characteristics


Footprint
Compact
Belt width options
Several widths available
Tier height options
Customizable
Mesh patterns
Customizable
Interlocking design
Patented
Material
Durable,robust
Design feature
Stable,tensionless CBTU
Self-stacking capability
Yes

Custom Options


Tier height options
Several tier heights available
Width options
Several widths available
Mesh pattern options
Customizable mesh patterns
Compatibility with OEM drive systems
Compatible with all
Section replacement flexibility
Replace one section or entire belt
