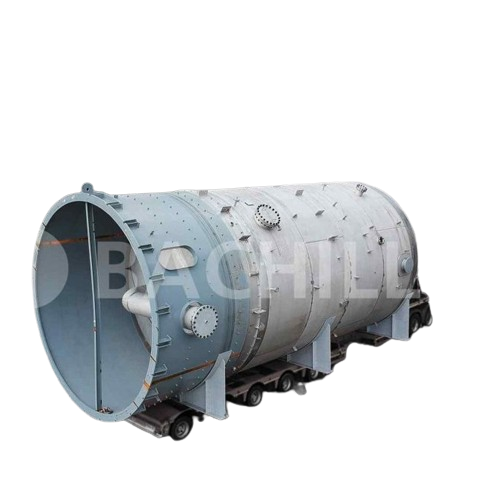

Custom pressure vessels and tanks
For industries demanding precise storage and processing, our tailor-made pressure vessels and tanks offer high customization, efficiently managing temperature fluctuations and pressure cycles to ensure product integrity and operational safety.
Stores, Heats, Cools, and Mixes Industrial Fluids
Bachiller offers custom-engineered Pressure Vessels and Tanks, designed to meet stringent industry requirements across chemical, pharmaceutical, petrochemical, and food sectors. These vessels excel in versatility, accommodating manufacturing, storage, heating, cooling, and mixing processes. They are built to handle diverse product types including liquids, gases, and slurries, customizing from volume up to 300,000L and weights up to 130 tons. Crafted from a variety of materials such as austenitic and superduplex stainless steels, they ensure corrosion resistance and durability. Integration is seamless with options for PLC control, and they feature energy-efficient heating/cooling systems using double jackets and coils. Fully compliant with ASME, EN-13445, and relevant standards, they support CIP systems ensuring easy maintenance and cleanliness, vital for batch and continuous operations. Additional customization is available in dimensions, insulation, and agitation to suit specific production requirements.
Benefits
- Enhances operational efficiency with adaptable storage and process capabilities.
- Minimizes energy usage with advanced thermal control systems.
- Ensures long-term durability and chemical resistance through high-grade material selection.
- Facilitates easy maintenance with integrated clean-in-place systems.
- Customizable to exact specifications, optimizing plant compatibility.
- Applications
- Food,Fine chemicals,Bioethanol,Energy,Agrochemicals,Paint,Water treatment,Refining,Cosmetics,Pulp and paper,Chemical,Petrochemicals,Plastics,Pharmaceutics,Biodiesel,Recycling
- End products
- Face creams,Engine oils,Bioethanol fuel,Processed cheese,Gasoline additives,Industrial solvents,Tomato paste,Acrylic paints,Recycled plastics,Lubricant oils,Insecticides,Biodiesel fuel,Synthetic rubber,Coated paper,Polyethylene sheets,Specialty chemicals,Antihistamine tablets,Industrial water treatment chemicals,Polyurethane coatings,Beverage syrups,Pvc pipes,Antibacterial soap,Fertilizers,Cardboard,Desalination chemicals,Silicone sealants,Shampoo,Cleaning agents
- Steps before
- Material Preparation,Purification,Grinding,Emulsification
- Steps after
- Sterilization,Packing,Coating,Quality Testing
- Input ingredients
- agrochemicals,biodiesel,bioethanol,chemicals,cosmetics,fine chemicals,food materials,paint,petrochemicals,pharmaceuticals,plastics,pulp and paper materials,recycling materials,refining materials,water treatment substances
- Output ingredients
- processed agrochemicals,biodiesel products,bioethanol products,processed chemicals,cosmetic products,fine chemical compounds,food products,processed paints,petrochemical products,pharmaceutical products,plastic products,processed pulp and paper,recycled materials,refined products,treated water
- Market info
- Bachiller specializes in industrial engineered-to-order equipment, known for high-quality process equipment in the chemical, petrochemical, pharmaceutical, and food industries. They are recognized for their expertise in designing and manufacturing pressure vessels, reactors, and mixing equipment.
- Volume
- Up to 300,000 L
- Weight
- Up to 130 Ton
- Diameter
- From 200 mm to 7,500 mm
- Maximum Height
- Up to 50,000 mm
- Wall Thickness
- From 3 mm to 50 mm
- Agitator Types
- Axial flow,radial or combined double flow
- Internal Surface Roughness
- Ra < 1.2 μ to Ra < 0.2 μ
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Batch / Inline Continuous
- CIP/SIP
- CIP 121°C / SIP 135°C
- Cleaning method
- CIP / Manual
- Energy efficiency
- 0.5–2 kWh/kg moisture
- Changeover time
- 0
- Air incorporation control
- 0
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Volume capacity
- up to 300,000 L
- Weight capacity
- up to 130 Ton
- Diameter range
- 200 mm to 7,500 mm
- Height
- up to 50,000 mm
- Wall thickness
- 3 mm to 50 mm
- Shape
- Vertical and horizontal
- Support method
- Brackets,skirts,support rings
- Internal finish
- Mechanical polished Ra<1.2 μ to Ra<0.2 μ,electro polished
- Thermal insulation
- Stainless steel welded cover
- Agitator options
- Axial flow,radial,combined double flow
- Heating/Cooling options
- Double jacket,half coils,dimple jacket,internal coils,heated/cooled baffles
- Ladders/Platforms
- Available
- Volume customization
- Up to 300,000L
- Weight capacity customization
- Up to 130 Ton
- Diameter customization
- 200 mm to 7,500 mm
- Height customization
- Up to 50,000 mm
- Wall thickness customization
- 3 mm to 50 mm
- Heating/Cooling options
- Double jacket,half coils,dimple jacket
- Support options
- Brackets,skirts,support rings
- Internal surface finish
- Ra< 1.2 μ to Ra< 0.2 μ,electro polished
- Agitator types
- Axial flow,radial,combined double flow
- ATEX execution
- Zone 0/20 certified
