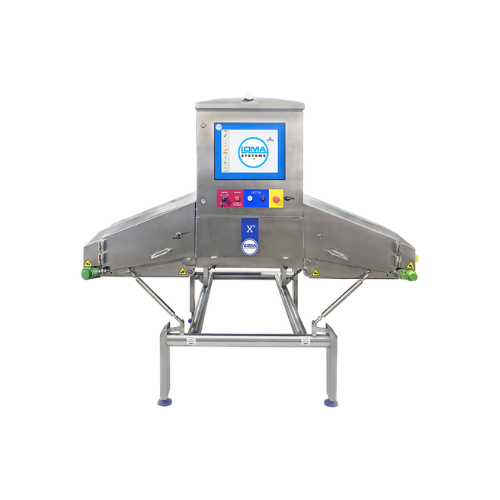

Curtainless x-ray inspection for small lightweight packaged food products

Eliminate product damage and false rejects with innovative curtainless x-ray technology, ensuring uninterrupted inspection of lightweight, unsealed food products, from chocolate bars to granola bars.

Detects and Inspects Contaminants in Flowing Products

The X5 Pack Curtainless from Loma Systems is designed to integrate seamlessly into food and pharmaceutical production lines, providing reliable contaminant detection with no need for product handling curtains. Its inclined conveyor system maintains product integrity and supports multi-lane or bulk product flow, ideal for items like chocolate bars, granola bars, and vitamin supplements. Employing advanced digital algorithms, it enhances detection across a spectrum of contaminants like metal, bone, and glass. Operating continuously at high speed, it accommodates line speeds of 10 to 50 m/min and ensures safety with robust shielding, containing X-ray leakage to less than 1 μSv/h. The system’s construction in 304 brushed stainless steel ensures durability, while its design follows Loma’s “Designed to Survive” philosophy, offering customizable configurations for specific operational needs. With PLC control and simple integration via Ethernet or USB, the X5 Pack Curtainless provides high throughput efficiencies and maintains ease of cleaning and maintenance, aligning with industry compliance standards.

Benefits

  • Enhances product quality by minimizing false rejects without the need for handling curtains.
  • Maintains high production flow rates with uninterrupted multi-lane processing.
  • Protects operators and products with robust X-ray safety measures.
  • Simplifies product changeovers with intuitive setup and automatic learning capabilities.
  • Ensures consistent detection performance across a variety of contaminants and packaging types.

General


Applications
Grains,Convenience foods,Snacks,Confectionery,Bakery,Cereals,Dried foods,Nutraceutical,Food-to-go,Pharmaceutical
End products
Puffed rice,Granola bars,Sandwiches,Oatmeal packets,Vitamin supplements,Potato chips,Chocolate bars,Ready-to-eat meals,Protein shakes
Steps before
Sorting,Drying,Unsealing
Steps after
Packing,Labeling
Input ingredients
small packaged food products,lightweight packaged food products,unsealed food products,dry unpackaged food products,confectionery,snack foods,bakery,convenience food,food-to-go,dried foods,cereals,grains,pharmaceutical,nutraceutical
Output ingredients
inspected small packaged food products,inspected lightweight packaged food products,inspected unsealed food products,inspected dry unpackaged food products,inspected confectionery,inspected snack foods,inspected bakery,inspected convenience food,inspected food-to-go,inspected dried foods,inspected cereals,inspected grains,inspected pharmaceutical,inspected nutraceutical
Market info
Loma is known for manufacturing industrial inspection equipment, specializing in metal detection, checkweighing, and X-ray inspection systems, widely used in the food, pharmaceutical, and packaging industries for quality control and ensuring product safety and compliance.

Technical Specifications


System Length
2000 - 3600 mm,depending on configuration
Line Height Option
750 | 800 | 850 | 900 | 950 | 1000 | 1050 (+/- 50mm adjustment)
X-Ray Output
210W (60kV 3.5 mA)
IP Rating
IP66
Belt Width
600mm
Weight on Belt
Up to 30kg
Speed Range
10 - 50 m/min
Supply Voltages
85 to 265 V,single phase 50/60Hz,neutral,Earth
Cooling
Vortex or AC Air Conditioning
Operating Environment (Standard)
2 to 10°C with cabinet warm up,10 to 25°C with Vortex
Operating Environment (Optional)
25°C to 35°C AC Air conditioning (Cabinet reduced to NEMA 4x with AC Option)
X-Ray Safety
Leakage less than 1 μSv/h
Detection Algorithms
15 Multilayers Algorithms combined in any combinations

Operating Characteristics


Working mechanism
Inclined (up/down) conveyor
Automation level
Automatic product learn wizard
Batch vs. continuous operation
Inline Continuous
Product handling
Curtainless,untouched product flow
Integrated steps
Automatic reject system

Material Compatibility


Abrasion resistance
High
Biological compatibility
Suitable for food products
Cleanability
Easy to clean stainless steel
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
Varies with product type

Physical Characteristics


Machine footprint
System Length
Line Height Option
750 | 800 | 850 | 900 | 950 | 1000 | 1050 (+/- 50mm adjustment)
Belt Width
600 mm
Weight on Belt
Up to 30 kg
Control panel type
PC with Ethernet and front access USB port

Custom Options


Incline conveyor design
Up/Down Conveyor
Control panel/PC integration
PC with Ethernet and USB port
Protective setup
Pass key protective setup
Product Handling Configuration
Multi-lane or Bulk Flow
Safety Measures
Protective Shields
Cooling Options
Vortex or AC Air Conditioning
