Craft brewhouse for medium to large breweries

Achieve unparalleled brewing flexibility and efficiency with a brewhouse that fits seamlessly into existing production lines, enabling craft brewers to expand their beverage range while ensuring rapid brewing cycles and eco-friendly operations.

Brews Diverse Beer Styles Efficiently

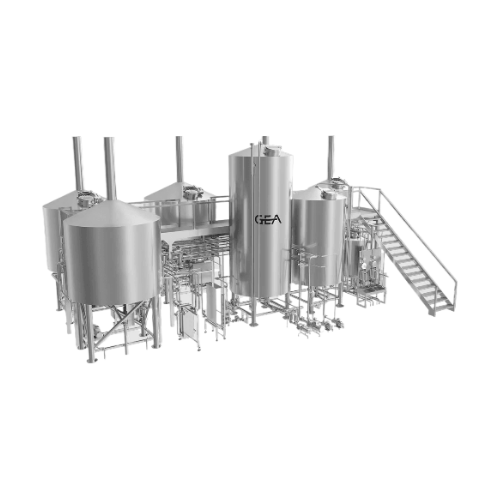

The GEA COMPACT-STAR® Craft Brewhouse is an adaptable solution for medium to large craft breweries, engineered to streamline brewing processes while offering versatility in beer production. It integrates pre-assembled modules for quick setup and emphasizes efficient brewing cycles with up to 12 brews in 24 hours. Featuring an automated GEARBOXX® system, it ensures precise process control and remote monitoring, reducing energy consumption through GEA JETSTAR® two-phase boiling technology. Suitable for producing a variety of beer styles, this brewhouse processes up to 115 hectoliters per batch with high extract yields of up to 98% in the lauter tun. Constructed from stainless steel, it accommodates various vessel configurations and includes options like wet milling via GEA MILLSTAR®, enhancing lautering efficiency. Compliance with safety standards and a comprehensive range of functional add-ons further enhance its operational reliability and production flexibility.

Benefits

  • Enhances brewing capacity with up to 12 brews in a single shift.
  • Saves energy via eco-friendly wort production with low evaporation rates.
  • Versatile beer styles production with customizable vessel configurations.
  • Reduces installation time with pre-assembled, easily expandable modules.
  • Minimizes manual intervention through fully automated process control.

General


Applications
Beverages,Craft beer,Craft brewing equipment,Brewery production,Brewing solutions
End products
Pilsner,Belgian ale,Lager,Amber ale,Pale ale,Stout,Hefeweizen,Kolsch,Saison,Double ipa,Bock,Wheat beer,Imperial stout,India pale ale (ipa),Porter
Steps before
Milling,Mashing,Grist Hydration
Steps after
Wort Cooling,Wort Aeration,Fermentation
Input ingredients
grist,mash,water,hops,adjuncts,wort
Output ingredients
wort,spent grains,trub,beer
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Capacity
40–115 hl (35–100 US bbl)
Brewing cycle
2-hour
Extract yield
up to 98%
Number of brews per day
Up to 12 brews within 24 hours
Vessel configuration
2-,3-,4- and 5-vessel options
Mashing regimes
Compatible with infusion and decoction
Material
Stainless steel (polished or matte finish)
Wort production technology
GEA JETSTAR two-phase boiling

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Abrasion resistance
Suitable for high abrasion environments
Biological compatibility
Food grade stainless steel
Cleanability
Designed for CIP (Clean-In-Place)
Corrosive resistance (e.g. acids)
High resistance due to stainless steel construction
Density/particle size
Compatible with various densities and particle sizes

Physical Characteristics


Machine footprint
Compact
Tank design
Stainless steel
Vessel modules
Freely positioned
Brewhouse configuration
2-,3-,4-,or 5-vessel
Brewhouse design flexibility
Fully flexible
Construction material
Stainless steel (polished or matte finish)

Custom Options


Control panel type
Fully automated with GEARBOXX®
Configuration options
2-,3-,4-,and 5-vessel brewhouse
HMI type
Process visualization and remote support
Vessel customization
Customized,optional vessel combinations
Material Finish
Polished or matte stainless steel
Add-ons
Weak wort tank,vapor condenser,energy storage system
Expansion capability
Smart expansion concept for future growth
