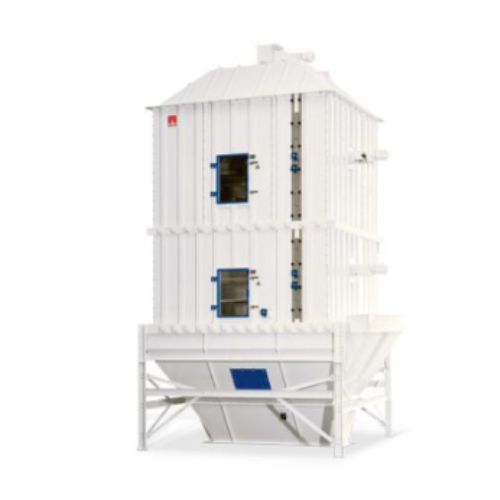

Counterflow pellet coolers

Optimize temperature control and enhance product integrity in your feed production line with precise and efficient cooling technology, designed to handle high-speed operations for granular and powdered products.

Cools and Conditions Pellets and Extrudates

The OM Series Counterflow Pellet Coolers from Ottevanger Milling Engineers offer robust and efficient cooling for a variety of feed and processing applications. Designed for high-speed, continuous operation, these coolers efficiently reduce the temperature of pellets and extrudates by utilizing a counterflow air movement system. This system cools products on their journey from the pellet mill to the discharge hopper, preventing thermal shock and preserving pellet integrity. Commonly used in aqua feed, pet food, and oilseed processing, these coolers handle capacities up to 30 tons per hour. Integrated seamlessly into existing lines, their PLC control provides intuitive operation. Constructed from durable materials, they offer long-term operational reliability, with customizable discharge systems to fit specific needs.

Benefits

  • Maintains product quality by preventing temperature shock during cooling.
  • Enhances operational efficiency with continuous, high-speed processing.
  • Minimizes energy usage through optimized air flow counter-current system.
  • Adaptable design accommodates various feed and processing environments.
  • Streamlines maintenance with durable construction and easy access components.

General


Applications
Pet food,Oilseed processing,Soybean processing,Aqua feed,Concentrates,Premix,Compound feed
End products
Dog biscuits,Canola oil,Sunflower oil,Chicken feed,Shrimp feed,Mineral concentrates,Fish pellets,Soy protein concentrate,Cattle feed,Cat kibble,Soybean meal,Vitamin premix
Steps before
Pelleting,Extrusion
Steps after
Crumbling,Sieving,Coating
Input ingredients
pellets,extrudates,granular products,meal
Output ingredients
cooled pellets,cooled extrudates,near ambient temperature pellets
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Cooling area
2.04–11.0 m²
Capacity
Up to 30 t/h
Weight
1200–5000 kg
Cooling method
Counterflow
Discharge systems
Special options available

Operating Characteristics


Working mechanism
Counterflow cooling
Cooling efficiency
Prevents temperature shock
Cooling process flow
Counterflow with air
Pellet temperature
Cooled to near ambient
System adaptability
Available in 8 sizes
Capacity
Up to 30 t/h

Material Compatibility


Abrasion resistance
High
Cleanability
Easy to clean
Biological compatibility
Food-grade materials
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
Granular / Pellet

Physical Characteristics


Cooling area
2.04–11.03 m²
Capacity
Up to 30 t/h
Weight
1200–5000 kg
Discharge method
Special discharge systems available

Custom Options


Cooling capacity
Up to 30 t/h
Size Variability
8 sizes available
Discharge System
Special discharge systems available
Counterflow Cooling Configuration
Gradual cooling system
