Cosmetic jar filling solution

Reduce product contamination and ensure precise filling with an intermittent jar filling solution, ideal for handling creamy liquids in personal care and cosmetic production lines.

Fills and Packs Creamy Products in Jars/Bottles

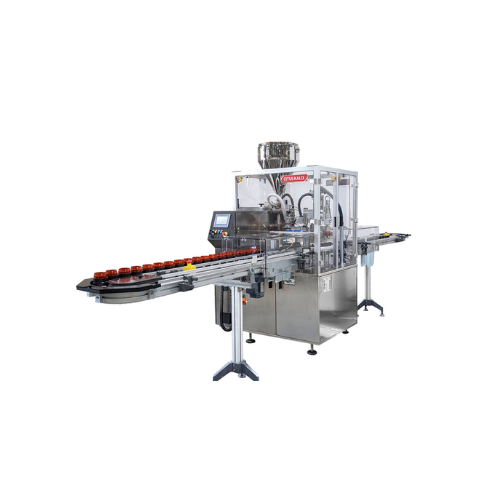

The KJ503 from Citus Kalix is a reliable solution for cosmetics and personal care producers seeking efficient jar and bottle filling of creamy products. Designed with flexibility in mind, this machine operates on an intermittent filling process, capable of handling up to 40 containers per minute. Its simple mechanical design minimizes maintenance needs, ensuring consistent operation. The KJ503 excels in versatility, accommodating various fill volumes—from 2 ml to 400 ml—making it ideal for applications such as face creams, shaving foams, and sunscreens. Integration into existing production lines is seamless, with manual loading on conveyors and compatibility with both glass and plastic packaging. The KJ503 complies with stringent safety standards, including 2014/30/UE, 2006/42/EC, and 2014/35/UE, guaranteeing adherence to industrial safety regulations.

Benefits

  • Enhances production efficiency by handling up to 40 jars or bottles per minute.
  • Minimizes maintenance with a straightforward design and robust components.
  • Provides operational flexibility with quick product and size changeovers.
  • Conforms to strict safety standards, ensuring compliance and safe operation.
  • Adapts to diverse packaging needs with compatibility for glass and plastic containers.

General


Applications
Personal care,Hair care,Sun care,Men's shaving,Cosmetics,Skin
End products
Hair gel,Sunscreen lotion,Shaving foam,Face cream,Moisturizing lotion
Steps before
Mixing,Blending,Emulsification
Steps after
Labeling,Capping,Packing
Input ingredients
creamy products,jars,bottles
Output ingredients
filled jars,filled bottles
Market info
Citus-Kalix, part of the Coesia Group, is known for its expertise in designing and manufacturing high-performance packaging equipment, particularly for the cosmetics and pharmaceutical industries, providing innovative, engineered-to-order solutions with a strong focus on quality and precision.

Technical Specifications


Machine depth
945 mm
Machine height
1750 mm
Machine length
1315 mm
Machine weight
900 kg
Max filling volume
400 ml
Min filling volume
2 ml
Operating mode
Intermittent
Product changeover
5 min
Size changeover
15 - 20 min
Max pack height
140 mm
Min pack height
50 mm
Max pack width
105 mm
Min pack width
1 mm
Packaging material
Glass / Plastic
Packaging type
Jar
Safety Regulations
2014/30/UE,2006/42/EC,2014/35/UE
Speed
40 jars or bottles per minute

Operating Characteristics


Operating mode
Intermittent
Product changeover time
5 min
Size changeover time
15 - 20 min
Manual loading
Yes
Filling speed
40 ppm

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity
Creamy products
Container type
Jars / Bottles
Container size
2 ml – 400 ml
Packaging material
Glass / Plastic


Safety Regulations
2014/30/UE,2006/42/EC,2014/35/UE

Physical Characteristics


Machine depth
945 mm
Machine height
1750 mm
Machine length
1315 mm
Machine weight
900 kg
Max filling volume
400 ml
Min filling volume
2 ml

Custom Options


Integration possibilities
Adaptable configurations
Operating mode
Intermittent
Discharge method
Manual loading on conveyor
Filling speed
Up to 40 jars or bottles per minute
